Satori Textreme MR13TX-4 5" Midrange- 4 ohm

Satori MR13TX-4 5" Textreme Carbon Fiber Cone Midrange- 132mm- 4 ohm
Advanced TeXtreme® cone

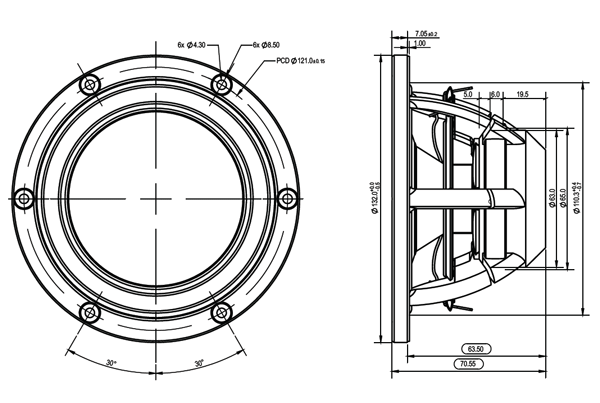

Spec Sheet PDF

"M" Midrange version

High performance 5" midrange featuring new state-of-the-art TeXtreme® thin-ply carbon fiber cone. This ultra-lightweight and highly rigid cone material provides a new level of transparency and detail.

We simulated this midrange in 2.8 liters sealed (171 cubic inches - +/- 25% volume) for F3 130Hz. We don't recommend bass reflex, but we also tried it in a tiny ported box 3 liters vented (183 cubic inches) with a 1” vent by 5” long for F3 85Hz

"The MR13TX-4 is an exciting new product from the SB Acoustic Satori line up. The driver exhibits a very flat frequency response which indicates excellent time domain performance."- DIYAudio

• Advanced TeXtreme® cone
• Vented aerodynamic cast aluminum chassis
• Inverted soft low damping rubber surround
• Advanced BIMAX spider
• Powerful optimized low distortion neodymium motor system
• Extended copper sleeve on pole piece
• Non-conducting fiberglass voice coil former
• Vented pole piece and voice coil
• Light weight CCAW voice coil
• Long life silver lead wires

DIYAudio Test Results
