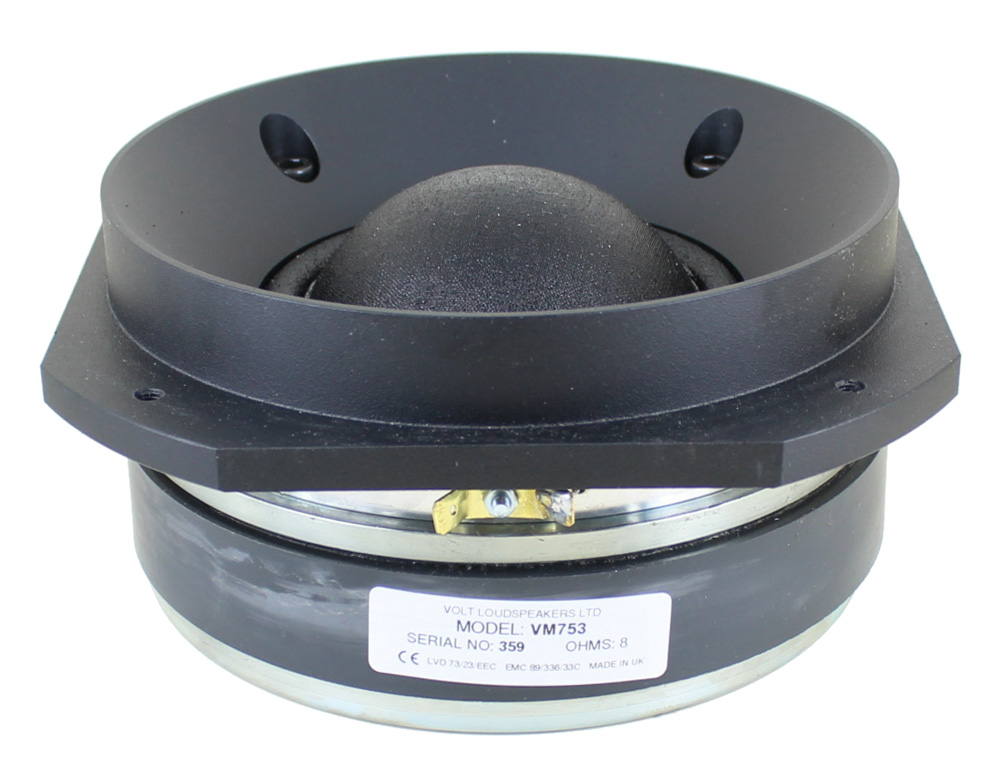

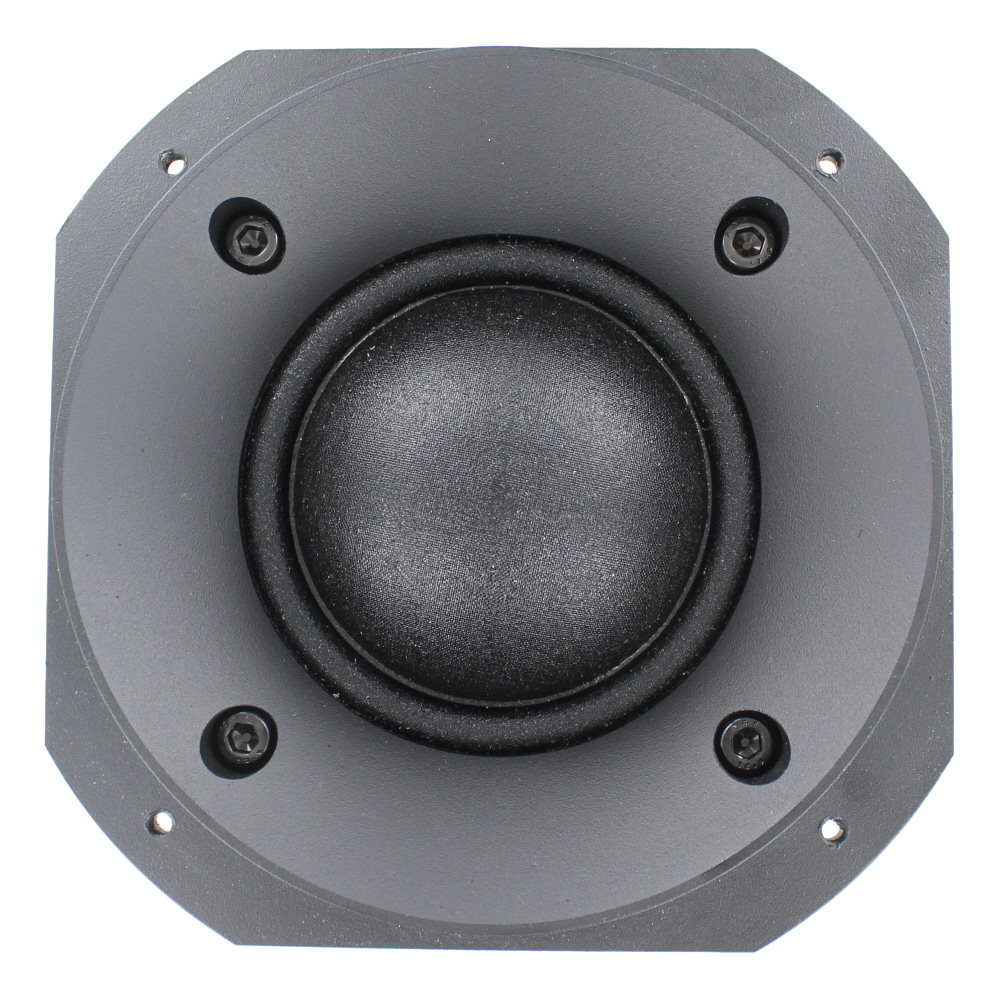

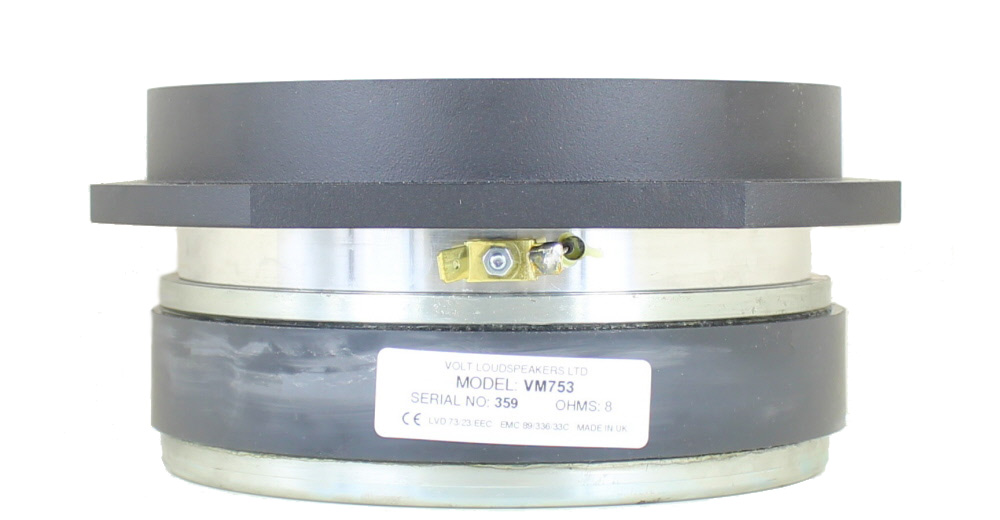

Volt VM753E 3" Dome Midrange- Horn Loaded- 8 ohm

Manufacturer: Volt Loudspeakers

Be the first to review this product

Product ID: Volt VM753E

$580.30

Product is out of stock

Add to wish list E-mail to a friend

Overview

Volt VM753E 3" Dome Midrange- Horn Loaded- 164mm- 8 ohm -massive 155mm Magnet

No longer carrying Volt

https://voltloudspeakers.co.uk/now-in-the-usa/

Volt VM753E 3" Dome Midrange- Horn Loaded- 164mm- 8 ohm -massive 155mm Magnet

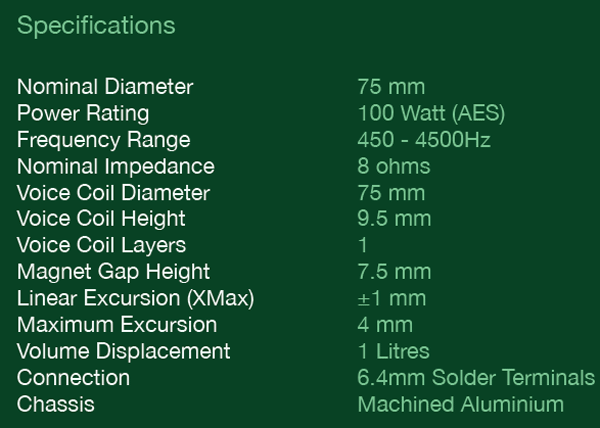

100 Watt (AES)

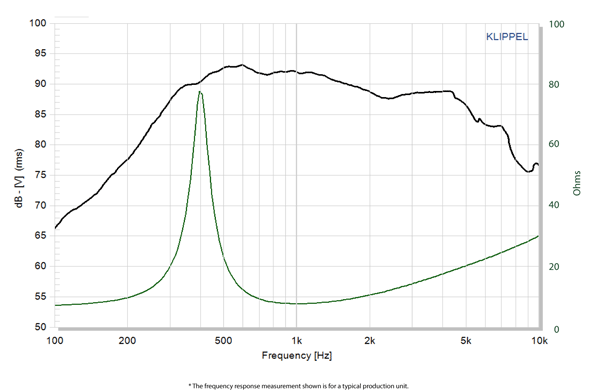

Smooth Frequency Respomse
FEA Designed Magnet System
75mm Coated Fabric Dome
Net Weight: 6 Kgs
Wide Dispersion

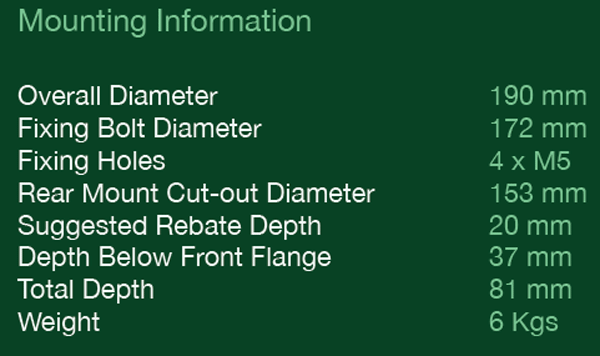

Madisound is excited to introduce Volt Technology Drivers, now available directly on our site! Immerse yourself in the sweet spot of the audio spectrum where our soft midrange domes deliver astonishing clarity and naturalness. Designed for use as midrange in studio monitors or home high-fidelity. The unit is intended for rear mounting, M5 threaded inserts are incorporated in the flange for fixing screws.

Datasheet PDF

The VM753E is a 8 ohm version 3” (75mm) diameter dome unit loaded by a short, front mounted horn. It uses a lightweight single layer, round wire copper coil slightly longer than the focused magnet gap to allow for high excursions at the lower end of its operating range. The dome and surround are critically doped for smoothness and consistency of response, a second, rear surround maintains coil stability.

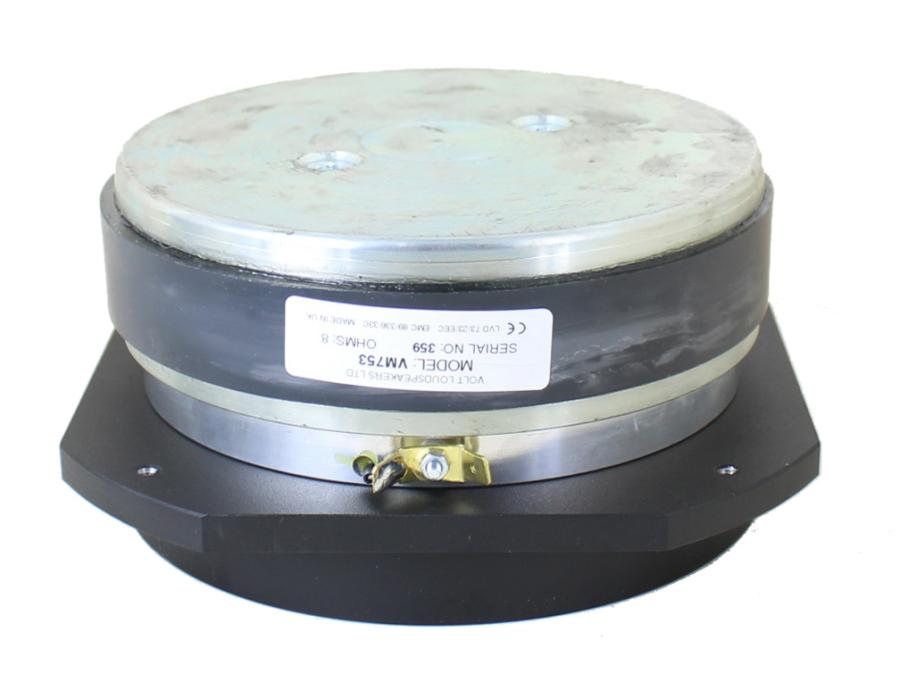

An FEA designed magnet system uses a 155mm ceramic magnet for high efficiency and is solidly fixed to a painted, aluminium chassis. The termination braids are hidden inside the unit and are not visible, connection is by 6.4mm (0.25") spade terminals allowing soldering or push on receptacles. The entire dome/coil assembly is built onto a replaceable ring that accurately self locates so allowing easy field replacement. The unit is intended for rear mounting, M5 threaded inserts are incorporated in the flange for fixing screws.
