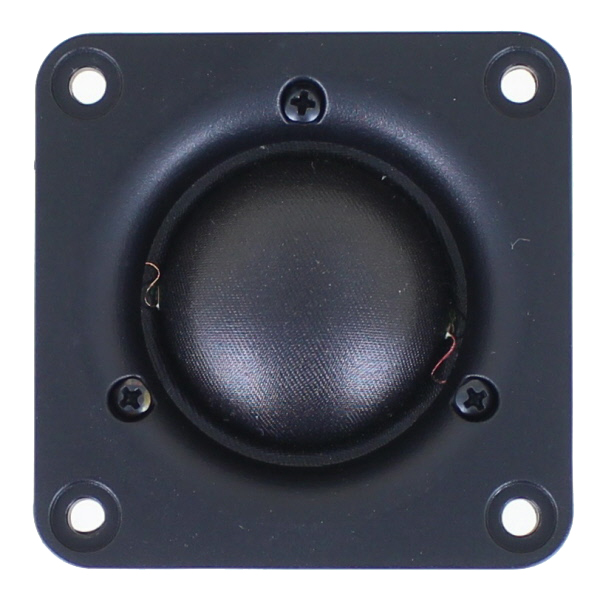

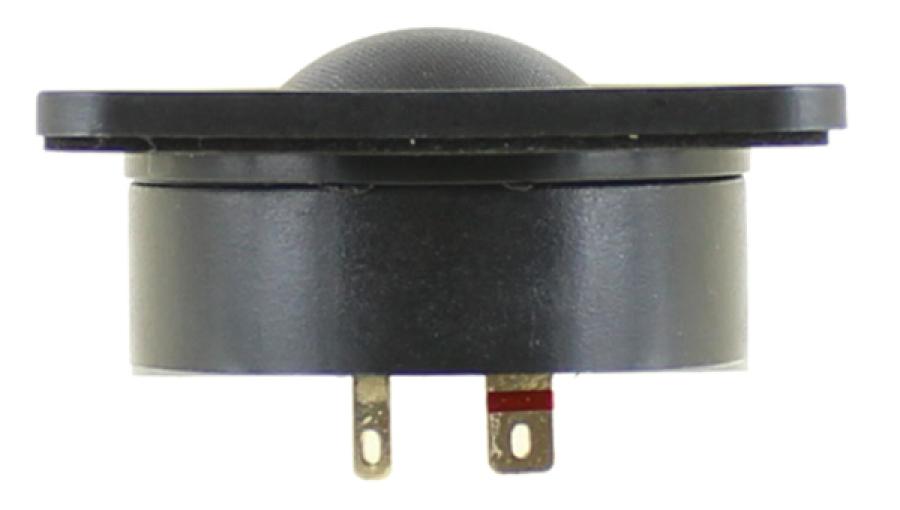

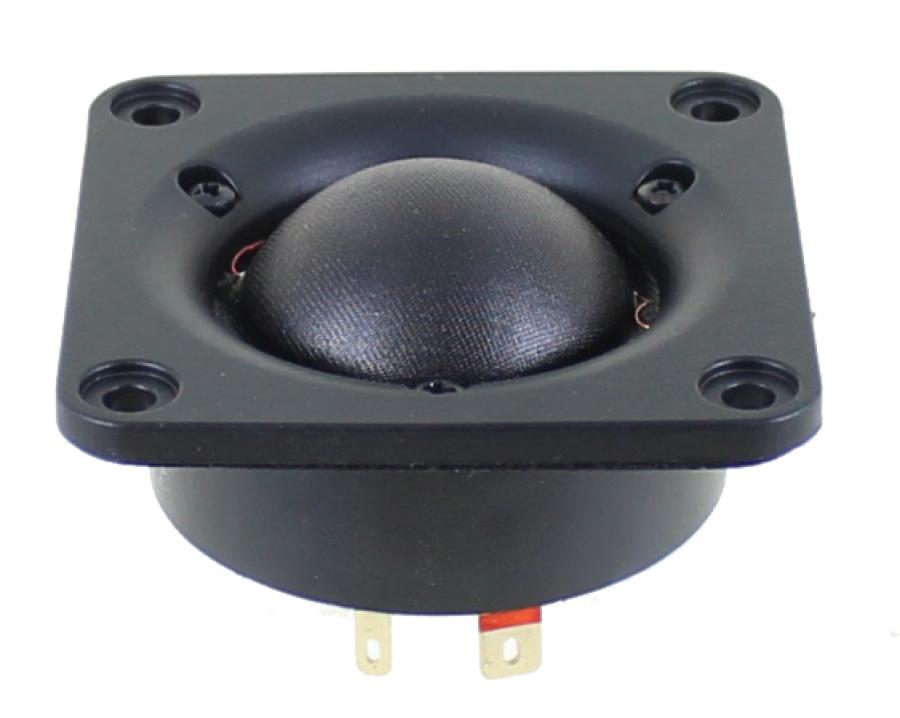

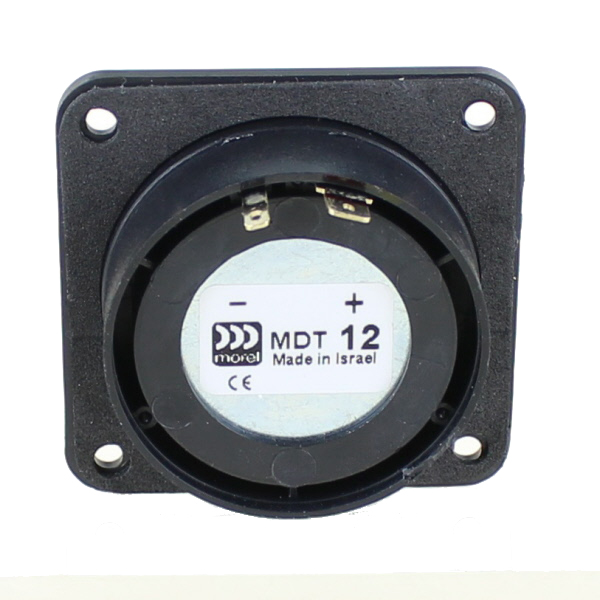

Morel MDT12 1" Textile Dome Tweeter

Morel MDT12 1" Textile Dome Tweeter
Click to enlarge
Price: $34.00

Purchase

  • Buy 4 - 9 and get an additional 2.5 % off
  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: Morel
Product ID : mdt12
Weight: 0.20 lbs
Manufacturer: Morel
E-mail to a friend

Description

Morel MDT12 1" textile dome tweeter with 54mm square flange.

Spec sheet: Morel MDT12 Tweeter

  • Ferrofluid cooled
  • Neodymium magnet
  • Copper VC wire with aluminum former
  • Magnetically shielded
  • Gold-plated terminals
  • Flange 54mm sq (2.13")
  • Cut-out 44mm Ø (1.73")
  • Depth 15.5mm (0.61")


Znom 8 ohm
Re 5.2 ohm
Le@1kHz 0.05 mH
fs 1000 Hz
Mms 0.47
Sd 6.0 cm2
BL 2.8 N/A
VC Ø 28 mm
Sensitivity 1W / 1m 89 dB
Nom. Power DIN 80 W
Net weight 0.08 kg
