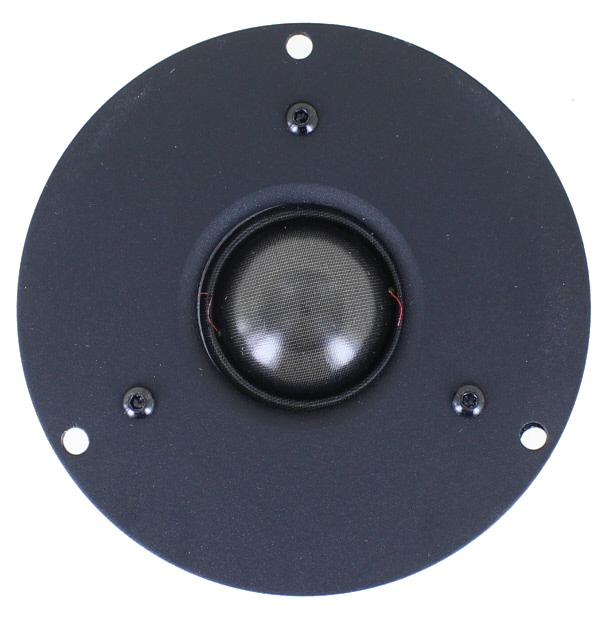

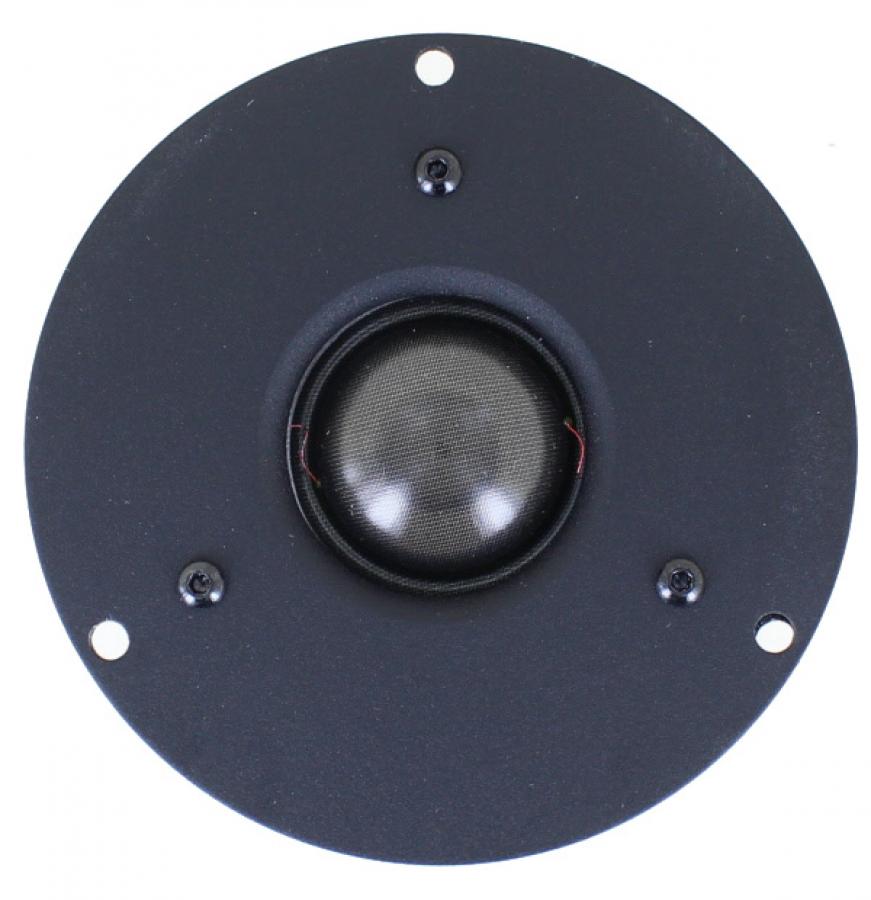

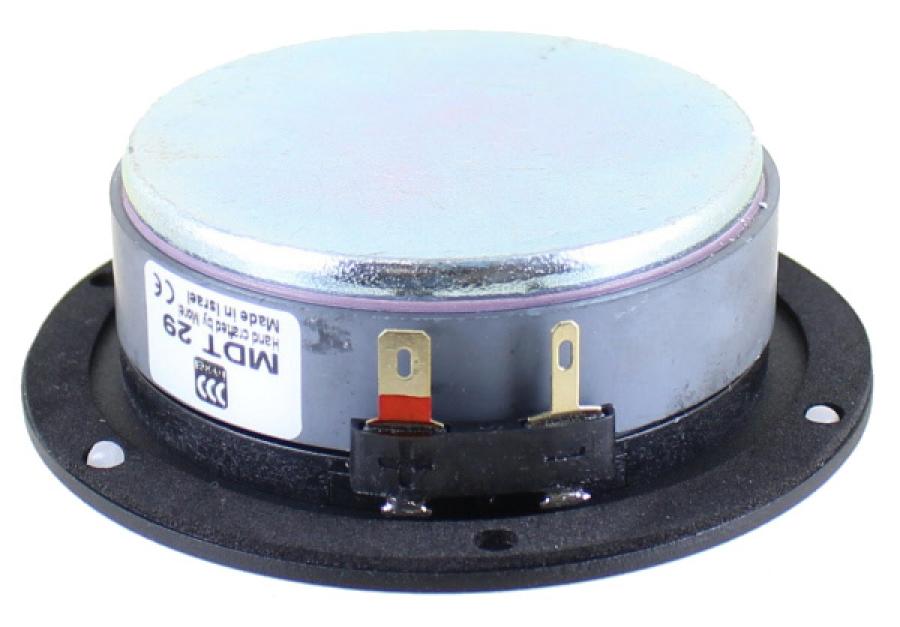

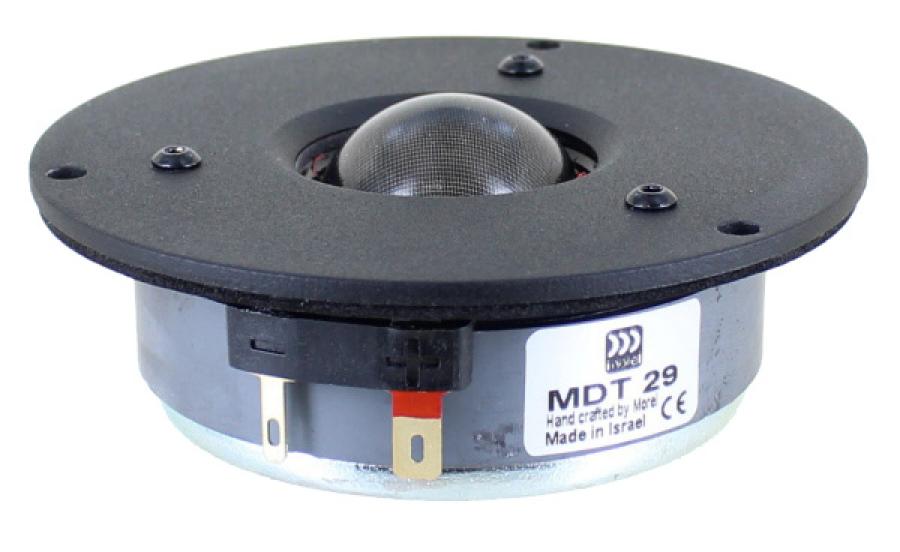

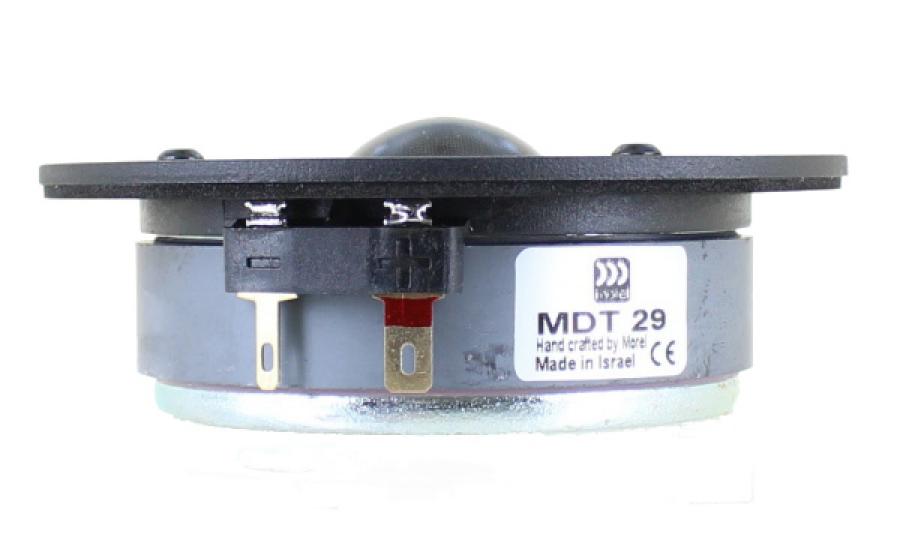

Morel MDT29 1" Textile Dome Tweeter, Aluminum Face Plate
Manufacturer: Morel
Product ID: mdt29
Price:
$72.00
Volume Pricing
4 - 9
2.5% off
2.5% off
10 - 10,000
10% off
10% off
Morel MDT29 1" textile dome tweeter, 3.7" flange
Spec sheet: Morel MDT29 Tweeter 8 ohm
- Ferrofluid cooled
- Replaceable voice coil
- Aluminum face-plate
- Hand treated dome
- Gold-plated terminals
- Flange 94mm (3.7")
- Cut-out 72mm (2.83")
- Depth 27mm (1.06")
Znom 8 ohm
Re 5.2 ohm
Le@1kHz 0.05 mH
fs 900 Hz
Mms 0.5 g
Sd 6.0 cm2
BL 3.3 N/A
VC Ø 28 mm
Sensitivity - 1W / 1m 89 dB
Nom. Power DIN 80 W
Net weight 0.54 kg
Use QC250R and QC110B if not soldering.
The Kef T33A 8ohm has a 95mm square flange, this 94mm circular flange will fit the existing recess. For a cleaner look, consider purchasing Felt Diffraction Rings and cutting them to fill the corners of the recess once the new tweeter is mounted. Look at the Morel MDT29-4 (4 ohm) Textile dome tweeter if you have a 4ohm Kef tweeter.
