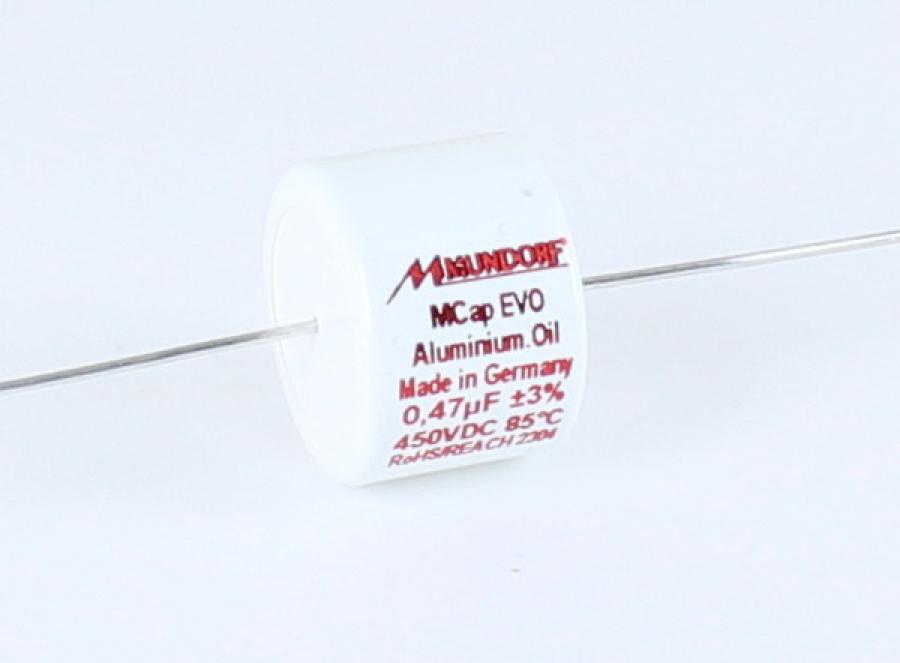

Mundorf 0.47 mfd EVO Oil Capacitor
Overview
Mundorf MCap EVO OIL Capacitor - 0.47 mfd
Aluminum Metalized Polypropylene in Oil
14mm length x 20mm in diameter
The main feature of the EVOLUTION winding technology comes with its unusual narrow but high capacitor reel. This geometry results in two, acoustically clearly perceptable benefits in comparison to traditional, easier to produce capacitors. Firstly, a shorter but utmost little loss signal path between huge contact areas is granted, thus an extreme low equivalent series resistance/ESR. Secondly, in order to meet capacitance the number of paralleled windings is larger than with regular caps, thus an effectively minimized equivalent series inductivity/ESL. After the utmost precise EVO winding process, these reels are spooled by hand in specially developed housings. By that, vibrations and microphonic effects on the reel are most effective avoided. Furthermore, we only employ purest Polypropylene foil vaporized with the thickest metal layer possible. Plus the unusual asymmetric wire lengths allow both mounting directions on PC boards, horizontal and vertical. The shorter lead is the outer foil.
The MCap® EVO Oil combines the MCap® EVO‘s sound characteristic in a perfect way with the acoustical advantages of oil impregnated capacitors. Furthermore, its additional wrapping as well as its imprint in red-metallic impart an appropriate quality look and haptic.
