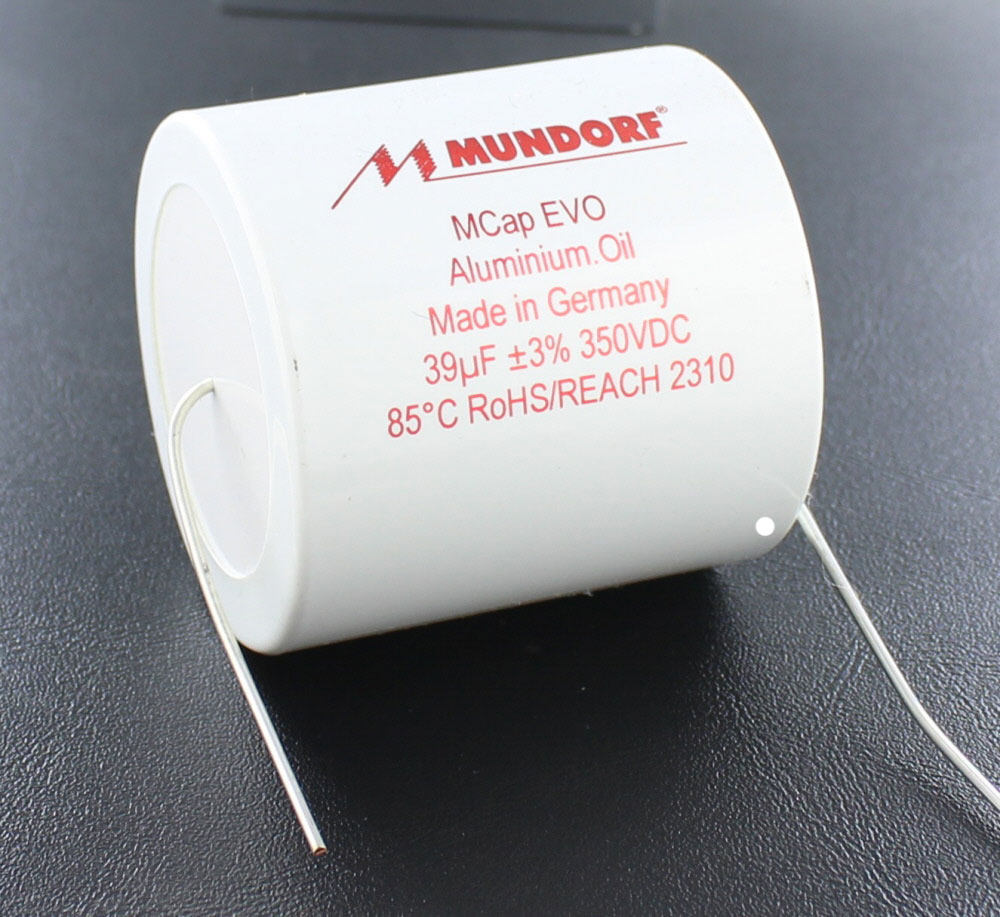

Mundorf 39mfd EVO Oil Capacitor

Mundorf MCap EVO OIL Capacitor - 39 mfd

The MCap® EVO was designed as the successor of the RXF to facilitate utmost musical enjoyment even in small spaces on a limited budget. The PP capacitor film used here is first metallised with the thickest possible aluminium layer, then wound precisely into innovative EVO-lution winding geometry and then potted by hand into special casings. These features are reflected in the music playback with colorful livelihood, remarkable micro dynamic alongside enhanced transparency, authenticity and stereophony. In addition, the MCap® EVO is characterised by low tolerances, compact dimensions, low costs and the highest standards of safety in use (self-healing). Its asymmetrical leads make it possible to assemble it in a classic, horizontal style or vertical. Thanks to its Oil impregnation, the MCap® EVO Oil offers further developed dynamics. Its additional wrapping as well as its imprint in red-metallic impart an appropriate quality look and haptic.

EVO OIL PDF

50mm x 50mm

Aluminum Metalized Polypropylene in Oil

The main feature of the EVOLUTION winding technology comes with its unusual narrow but high capacitor reel. This geometry results in two, acoustically clearly perceptable benefits in comparison to traditional, easier to produce capacitors. Firstly, a shorter but utmost little loss signal path between huge contact areas is granted, thus an extreme low equivalent series resistance/ESR. Secondly, in order to meet capacitance the number of paralleled windings is larger than with regular caps, thus an effectively minimized equivalent series inductivity/ESL. After the utmost precise EVO winding process, these reels are spooled by hand in especially developed housings. By that, vibrations and microphonic effects on the reel are most effective avoided. Furthermore, we only employ purest Polypropylene foil vaporized with the thickest metal layer possible. Plus the unusual asymmetric wire lengths allow both mounting directions on PC boards, horizontal and vertical. The shorter lead is the outer foil.

The MCap® EVO Oil combines the MCap® EVO‘s sound characteristic in a perfect way with the acoustical advantages of oil impregnated capacitors. Furthermore, its additional wrapping as well as its imprint in red-metallic impart an appropriate quality look and haptic.
