Special Order ~ Please allow 2-4 weeks for delivery once your order is placed.

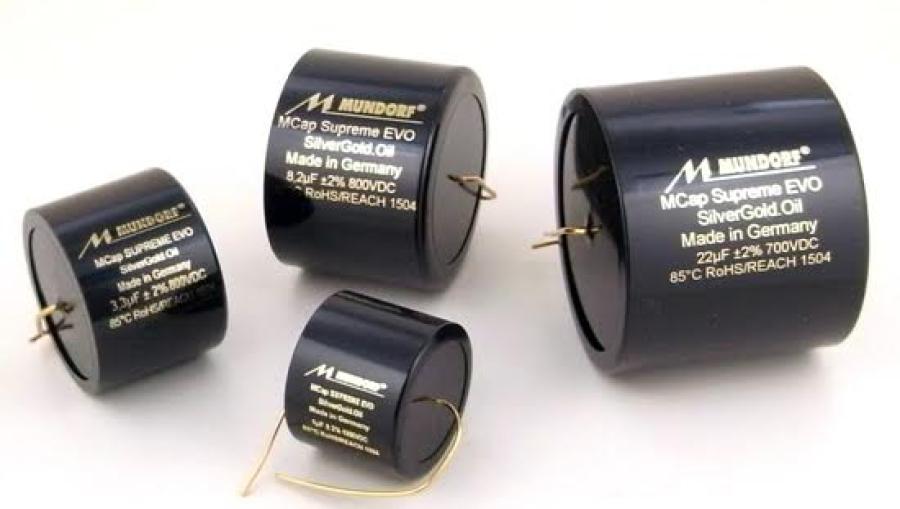

MCap SUPREME EVO Silver-Gold-Oil 27 mfd
140mm diameter x 50mm
Since 2015, the MCap® SUPREME EVO SilverGold has been our undisputed top capacitor model. It combines all our technical highlights, such as Silver Gold metallisation, SUPREME and EVOLUTION winding technology and over 30 years of experience in the manufacturing of audiophile masterpieces into a unique capacitor type of equally unique musicality: finely nuanced and lively shining acoustic colours, which combine into a breathtaking, beautiful, live-like music experience with the utmost precision, presence and three-dimensional plasticity.
Metallised polypropylene as the dielectric guarantees low tolerances and the highest standards of safety in use thanks to its self-healing properties. After running through our new top-quality winding process, the capacitor winding is potted by hand into aluminum tubes to minimise microphony. The directly gold-plated, asymmetrical pure copper wires make it possible to assemble it in a classic, horizontal style or vertical;
the shorter lead also indicates the capacitor's outer foil. Thanks to its Oil impregnation, the MCap® SUPREME EVO SilverGold.Oil offers even superior presence and dynamics.
About the advantages of our innovative EVOLUTION winding technology
The main feature of the EVOLUTION winding technology comes with its unusual narrow but high capacitor reel. This geometry results in two, acoustically clearly perceptible benefits in comparison to traditional, easier to produce capacitors. Firstly, a shorter but utmost little loss signal path between huge contact areas is granted, thus an extreme low equivalent series resistance/ESR. Secondly, in order to meet capacitance the number of paralleled windings is larger than with regular caps, thus an effectively minimized equivalent series inductivity/ESL.
The launch for this special winding technology took already place in the year 2005 with the MCap® RXF (Radial eXtra Flat). Labelled as MCap® EVO professional this line is being continued for industrial PA- and HiFi manufacturers. In order to ease the employment of this extraordinary winding technology for HighEnd audio manufacturers and ambitious hobbyists, we will introduce three new axial MCap® EVO series and, shortly.
After the utmost precise winding process, these reels are spilled by hand in especially developed housings. By that, vibrations and microphonic effects on the reel are most effective avoided. Furthermore, we only employ purest Polypropylene foil vaporized with the thickest metal layer possible.
Altogether, the new MCap® EVO‘s, special features lead to colorful livelihood, remarkable micro dynamic alongside enhanced transparency, authenticity and 3 dimensional stereophony. As the direct successor of the RXF, the MCap® EVO marks the surprisingly inexpensive entry into the audiophile MCap® EVO line-up.
The MCap® EVO Oil combines the described sound characteristic in a perfect way with the acoustical advantages of oil impregnated capacitors. Furthermore, its additional wrapping as well as its imprint in red-metallic impart an appropriate quality look and haptic.
The top-of-the-line MCap® EVO SilverGold.Oil series unites the audible features of a SilverGold metallization with those of an Oil impregnation to a breathtakingly beautiful music performance. The beauty of the MCap® EVO SilverGold.Oil’s music performance is only surpassed by Mundorf's top-line SUPREME.
General Information
Dielectric: Polypropylene (PP) Metallisation: 99% Silver + 1% Gold
tan δ: 0,0002@1 kHz · 0,0001@10 kHz
Max. ambient temperature: 85°C/185°F
Highly recommended for new designs.
Further voltages, capacities and custom labeling available on request.
| Order Code |
Capacity [µF] |
[VDC] |
Body Ø*L [mm] |
Wire Ø*E/A [mm] |
| SESGO-1,0 |
1,0 ±2% |
1000 |
36 * 28 |
1,0 * 35/60 |
| SESGO-1,5 |
1,5 ±2% |
1000 |
41 * 28 |
1,0 * 35/60 |
| SESGO-2,2 |
2,2 ±2% |
800 |
36 * 34 |
1,0 * 35/65 |
| SESGO-2,7 |
2,7 ±2% |
800 |
41 * 34 |
1,0 * 35/70 |
| SESGO-3,3 |
3,3 ±2% |
800 |
46 * 34 |
1,4 * 35/70 |
| SESGO-3,9 |
3,9 ±2% |
800 |
46 * 34 |
1,4 * 35/70 |
| SESGO-4,3 |
4,3 ±2% |
800 |
51 * 34 |
1,4 * 35/75 |
| SESGO-4,7 |
4,7 ±2% |
800 |
51 * 34 |
1,4 * 35/75 |
| SESGO-5,1 |
5,1 ±2% |
800 |
56 * 34 |
1,4 * 40/75 |
| SESGO-5,6 |
5,6 ±2% |
800 |
56 * 34 |
1,4 * 40/75 |
| SESGO-6,2 |
6,2 ±2% |
800 |
51 * 41 |
1,4 * 35/80 |
| SESGO-6,8 |
6,8 ±2% |
800 |
51 * 41 |
1,4 * 35/80 |
| SESGO-7,5 |
7,5 ±2% |
800 |
56 * 41 |
1,4 * 40/85 |
| SESGO-8,2 |
8,2 ±2% |
800 |
56 * 41 |
1,4 * 40/85 |
| SESGO-10 |
10 ±2% |
800 |
66 * 41 |
1,4 * 45/90 |
| SESGO-15 |
15 ±2% |
800 |
76 * 41 |
1,4 * 50/95 |
| SESGO-22 |
22 ±2% |
700 |
66 * 55 |
1,4 * 45/100 |
| SESGO-33 |
33 ±2% |
600 |
66 * 67 |
1,4 * 45/115 |
| SESGO-47 |
47 ±2% |
600 |
76 * 67 |
1,4 * 50/120 |
