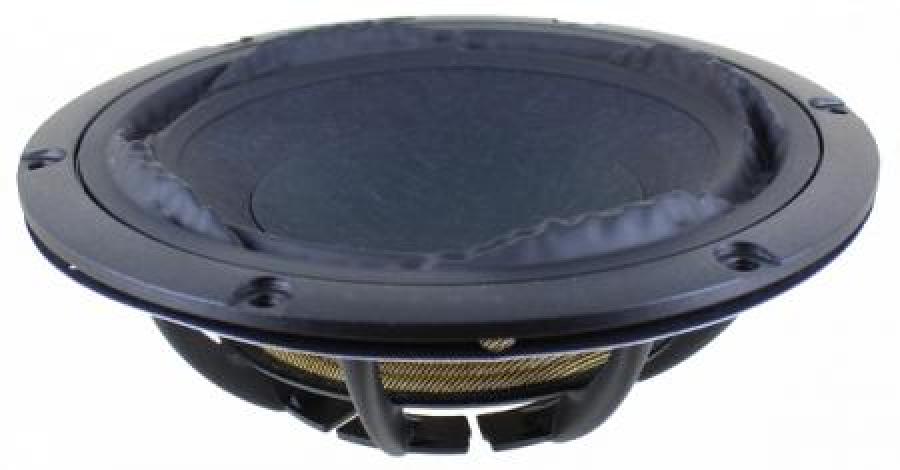

Purifi PTT6.5PR-NF1-01 6.5" Passive Radiator

Purifi Audio PTT6.5PR-NF1-01 6.5" Fiber Cone Passive Radiator- 176mm- 80g

Spec Sheet PDF

PTT6.5PR-NF1-01 incorporates PURIFI’s Neutral Surround technology in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and tunable mass, the driver is eminently suited as a companion to PTT6.5W especially in compact speaker construction where a traditional reflex port would limit the performance.

• PURIFI Neutral Surround eliminates Surround Radiation
• Distortion
• 30mm peak-peak excursion with constant Sd
• Adjustable mass for optimal tuning
• Designed and Manufactured in Denmark


Purifi Audio PTT6.5PR-NF1-01 Datasheet

Purifi Application Notes and Downloads

HiFiCompass Page with a variety of box tunings including PR

Weight	1.25 kg
Dimensions	23 × 22 × 12 cm

.
