Audax PR170M0 6.5" Midrange - 100dB

Price: $99.80


  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: Audax
Product ID : pr170m0
Weight: 6.82 lbs
Manufacturer: Audax
E-mail to a friend

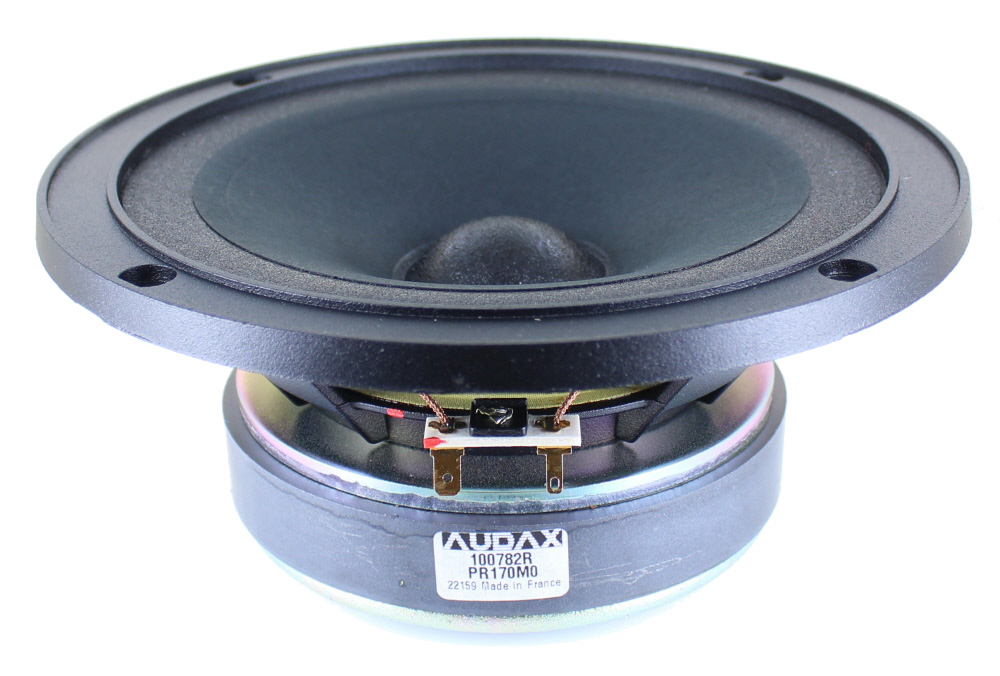

Audax PR170M0 Paper Cone High Efficiency 6.5" Midrange

Audax PR170MO is a Professional Quality Reference Standard 17 cm (6.5") Midrange, high efficiency 100 dB SPL, high power 100W.  Used in professional sound systems such as Peavey SP3, SP3G and possibly other Peavey models. Featuring a profiled paper cone and coated flat foam surround, with substantially flat response from 500 Hz to 6KHz.. Audax recommended replacement for MHD 17 HR 37 RSM, MHD 17 HR 37 TSM, PR 17 HR 37, PR 17 HR 60,PR 17 HR 70, PR 17 HR 100. Made in France.

  • 6.5" High Efficiency Paper Cone Midrange
  • Treated flat foam surround
  • 100dB efficiency
  • Ultra stiff die cast chassis
  • 40mm voice coil diameter
  • Flat aluminum wire on fiberglass former
  • 100 Watt power handling
  • Recommended frequency 400Hz to 8kHz (as low as 250Hz in lower power systems)

The PR170MO was specifically designed for high quality professional sound reinforcement systems. Its efficiency and power handling capacity are exceptional for a direct radiation transducer in its category. The flat foam suspension is coated with a cisco-elastic compund in order to minimize the standing waves and cone break up. It is ideally suited to cover the frequency range from 500Hz to 8kHz. This driver is recognized worldwide as the reference in prestigious professional applications.

You can try the PR170M0 in around 0.2 cubic foot sealed (F3 of 190Hz).



Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by Mike1443SA
02/04/2016 - 08:55:00 PM
Audax Midrange Driver
Purchased a pair of these drivers a few years ago as replacements for my Peavey SP3G's. These are outstanding midrange drivers with clear, precise, detailed sound. The foam suspension on the original drivers dried out and crack after 12 years of faithful service.
