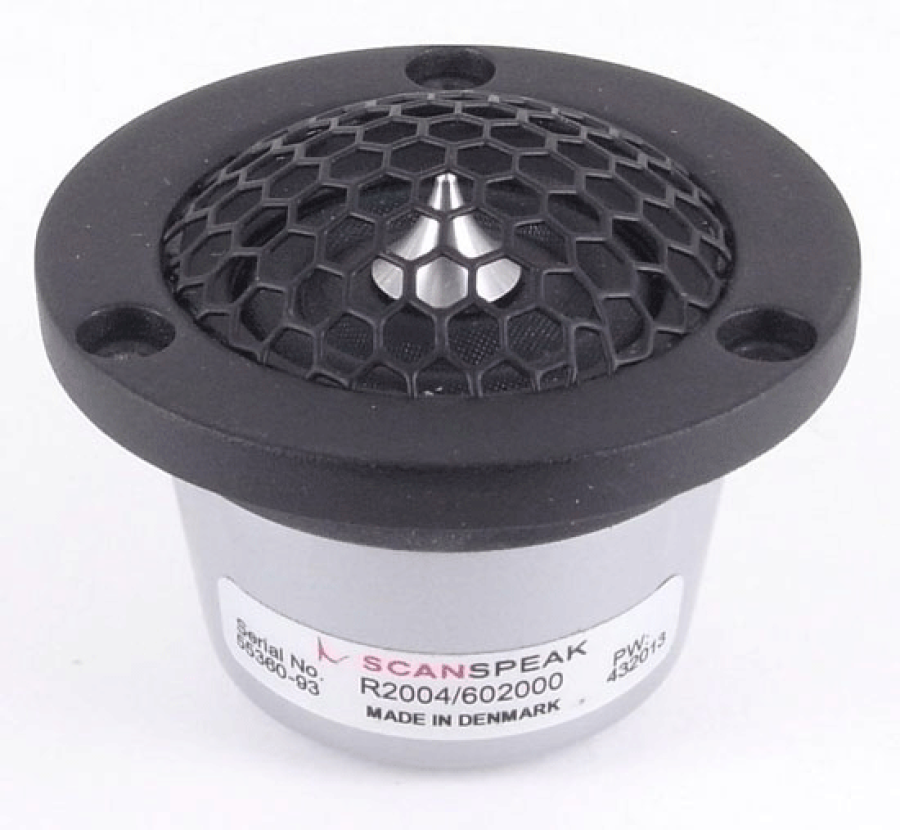

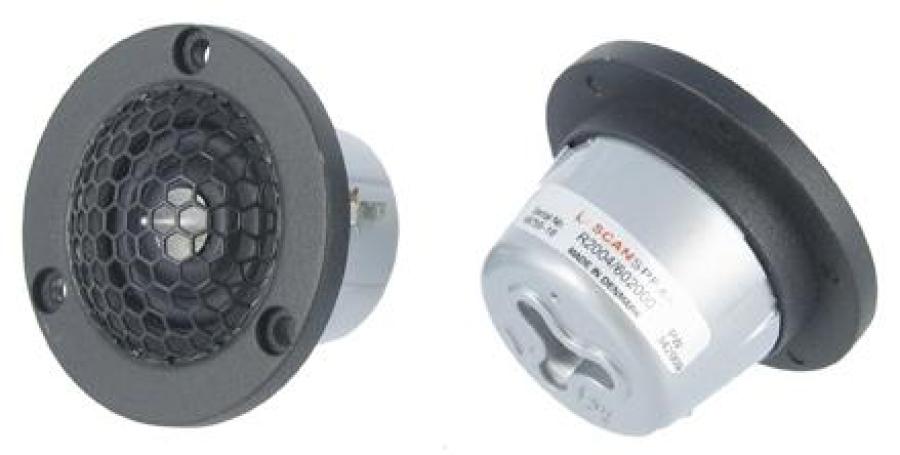

ScanSpeak Illuminator R2004/6020-00 Tweeter Small Ring Radiator

Price: $145.50


  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: ScanSpeak
Product ID : r2004_6020
Weight: 0.50 lbs
Manufacturer: ScanSpeak
E-mail to a friend


ScanSpeak Illuminator R2004/6020-00 Tweeter Small Ring Radiator

  • 3/4" Soft Ring Dome
  • Ring Neodymium Magnet
  • Aluminum Face Plate and Housing
  • Patented Symmetrical Drive (SD-2) motor
  • Patented Phase Plug Design
  • Sound Transparent Protective Grill
  • Shallow Non Resonant Alu Rear Chamber
  • 55.5mm (2.18") diameter flange with 29.3mm (1.15") depth (see drawing below)
  • Excellent choice for both home hi-fi and autosound applications

The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion.

The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

R2004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces.

The back chamber is die cast in aluminium and designed with a contoured shape that
functions as a heat sink in high power applications.

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by SlimLim
SlimLim bought "ScanSpeak Illuminator R2004/6020-00 Tweeter Small Ring Radiator" on our website
12/28/2016 - 03:35:01 AM
Fantastic driver
This is small ring radiatoris very detailed and provides delicate notes. This tweeter is extremely versatile and can be crossed very low (i could cross it down to 1.5khz). I have it at 3.15khz@24dbB with a Peerless HDS 830870 4" midrange. The Peerless HDS is shown up with this tweeter. If you are buying this tweeter, you need capable midrange to complement this tweeter.

It is not the cheapest mini ring radiator, but it is one of the best.
