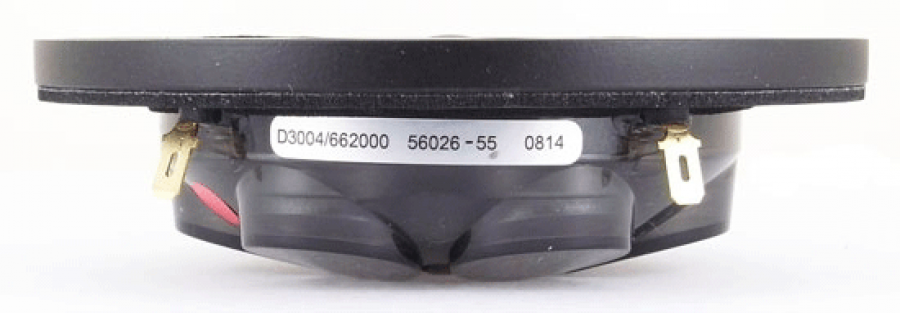

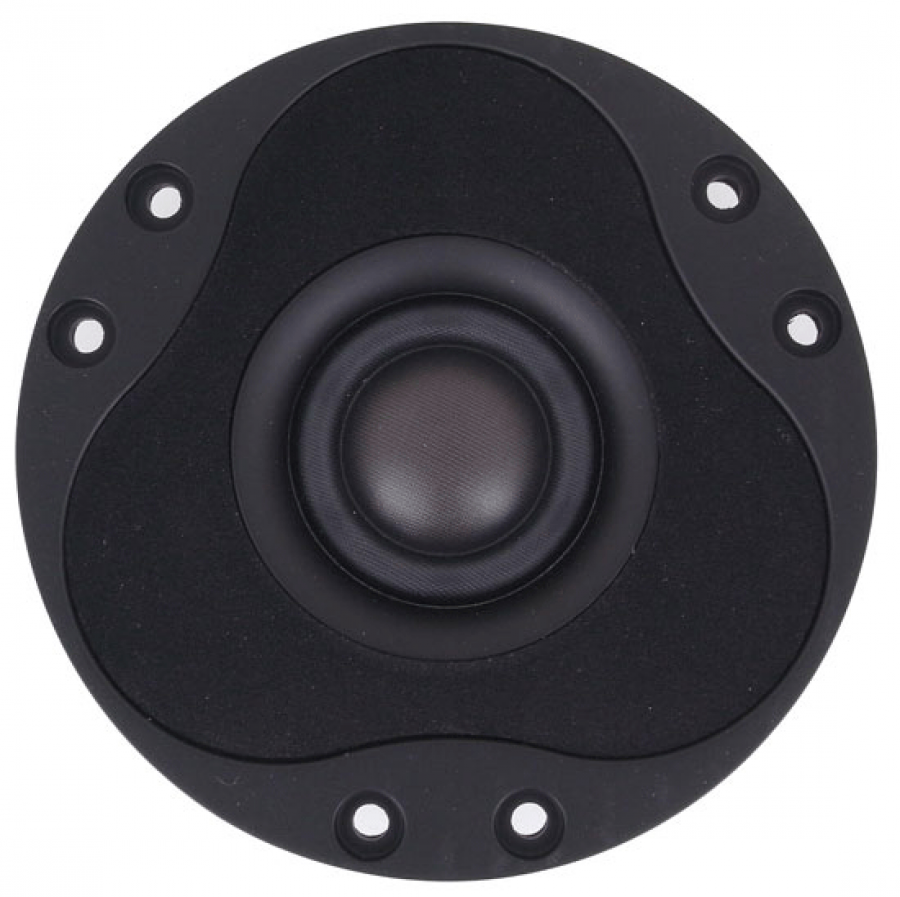

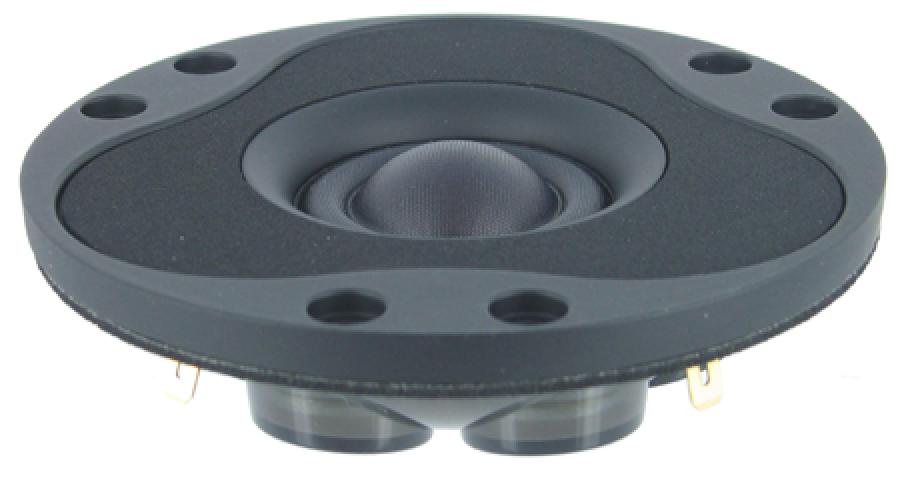

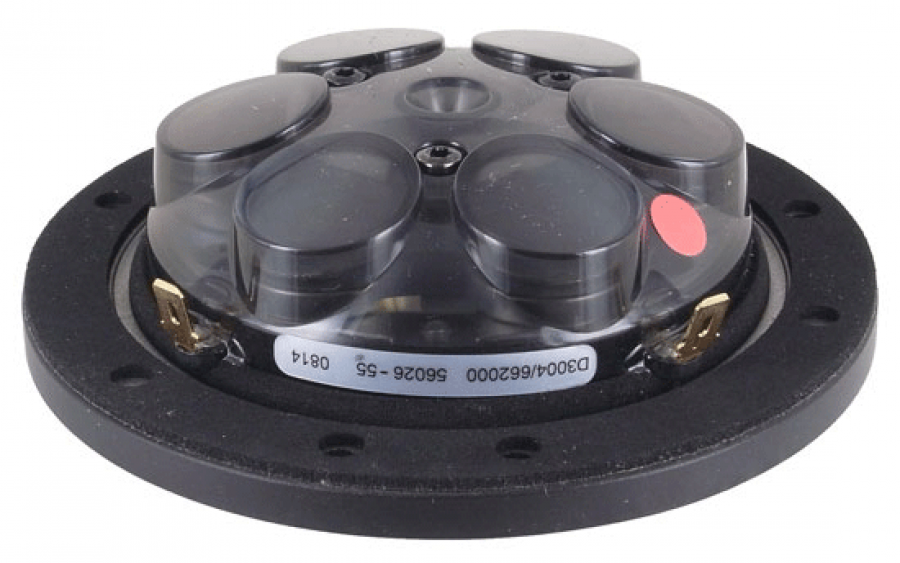

ScanSpeak Illuminator D3004/6620-00 Tweeter

ScanSpeak Illuminator D3004/662000 Textile Dome Tweeter- 104mm- 4 ohm

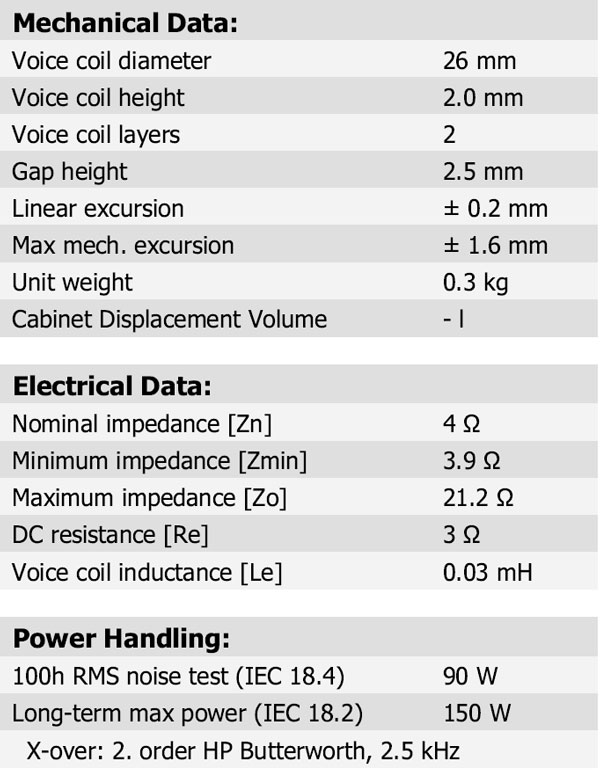

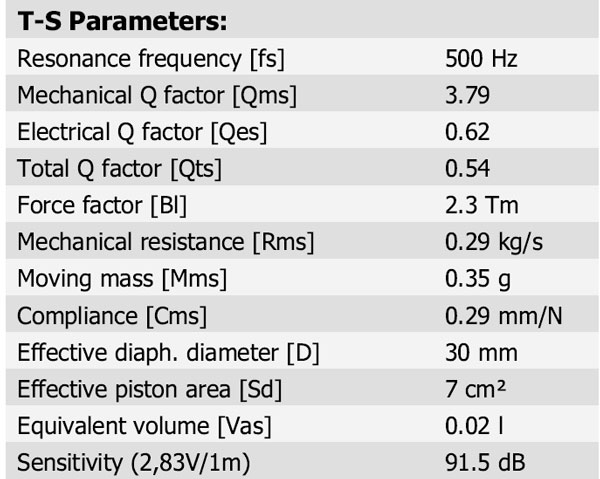

Spec Sheet PDF

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations.

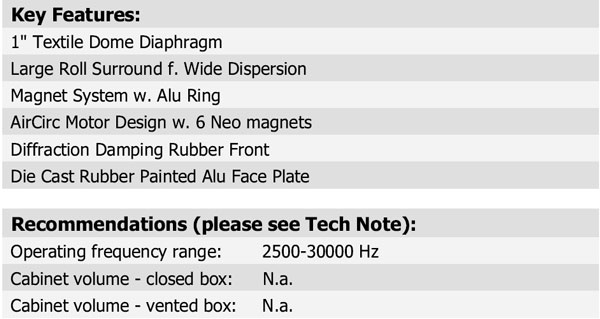

• 1" Textile Dome Diaphragm
• Magnet System w. Alu Ring
• Diffraction Damping Rubber Front
• Large Roll Surround f. Wide Dispersion

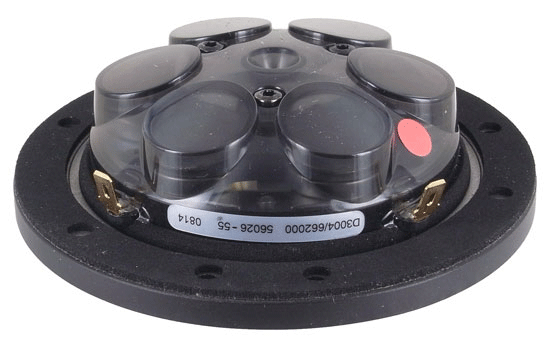

• AirCirc Motor Design w. 6 Neo magnets
• Die Cast Rubber Painted Alu Face Plate

The Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. Scan-speak’s unique AirCirc Magnet System - named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors. The D3004-662000 gives engineers improved control over critical midrange performance, for superb vocal rendition and excellent imaging at all listening locations.
