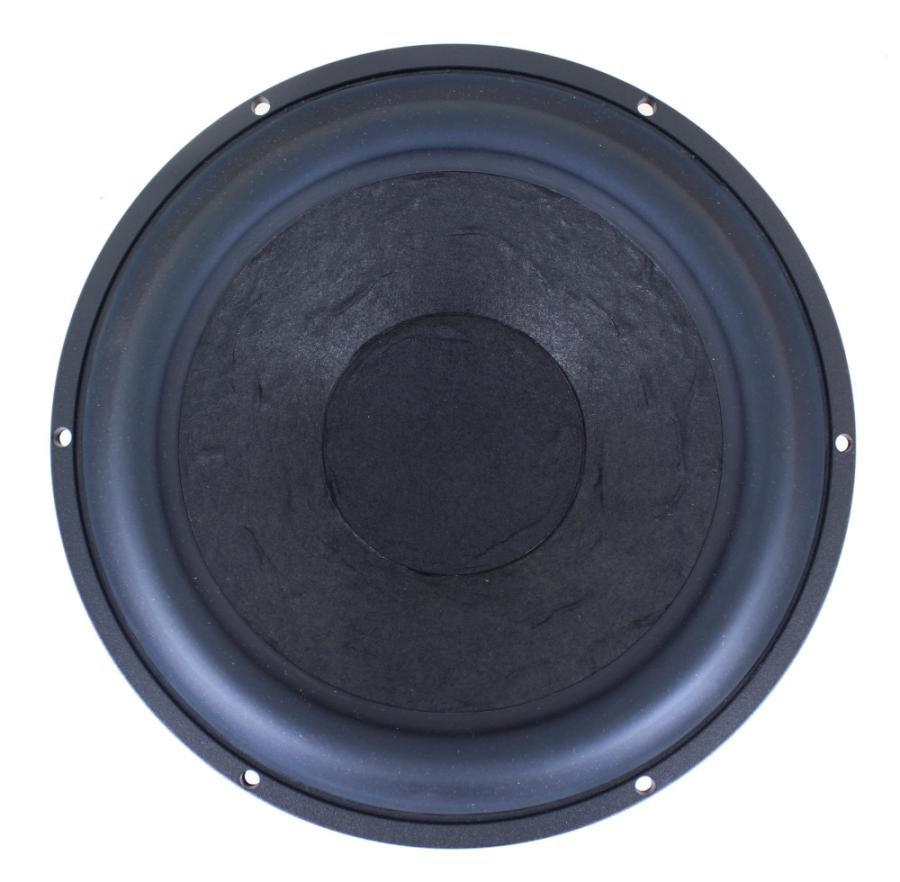

ScanSpeak Classic 18W/8545K 7" Mid Woofer Paper Cone Fiberglass Former

ScanSpeak Classic 18W/8545K 7" Mid Woofer Paper Cone Fiberglass Former
Click to enlarge
Price: $164.00

Purchase

  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: ScanSpeak
Product ID : 18w_8545k
Weight: 5.94 lbs
Manufacturer: ScanSpeak
E-mail to a friend | Add To Wish List

Description

ScanSpeak Classic 18W/8545K 7" Mid Woofer Paper Cone Fiberglass Former

This Scan-speak 7" features the heavily damped and carbon fibre impregnated paper cone that dampens resonances normally associated with stiff cones. The magnet system is the new SD-1 system which eliminates modulation and dynamic distortion, as well as clipping distortion created as it exceeds its maximum linear excursion. This driver uses a fiberglass voice coil former.

  • Outside diameter: 177mm
  • Cut out: 158mm
  • Depth: 70mm
  • 25.4mm = 1" = 2.54cm

Also written as: 18W/8545K, 18W 8545K, 18W/8545K-00, 18W 8545K 00, 18W 8545K00

Box suggestions:

0.25 cubic foot sealed box with 20% filling for and F3 of 84Hz

0.5 cubic foot box with 2" vent by 8" long for an F3 of 49Hz

0.7 cubic foot box with 2" vent by 8" long for an F3 of 45Hz
