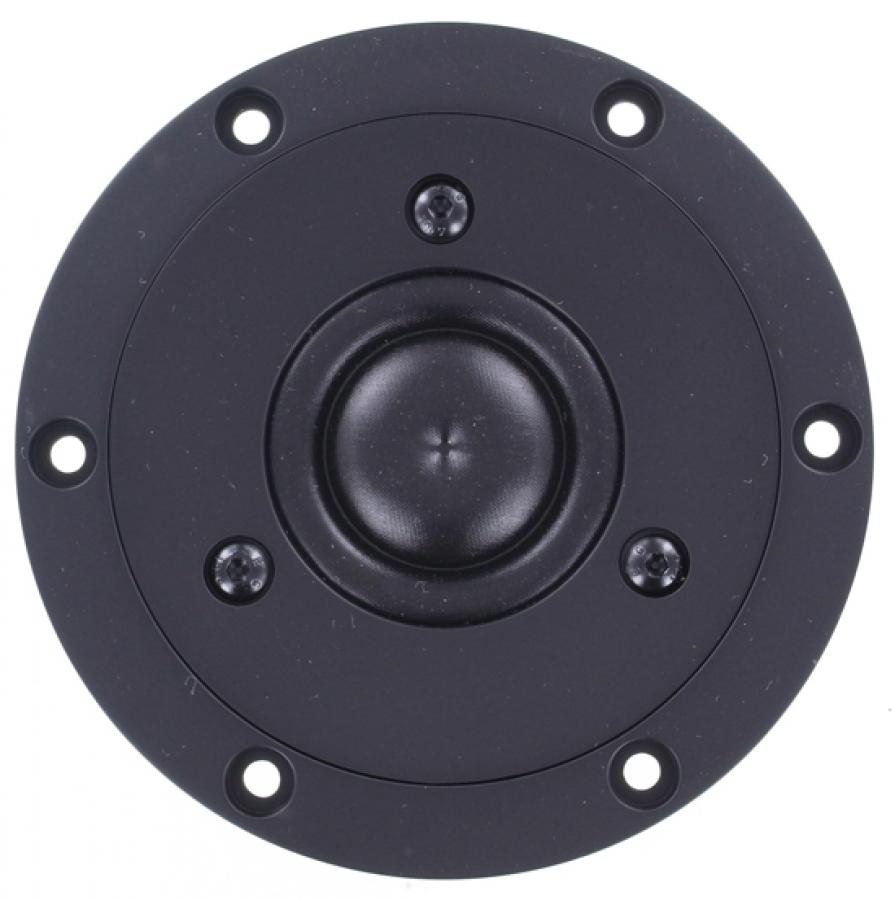

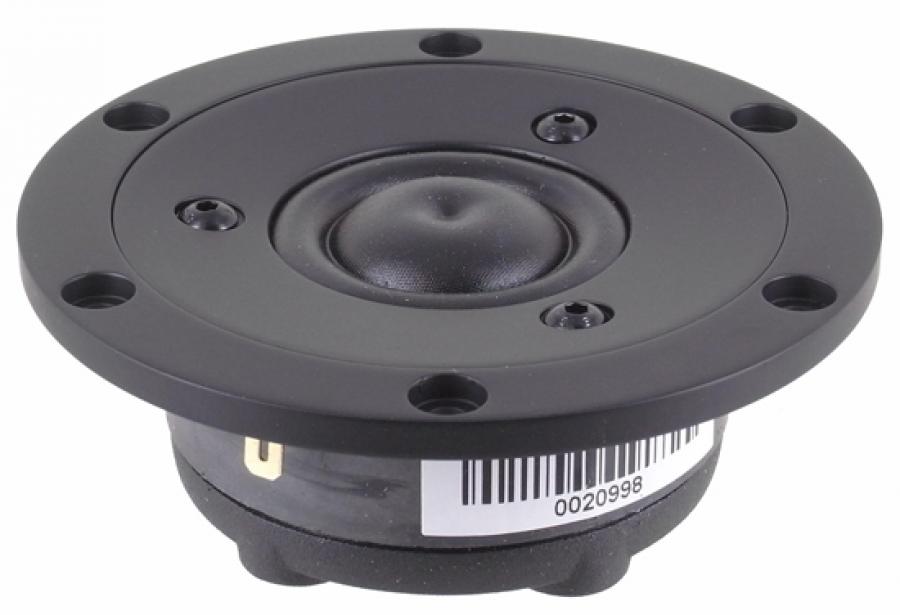

Satori TW29R-B Ring Dome Tweeter - Black

Satori TW29R-B Ring Dome Tweeter - 104mm Black Faceplate- 4 ohm- 92 dB

Spec Sheet PDF

Full copper sleeve and pole piece for ultra low distortion and inductance + metal rear chamber to lower vibration distortion

Audio Excite Measurements of TW29R-B

The TW29R-B-black faceplate version- is a premium ring dome tweeter offered by SB Acoustics.  This tweeter has many advanced technology features that culminate in very detailed and low distortion output.  This tweeter is a perfect choice in any high end system.

• Non-resonant diaphragm design for minimum high frequency break-up
• Two part aluminum faceplate with integrated mechanical decoupling
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• Saturation controlled motor system with T-shaped pole piece for lower distortion
• Non-reflective cast alumimum chamber with optimized damping for improved dynamics
• Flow optimized vented pole piece for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range
