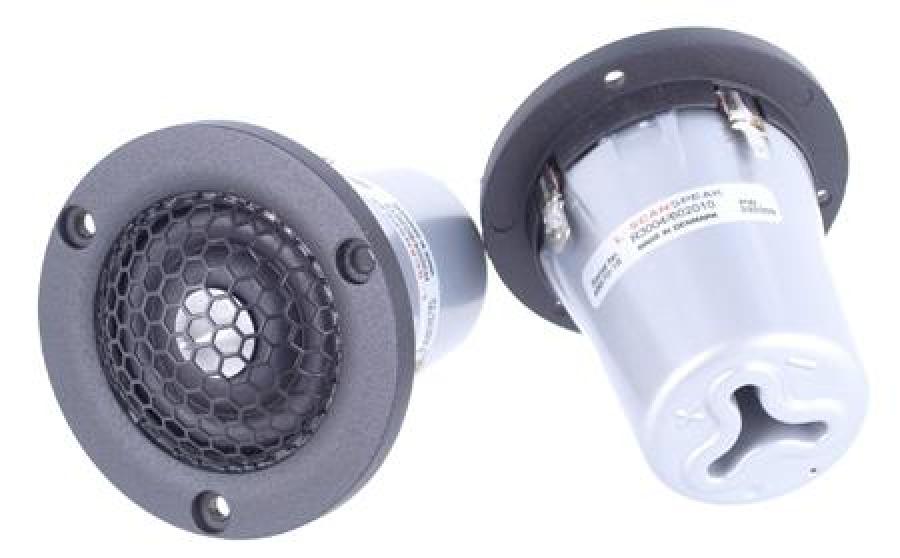

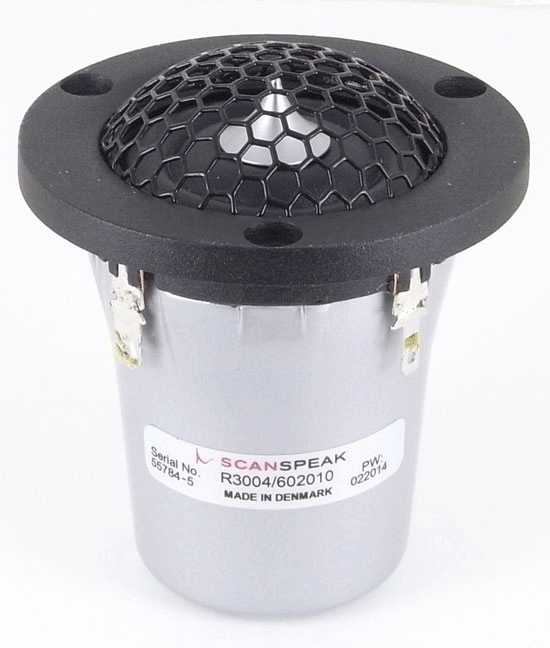

ScanSpeak Illuminator R3004/6020-10, 1" Tweeter Soft Dome Ring Radiator

Discontinued. No longer available.

ScanSpeak Illuminator R3004/6020-10, 1" Tweeter Soft Ring Dome

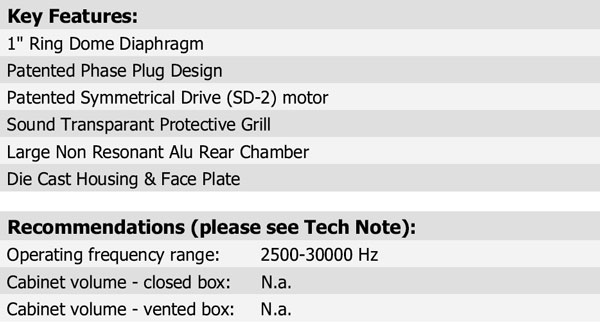

• 1" Soft Ring Dome
• Ring Neodymium Magnet
• Patented Symmetrical Drive (SD-2) motor
• Patented Phase Plug Design
• Aluminum Face Plate and Housing

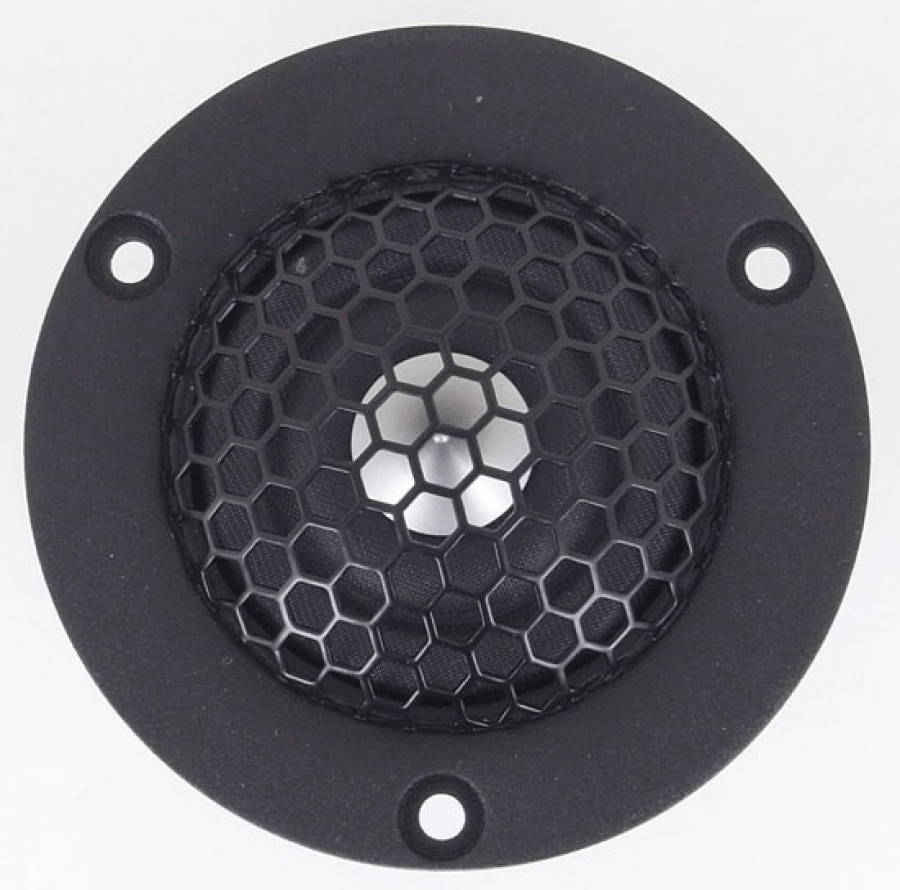

• Sound Transparent Protective Grill
• Deep Non Resonant Alu Rear Chamber

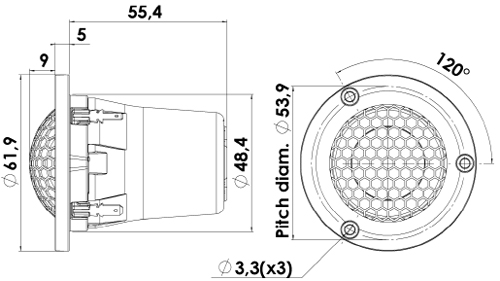

• 61.9mm (2.44") diameter flange with 55.1mm (2.17") depth (see drawing below)
• Excellent choice for both home hi-fi and autosound applications where depth is not an issue

The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion.

The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

R3004-602010 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces where you have extra depth.

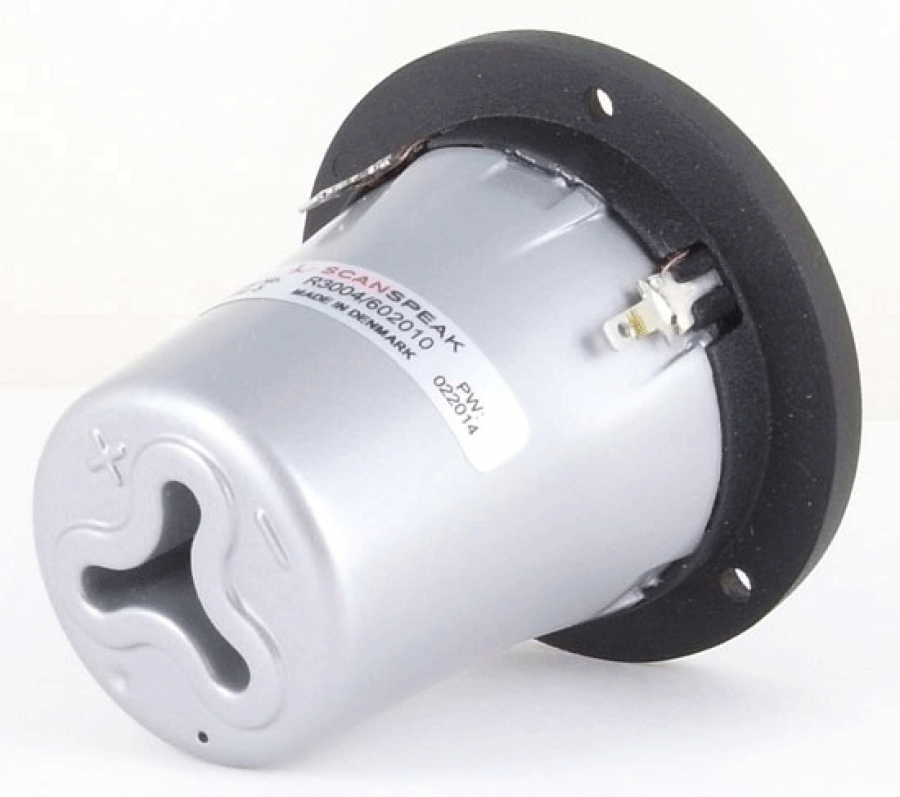

The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.
