Satori TW29TXN-B-4 / TeXtreme Dome Tweeter, 4 ohm

Satori TW29TXN-B TeXtreme Carbon Fiber Dome Tweeter- 104mm- 4 ohm- 96 dB
Advanced TeXtreme® dome

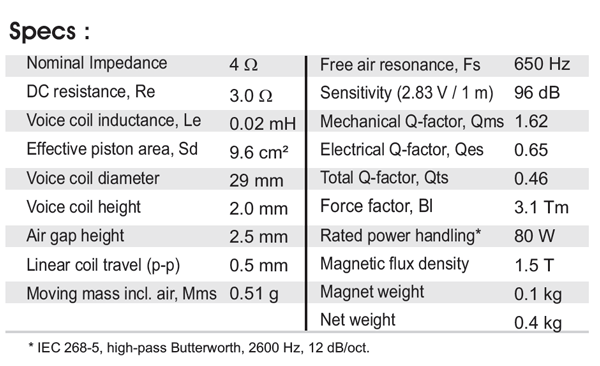

Spec Sheet PDF

New Satori advanced TeXtreme® dome tweeter. TeXtreme - Combining ultralight weight, high stiffness and controlled break up behavior.

Test Bench Review of the TW29TXN-B

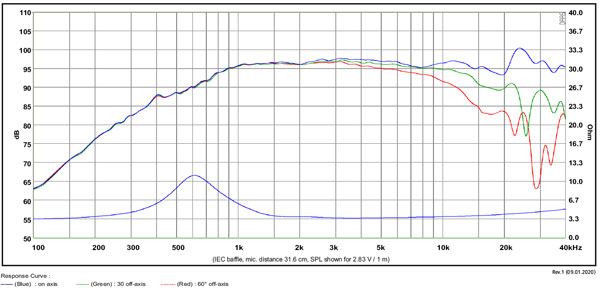

Excellent performance and sound ⋅ very clean and transparent.  This brand-new model in the premium SB Acoustic Satori line features a 4 ohm version Neodymium magnet and the lates TeXtreme dome technology.  TeXtreme is an advanced, super thin carbon fiber fabric that maximizes the strength-to-weight ratio. The TW29TXN-B has smooth frequency response to 20 kHz and beyond. Designed and engineered in Denmark.

• Advanced TeXtreme® dome
• Two part aluminium faceplate with integrated mechanical decoupling
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• High saturation neodymium motor system with T-shaped pole piece for lower distortion
• Non-reflective cast aluminium chamber with optimized damping for improved dynamics
• Shallow flow optimized magnet structure for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range
