SB Acoustics SB26STCN-C000-4 Tweeter, 4 ohm

Manufacturer: SB Acoustics

2 Customer Review(s)

Product ID: SB26STCN-C000-4

$40.50

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

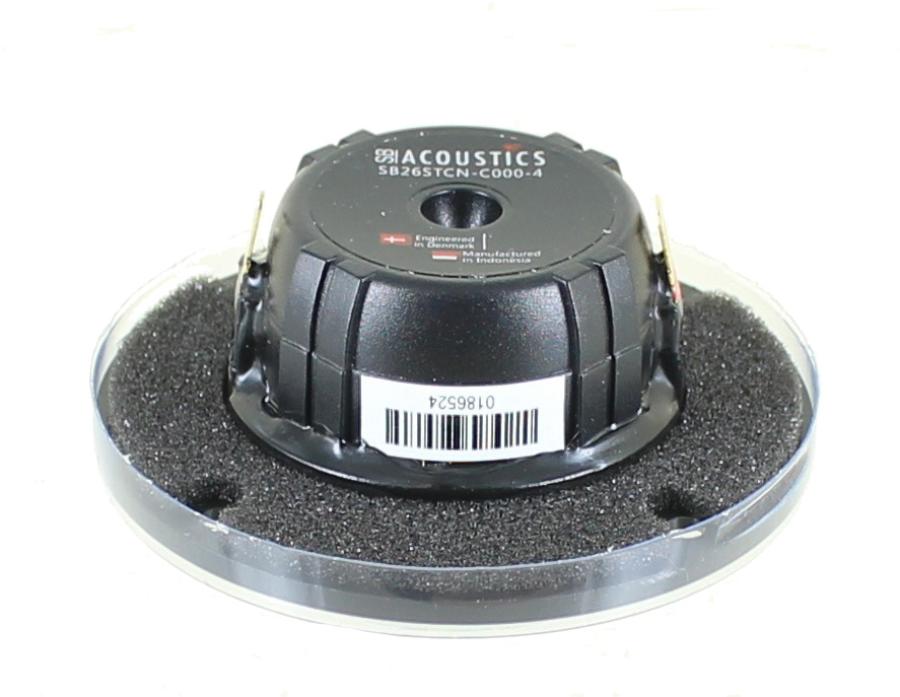

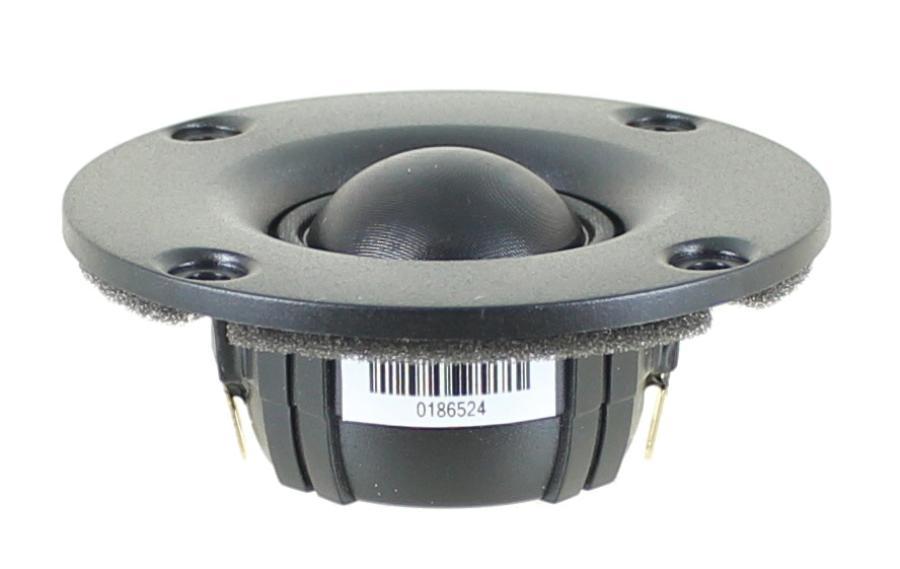

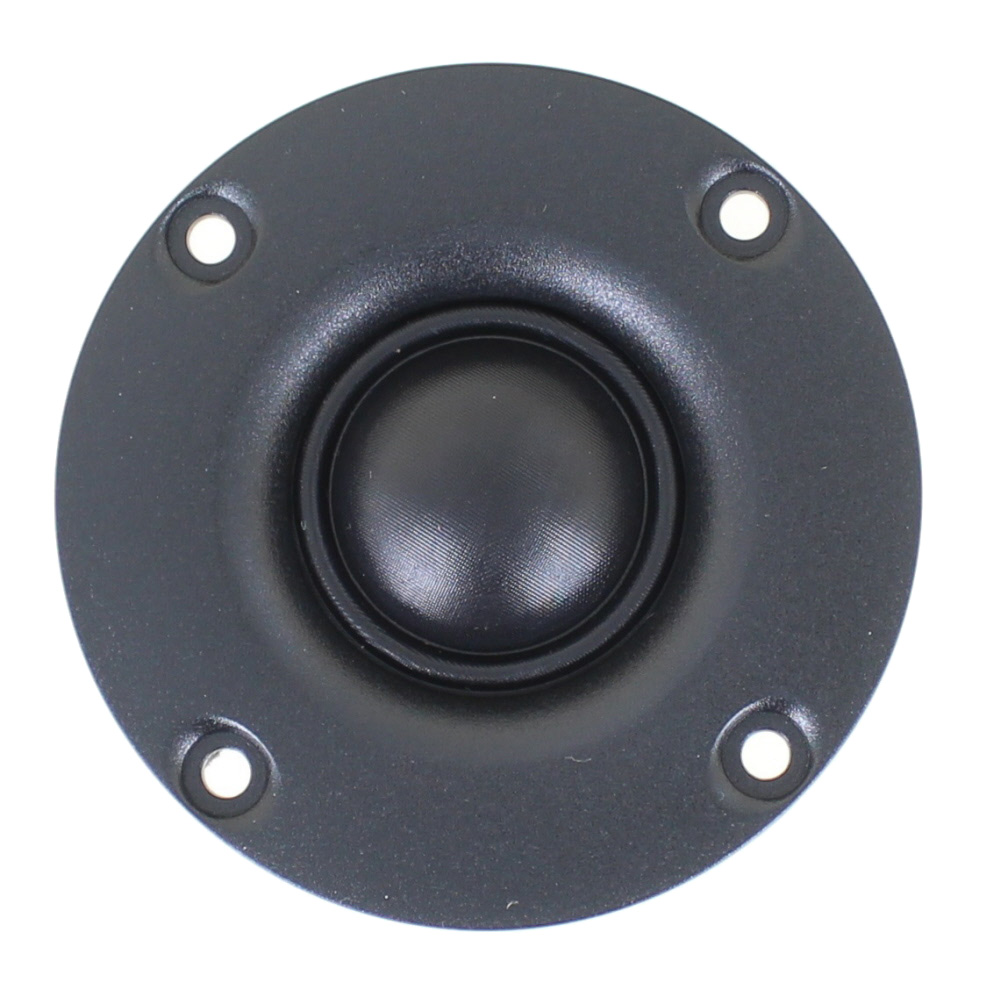

SB Acoustics SB26STCN-C000-4 Fabric Dome tweeter- 4 ohm- Neodymium Magnet- 72mm

SB Acoustics SB26STCN-C000-4 Fabric Dome tweeter- 4 ohm- Neodymium Magnet- 72mm

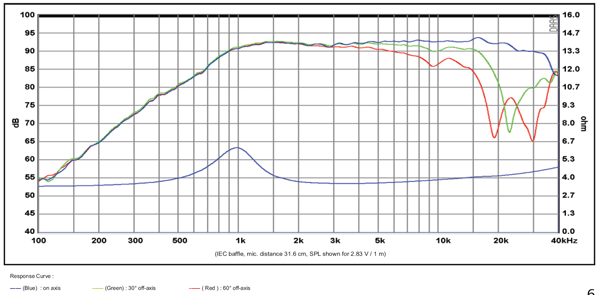

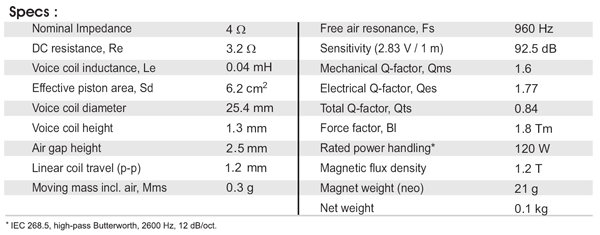

Spec Sheet PDF

This fabric dome tweeter features a copper cap on pole piece for reduced voice coil inductance and minimum phase shift, inherently shielded neodymium motor system, and compact design. Extended on-axis response.

This tweeter is used in Neil Blanchard Designs MLTL-6 speaker build. Flatpacks are available here.

CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency
Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
Fine weave soft fabric dome for smooth frequency response
Inherently shielded neodymium motor system
Internal pressure equalization and flow resistor for non-resonant coupling of cavities
Compact design

2 Customer Review(s)

Outstanding Performer!

Reviewed by NeilBlanchard on 12/30/2024

The response of this tweeter is amazingly smooth, flat, and extended - it is nearly flat to above 20kHz and hits 30kHz only a few dB down. It also has a relatively low Fs of 960Hz, which helps it be crossed over smoothly. I really like the off axis response - it rolls off gently and extends to about 15kHz well off axis, which helps it "disappear".

A less obvious feature of this tweeter, is the smaller diameter face plate; which lets it be mounted closer to the woofer/midrange. This gets the acoustic centers closer together, and can help the soundstage and imaging of the speaker.

This tweeter is excellent, and is a wonderful value. It is a soft dome tweeter that meets a very high level of performance.

I am using it with an equally excellent woofer from SB Acoustics, the SB16PFCR25-4 ( https://www.madisoundspeakerstore.com/approx-6-7-woofers-sb-acoustics/sb-acoustics-sb16pfcr25-4-6-paper-cone-woofer-4-ohm-round/) ; in 2 different mass loaded transmission line speakers - the MLTL-6 stand mount, and the Tower 6 floorstander.

The build manual for the MLTL-6 stand mount speaker is available here:
https://www.nbdesigns.work/shop/p/mltl-6-mass-loaded-transmission-line-speaker-build-manual

The build manual for my Tower 6 floorstanding speakers is available here:
https://www.nbdesigns.work/shop/p/tower-6-mass-loaded-transmission-line-speaker-build-manual-1

I have the XSim response graphs on my website; that show how well this tweeter works.

Old Guy Hifi on YouTube has reviewed my MLTL-6 speakers:
https://youtu.be/AEoduNaQaXk?si=GN3yglRgjJmtSzZe

ABX Audiophiles has a build/review of the MLTL-6 speakers with the available CNC cut Baltic birch flat pack:
https://youtu.be/gu-FuzyJ_1g?si=MsCIvyv4gQPTJNyT

Excellent!

Reviewed by analogkid455 on 12/07/2024

For the price you cannot beat them. They measure very flat, super low distortion and sound fantastic! They will take lots of power too! I have them crossed over at 2200 hz 4th order. I had them playing 109 db at 3 ft and they still sounded fine. Measured distortion at 3 ft 90 db was .3% and lower. Also, very good off axis.
