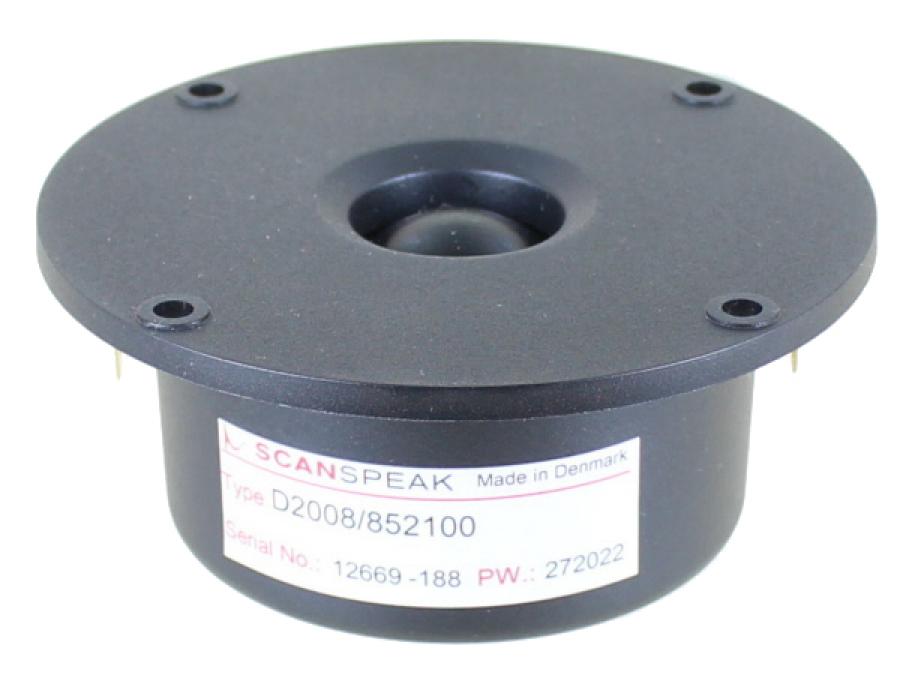

ScanSpeak Classic D2008/852100 20 mm Dome Tweeter
Manufacturer: ScanSpeak
Product ID: d2008_852100
Price:
$78.10
Overview
ScanSpeak Classic D2008/852100 20 mm Dome Tweeter. Double chambered 3/4" damped textile dome tweeter. The voice coil is a precision wound aluminum wire with a 27 strand tinsel braid for a lower resonance. The magnet system is neodymium. The surround of the diaphragm is damped to reduce distortion.
Scan-Speak Classic D2008/852100

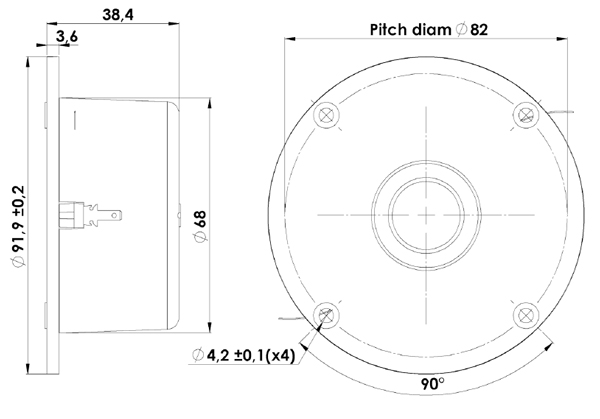

Newest version of D2008 replacing the -8511 & -8512 (D2008/8511 & D2008/8511), same specifications, no crossover modifications required. Same 92mm OD.

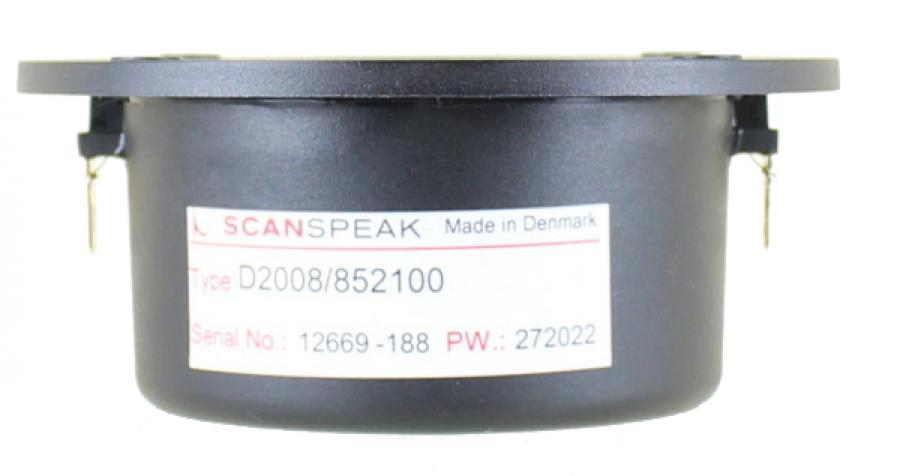

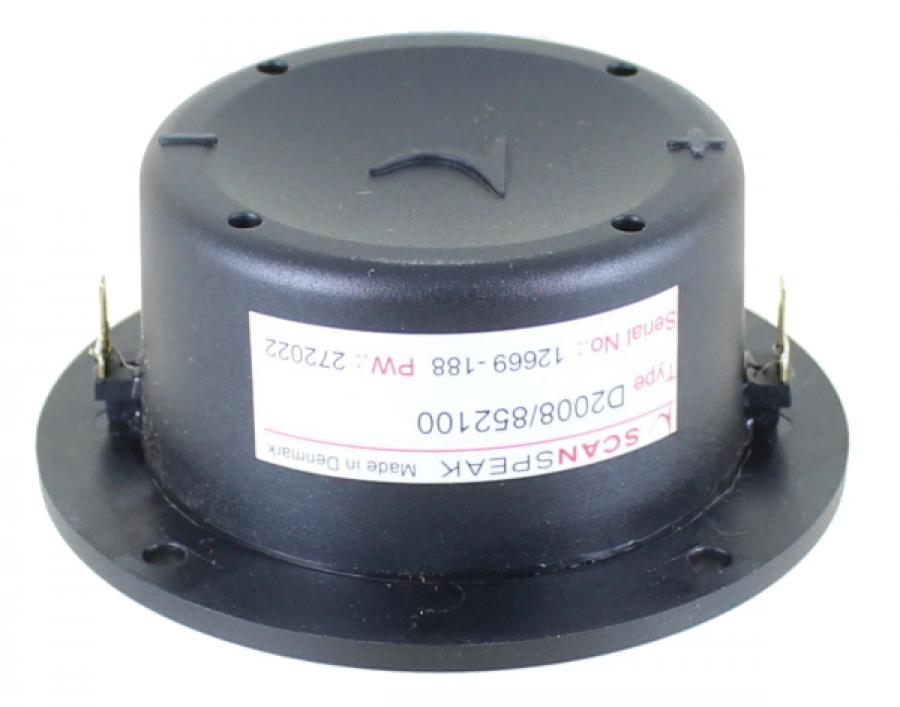

Please note: The original tweeters had the tabs on the back of the chamber. The new tweeters have the tabs on the opposite sides of the chamber. If you are replacing an older tweeter with this new one, you will probably have to carve out the through hole to accomodate the new tab locations. A Dremel tool makes quick work of this and the new notches will not be visible once the new tweeter is installed. New tweeter uses 4 mounting screws, the old tweeters used 3.
Newest version of D2008 replacing the -8511 & -8512 (D2008/8511 & D2008/8511), same specifications, no crossover modifications required. Same 92mm OD.
Please note: The original tweeters had the tabs on the back of the chamber. The new tweeters have the tabs on the opposite sides of the chamber. If you are replacing an older tweeter with this new one, you will probably have to carve out the through hole to accomodate the new tab locations. A Dremel tool makes quick work of this and the new notches will not be visible once the new tweeter is installed. New tweeter uses 4 mounting screws, the old tweeters used 3.

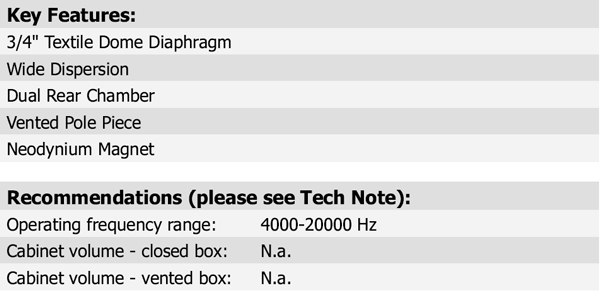

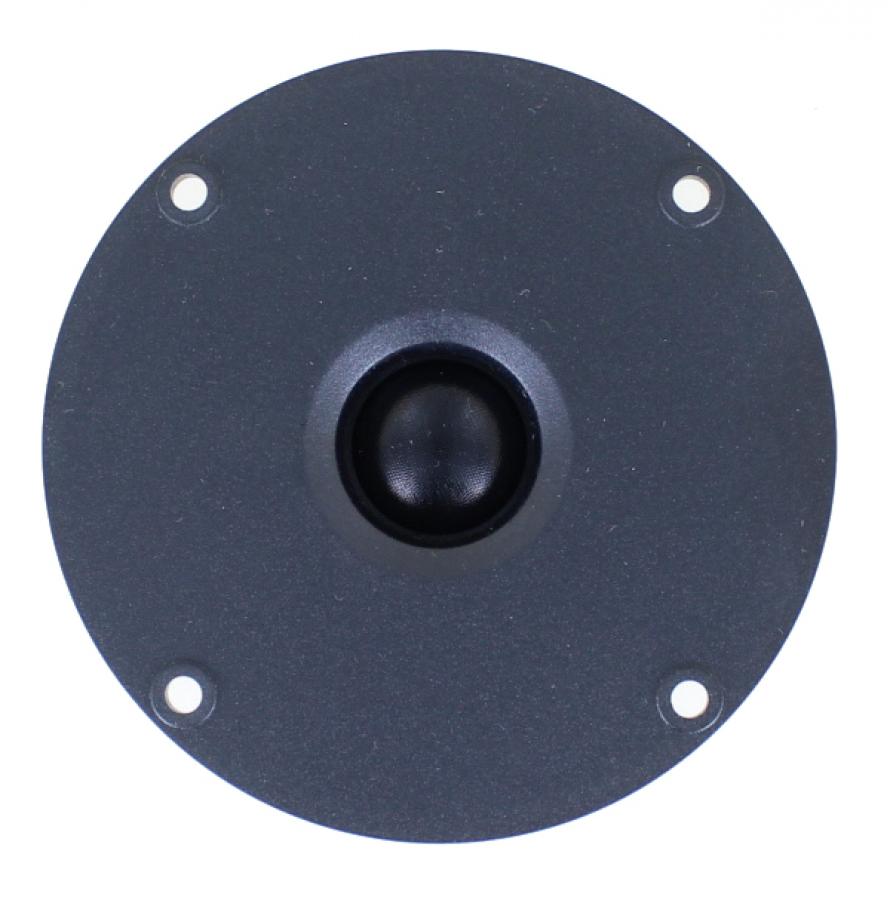

- 3/4" Textile Dome Diaphragm
- Wide Dispersion
- Dual Rear Chamber
- Vented Pole Piece
- Neodymium Magnet
- Replaces the classic D2008/8512 tweeter
- Quick Connects - QC110 for negative and QC205 for positive
