ScanSpeak Ellipticor D2404/5520-00 24mm Elliptical Dome Tweeter- 4 ohm
Overview
ScanSpeak Ellipticor D2404/5520-00 24mm Elliptical Dome Tweeter- 4 ohm
With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D2404 has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIVE sound which makes D2404/552000 one of the very best tweeters on the market!

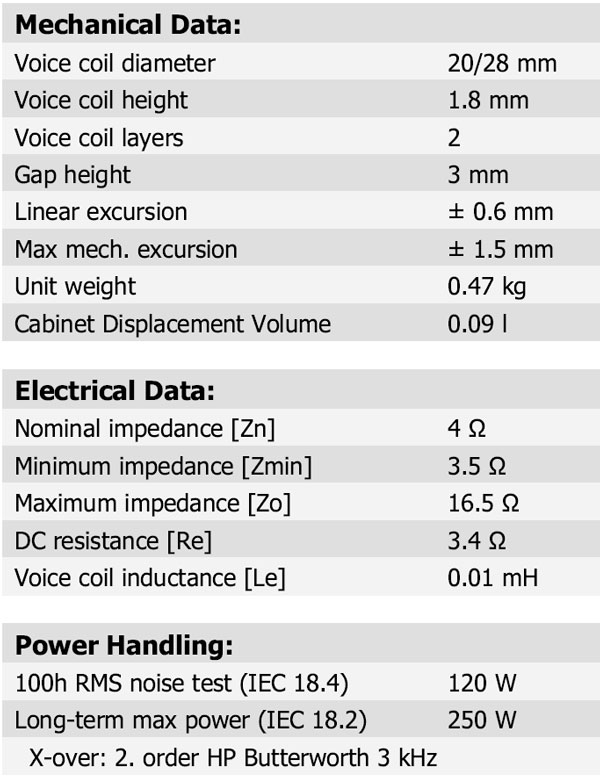

| Fs: | 550 Hz |
| Re: | 3.4 Ω |
| Qt: | 0.83 |
| Sensitivity: | 91 dB |
| VAS: | 0.01 ltr. |
| Sd: | 4.6 cm² |
| Bl: | 2 Tm |
Factory Box - Packed in Pairs - Drivers Sold EACH
Manufacturer Datasheet PDF

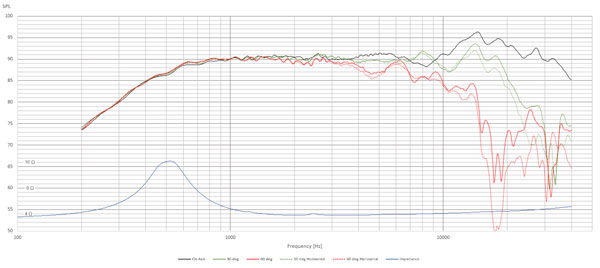

The dotted green and red lines are the 30 & 60 degree off-axis measurements with the dome positioned horizontally. The solid green and red lines are the 30 & 60 degree off axis measurements with the dome positioned vertically.
