ScanSpeak Ellipticor D3404/5520-00 38mm Elliptical Dome Tweeter
ScanSpeak Ellipticor D3404/5520-00 38mm Dome Tweeter - Each
With the Ellipticor family and introduction of an elliptical voice coil and magnet gap, a long tradition of circular motor structures and their inherent breakup behavior has been broken. In combination with the powerful SD AirCirc magnet system, the D3404 has high sensitivity, very low distortion, and an extremely fast response to transients. Above all, the TRUE TO LIVE sound makes the D3404/5520 one of the very best and most advanced tweeters on the market!
KEY FEATURES:
· Elliptic voice coil
· Low mechanical losses
· High sensitivity (SPL)
· AirCirc optimized magnet system
· Unusually low distortion
· Flexible optics with replaceable decor ring
Manufacturer Datasheet PDF

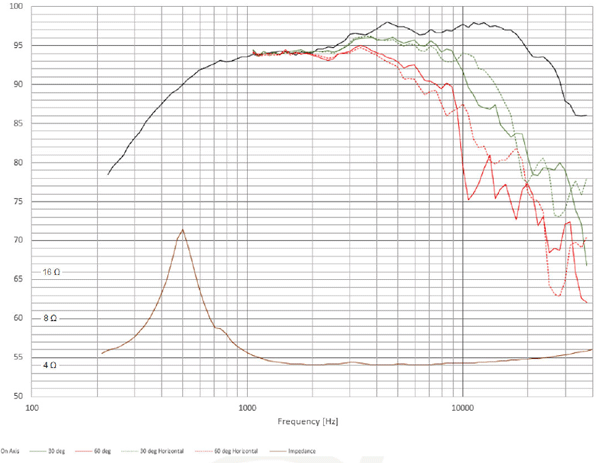

The dotted green and red lines are the 30 & 60 degree off-axis measurements with the dome positioned horizontally. The solid green and red lines are the 30 & 60 degree off axis measurements with the dome positioned vertically.
Mechanical Drawing
Factory Box - Packed in Pairs - Drivers Sold EACH

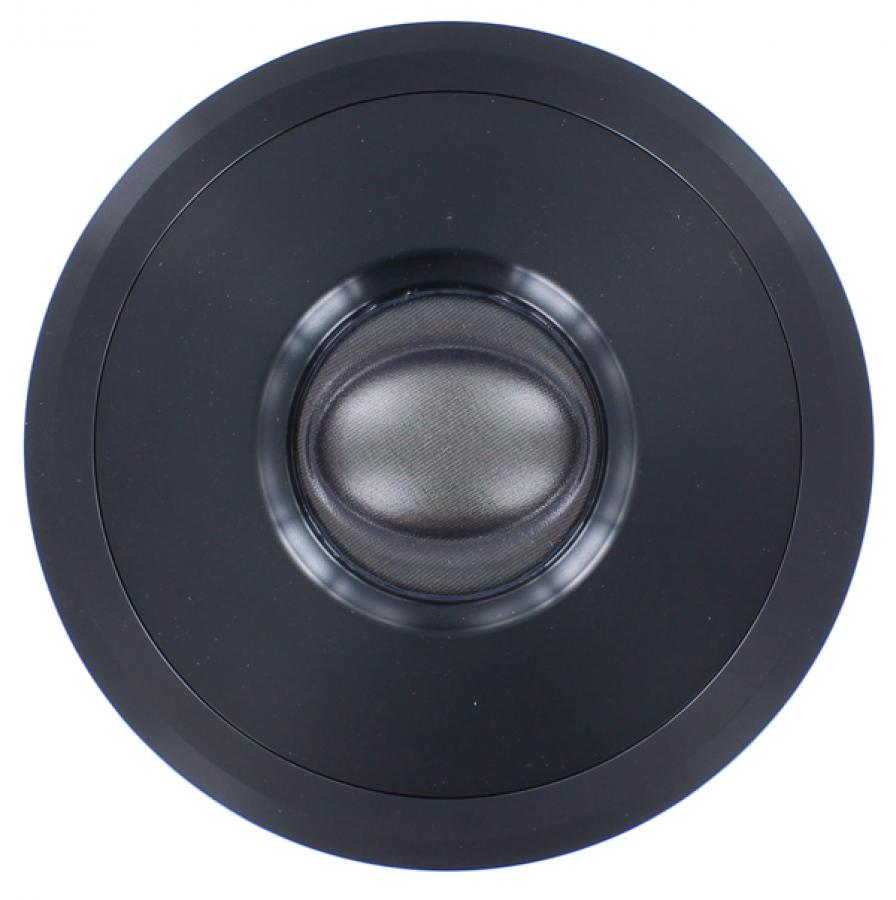

Orient the D3404 to your liking, see response curve above for variance in off axis measurement.
Powerfull AirCirc Magnet System

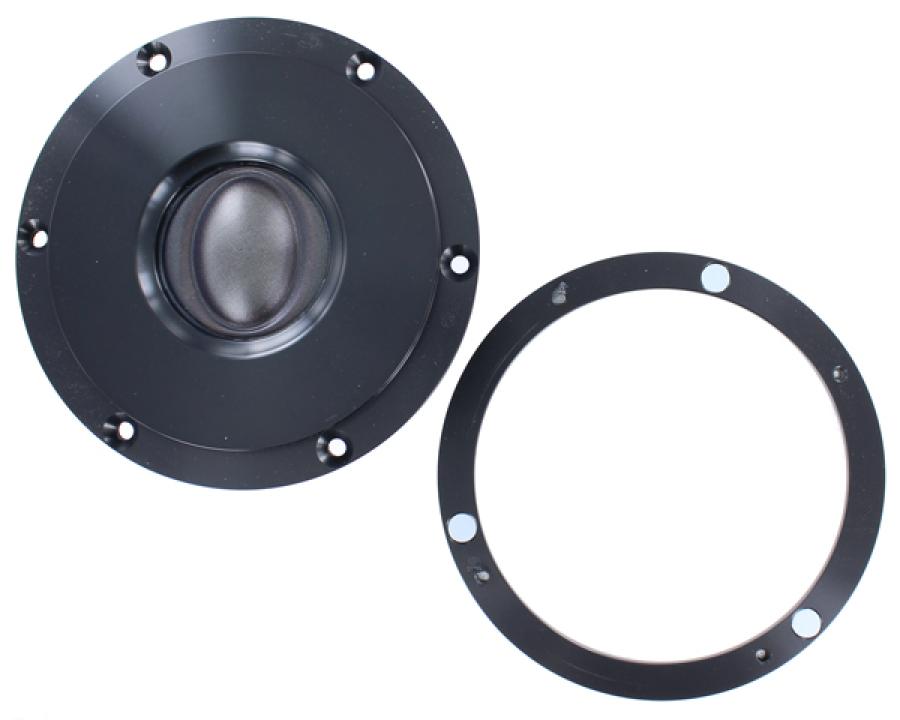

Shown with magnetic decore ring removed, exposing 6 mounting holes.
