Wavecor TW030WA10 30mm Textile Dome Tweeter- 8 ohm

Wavecor TW030WA10 30mm Textile Dome Tweeter- 8 ohm- 104mm- 91dB

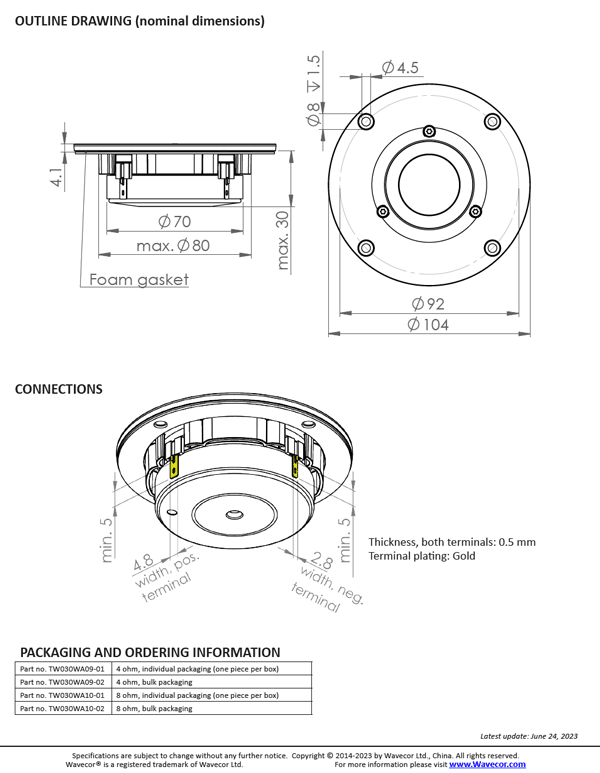

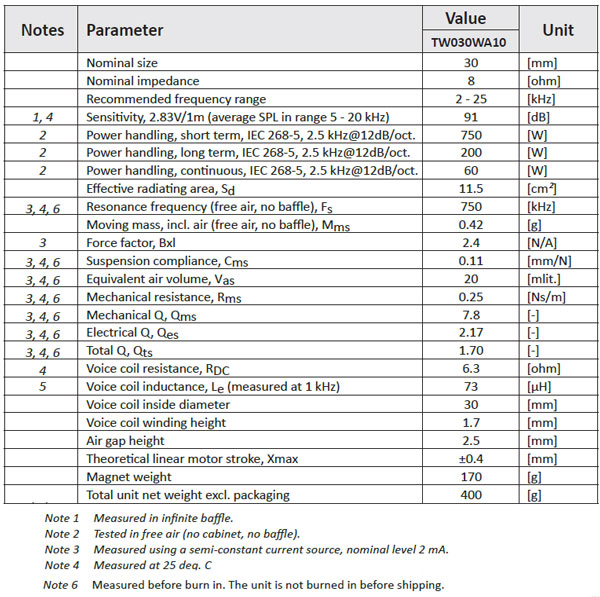

Spec Sheet PDF

Special purchase from OEM.  OEM's part number Rawmech8013.
Even cheaper at a full case of 40 pieces!

The TW030WA10 tweeter is designed for applications requiring the highest level of performance, with extended and linear high frequency response and best consistency. 30mm tweeter with a curved faceplate that was designed for applications requiring extremely low resonance frequency and distortion. Thanks to the extensive internal venting between three internal cavities, no air inside is trapped. This feature extends the usable frequency range to that lower than most tweeters. Tweeters used to require a separate rear chamber in order to obtain low resonance frequency. Not any longer. By designing the internal parts to accommodate new larger internal volumes, the TW030WA09/10 offer an unusually low resonance frequency. Fs 750 Hz. Used in loudspeakers like the Loire Top by the lautsprechershop.de.

• 30 mm design with controlled off-axis and power response, high power handling, and low resonance frequency
• Internal volumes for low resonance frequency and distortion
• Precision-coated textile diaphragm for improved consistency and high-frequency extension
• Optimized dome shape for ultra high frequency cutoff
• Vented voice coil former for reduced distortion and compression
• Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
• Built-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
• Flexible lead wires for higher power handling and larger excursion
• Gold plated terminals to prevent oxidation and ensure long-term reliable connection
• Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
