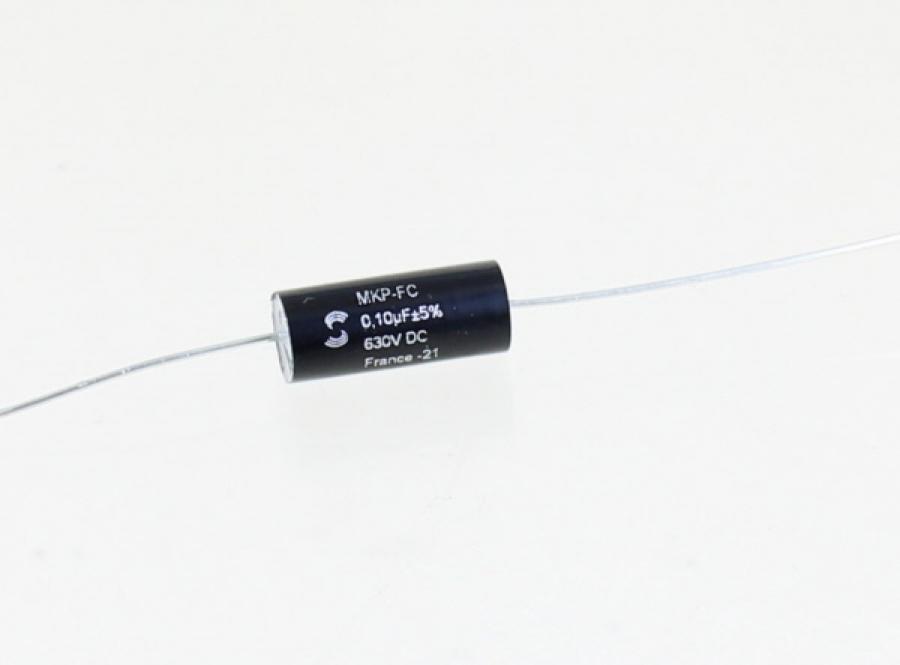

Solen 0.1 mfd Fast Cap 630V PPE Series

Solen Fast Cap 0.10mfd 630v, 0.0001ohms DF, 9mm D x 17mm L

Solen Capacitors PDF

Type : Metallized Film Capacitor.

Dielectric : Polypropylene Film.

Electrodes : Aluminum Metallized, Vacuum Deposited.

Construction : Round Tubular “Square Aspect Ratio” Type, Axial Leads.

Winding : Bifilar Extended Metallized Film.

Contact : Non-Inductive, Zinc Thermally Sprayed Extended Film.

Coating : Black Plastic Tape Wrapped, Grey Epoxy Resin Sealed.

Leads : Tinned Plated Oxygen Free Pure Copper.

• Special Tubular “Square Aspect Ratio” Type Construction.
• High Conductivity Metallization.
• Soldered Lead Termination.
• High Current Capacity.
• High Frequency and Temperature Stability.
• Excellent Long Term Electrical and Mechanical Reliability.
• No Short Term and / or Long Term Signal Aberration.
• Unrivaled Handling of Fast High Current Pulse.
• Very Low Dielectric Absorption Factor.
• Very Low Equivalent Series Resistance.
• Very Low Inductance.
• Very High Resonant Frequency.
• Ultra Linear Impedance Characteristics.
• Very Low Dissipation Factor.
• Very High Insulation Resistance.
