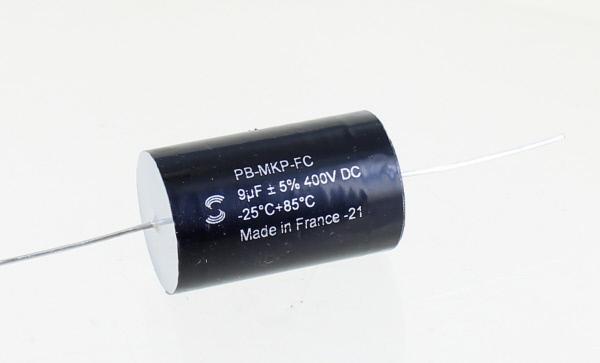

Solen PB 9 mfd Metalized Polypropylene Fast Capacitor 400V

Solen PB 9 mfd Metalized Polypropylene Fast Capacitor 400V

Solen Capacitors PDF

Technical Data

• Tolerance: ±5 %
• Dielectric Constant: 2.1 εr, non-polar dielectric.
• Dielectric Absorption Factor: ≤ .05 % @ 20 °C.
• Equivalent Series Resistance: Extremely low.
• Self Inductance: ≤ 12 nH with 6 mm leads.
• Dissipation Factor: Extremely low.
• Insulation Resistance: ≥ 100,000 MΩ @ 20 °C.
• Temperature Coefficient: -200 × 10-6 / °C.
• Temperature Range: -55 °C to +85 °C.
• Test Voltage: 1.5 × Vr for 5 sec.
• Rated Voltage: 400Vdc/250Vac
• Dielectric Thickness: 5 μm
• Metal Layers Thickness: 0.04 μm
• Metal Layers Conductivity: 1 - 2 Ω / cm2

General Information

• Type: Metallized Film Capacitor.
• Dielectric: Polypropylene Film.
• Electrodes: Aluminum Metallized, Vacuum Deposited.
• Construction: Round Tubular "Square Aspect Ratio" Type, Axial Leads.
• Winding: Bifilar Extended Metallized Film.
• Contact: Non-Inductive, Zinc Thermally Sprayed Extended Film.
• Coating: Black Plastic Tape Wrapped, Grey Epoxy Resin Sealed.
• Leads: Tinned Plated Oxygen Free Pure Copper.

Features

• Special Tubular "Square Aspect Ratio" Type Construction.
• High Conductivity Metallization.
• Soldered Lead Termination.
• High Current Capacity.
• High Frequency and Temperature Stability.
• Excellent Long Term Electrical and Mechanical Reliability.
• No Short Term and / or Long Term Signal Aberration.
• Unrivaled Handling of Fast High Current Pulse.

Electrical Performance

• Very Low Dielectric Absorption Factor.
• Very Low Equivalent Series Resistance.
• Very Low Inductance.
• Very High Resonant Frequency.
• Ultra Linear Impedance Characteristics.
• Very Low Dissipation Factor.
• Very High Insulation Resistance.
