Hypex Nilai500DIY 500W Mono Amplifier Kit
Manufacturer: Hypex Electronics
Product ID: Nilai-Mono
Price:
$1,199.00
Overview
Hypex Nilai500DIY 500W Mono Amplifier Kit
Hypex Nilai500DIY 500W Mono Amplifier Kit
Easy-to-assemble DIY kit that requires no soldering or special tools! Assembly instructions in box.
The Nilai500DIY is the long-awaited successor to the acclaimed NC400. Its polished shiny exterior is true reflection of what is to be found inside. The engine room houses a brand new control-loop topology that really boosts performance to the next level. It outperforms Ncore by not less than 10 times!
The module comes with a fully discrete buffer stage and on-board voltage regulators, just like the NC400 it’s replacing. Together with carefully selected high-grade components, the Nilai500DIY is our best sounding amplifier to date. We have created a truly special technique which sets a new benchmark for high-end audio applications and is a truly unique amplifier module for our DIY community.
Combining the Nilai500DIY with the matching PS500DIY will result in the best possible ready-to-go DIY-experience possible!
With the easy to follow instructions you will be able to realize a high end power amplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD PreAmplifier kit you can create a complete set of superbly sounding equipment.
All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5 mm hex nut driver (or combination plier) • 7 mm hex nut driver (or combination plier) • 3.5 mm flat type screwdriver
Mono Kit Instructions PDF
Nilai 500DIY Datasheet
Nilai PS500DIY Datasheet
Nilai 500DIY 500W Mono Kit YouTube Video: How to build the Nilai500DIY 500W mono kit
Nilai® Class D technology is here!
Warranty: 5 years / 20.000h
Easy-to-assemble DIY kit that requires no soldering or special tools! Assembly instructions in box.
The Nilai500DIY is the long-awaited successor to the acclaimed NC400. Its polished shiny exterior is true reflection of what is to be found inside. The engine room houses a brand new control-loop topology that really boosts performance to the next level. It outperforms Ncore by not less than 10 times!
The module comes with a fully discrete buffer stage and on-board voltage regulators, just like the NC400 it’s replacing. Together with carefully selected high-grade components, the Nilai500DIY is our best sounding amplifier to date. We have created a truly special technique which sets a new benchmark for high-end audio applications and is a truly unique amplifier module for our DIY community.
Combining the Nilai500DIY with the matching PS500DIY will result in the best possible ready-to-go DIY-experience possible!
With the easy to follow instructions you will be able to realize a high end power amplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD PreAmplifier kit you can create a complete set of superbly sounding equipment.
All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5 mm hex nut driver (or combination plier) • 7 mm hex nut driver (or combination plier) • 3.5 mm flat type screwdriver
Mono Kit Instructions PDF
Nilai 500DIY Datasheet
Nilai PS500DIY Datasheet
Nilai 500DIY 500W Mono Kit YouTube Video: How to build the Nilai500DIY 500W mono kit
Nilai® Class D technology is here!
- Ultra Low Distortion
- Very Low Idle Power
- Very Low Noise
- Very Low Output Impedance
- Incorporates Audiophile Components
Features
- Nilai 500 Class D amplifier module
- Transparent, fully discrete input circuitry
- HxR high performance voltage regulation
- Differential inputs with high common-mode impedance
- Overcurrent protection
- Supply overvoltage/undervoltage protection on all rails
- 2Ω stable for use with a wide range of speakers
Specifications
- THD+N: 0.00015% (-116 dB) @ 100W / 4Ω / 20 – 20.000 Hz
- 260W @ 8Ω, 1 kHz, THD < 1%
- 525W @ 4Ω, 1 kHz, THD < 1%
- 500W @ 2Ω, 1 kHz, THD < 1%
- Frequency response: 0-70 kHz
- Output noise: 9.5µV @ 11.8 dB gain
- Gain adjust in three steps: 11.8 dB, 21.8 dB and 27.8 dB
- Signal to Noise: 134 dB
- Idle power: 2.25W
Superior Voltage Regulation
The Nilai 500 power amplifier utilizes HxR series regulators. Power supply regulation is key in achieving the very best amplifier performance. HxR series regulators are for performance critical audio applications, exceeding industry standard integrated circuits.

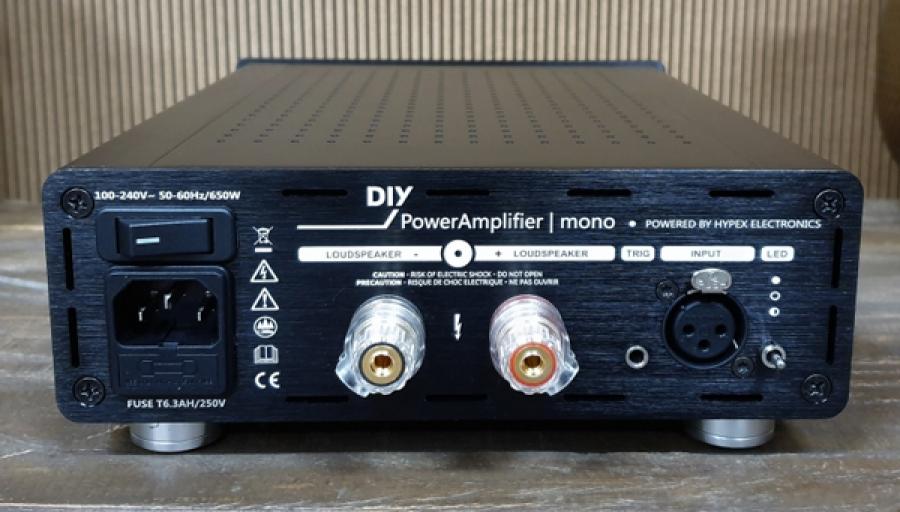

Inputs- 1 x Balanced XLR
- 1 x Trigger 12V
- 1 x Goldplated Binding post Set (Banana plug, Spade plug or Bare wire)

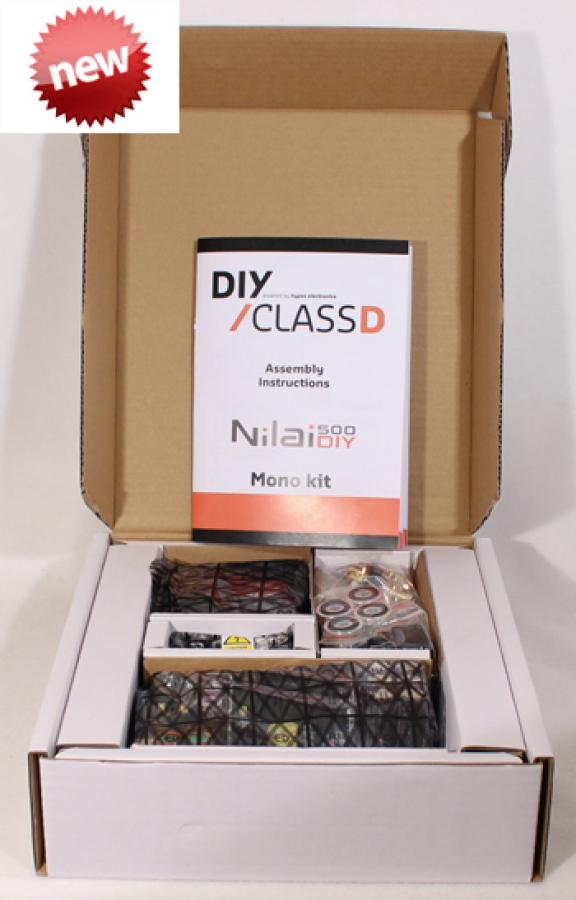

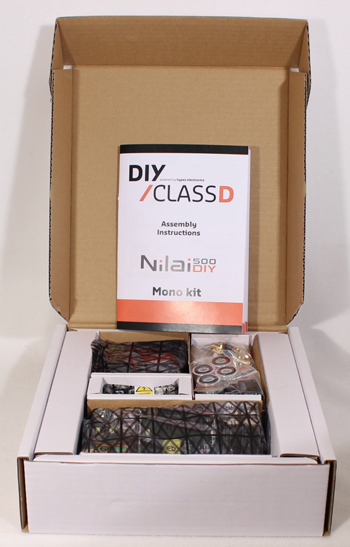

This kit contains:

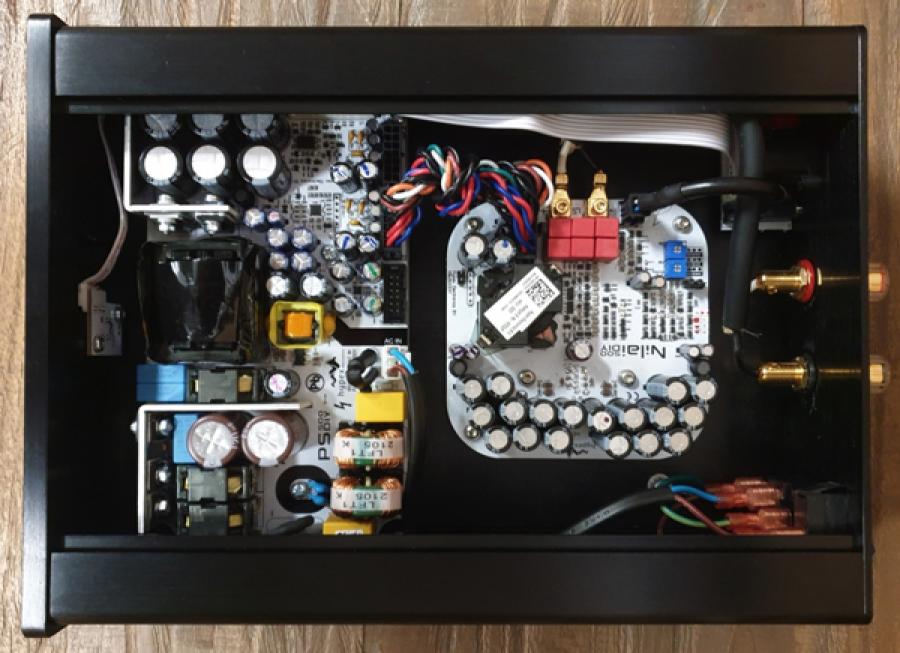

- Complete DIYclassD Nilai500DIY mono case “matte black”
- Complete internal cable harness

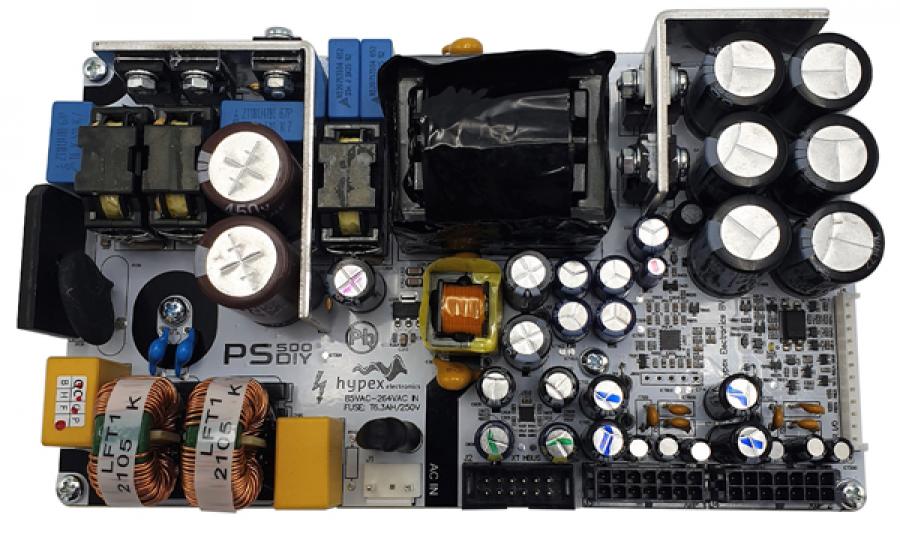

- PS500DIY power supply

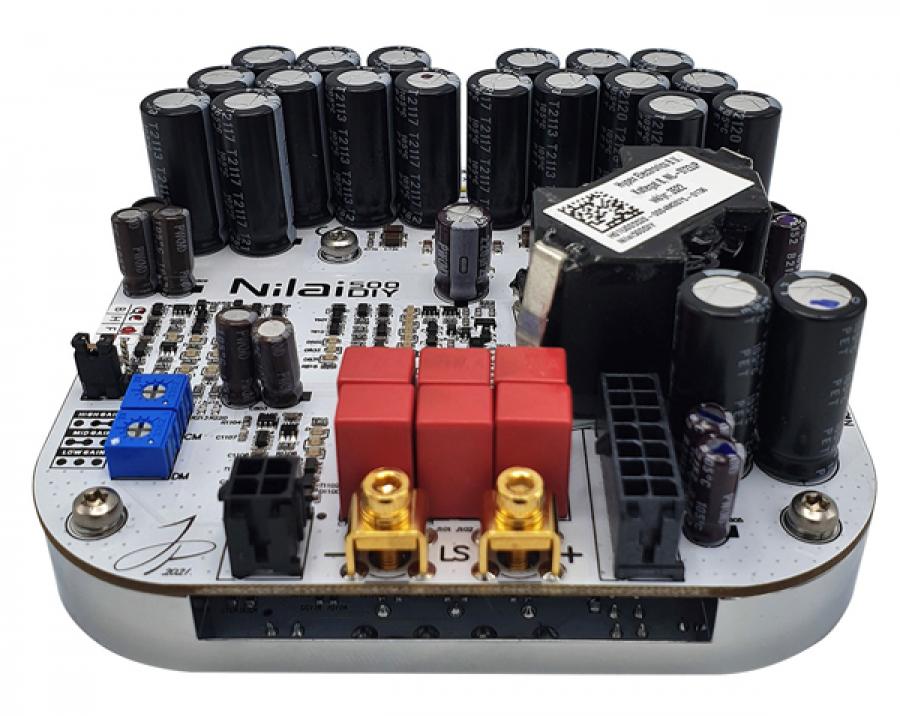

- Nilai500DIY amplifier module
- Inputboard & Frontboard
- All needed mounting materials
- Assembly instruction
- 1.5mm Allen key
- 2.5mm Allen key
- TX-10 Torx key
- TX-20 Torx key
Warranty: 5 years / 20.000h
