SpeakerPower SP1-300 Subwoofer Amplifier

Manufacturer: SpeakerPower

Be the first to review this product

Product ID: SP1-300

$399.00
~~$539.00~~

Add to wish list E-mail to a friend

Overview

SpeakerPower SP1-300 Subwoofer Amplifier

Drop-ships directly from USA factory

SpeakerPower SP1-300 Subwoofer Amplifier

Spec Sheet PDF

All amps ship with SpeakerPower's standard 'FLAT' program, which does not contain any set High-Pass filters or frequency boosts. Optional boost is available via the LF dial on the amp.

The LF dial is a +/-12dB peaking filter centered at 25 Hz. This control will allow you to boost or cut frequencies below 40Hz depending on your application. The 12 o'clock position is 0dB.

Mono Block Subwoofer Plate Amplifier

Home Theater (HT)

300W at 4 ohms

150W at 8 ohms

35 VRMS (49 Vp) at Hi-Z

Subwoofer DSP Controls

OVERVIEW:

This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
The MONOBLOCK architecture ensures consistent and powerful performance.

FEATURES:

3-MODE SWITCH

ON - Amplifier ON
AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
OFF-12V - Amplifier OFF, 12V TRIGGER enables amp

CONNECTIONS

3.5mm minijack 12V TRIGGER (IN / THRU)
DUAL RCA (Single-ended) Summing with LFE
XLR (Balanced) with Looping out (THRU)
IEC C13 AC mains connector
NL-4 SPEAKON auxiliary speaker connector

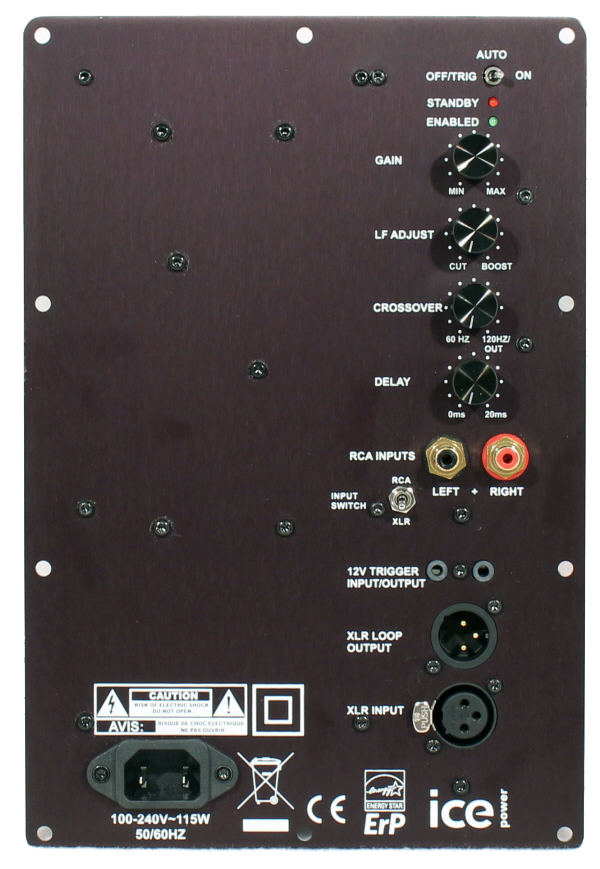

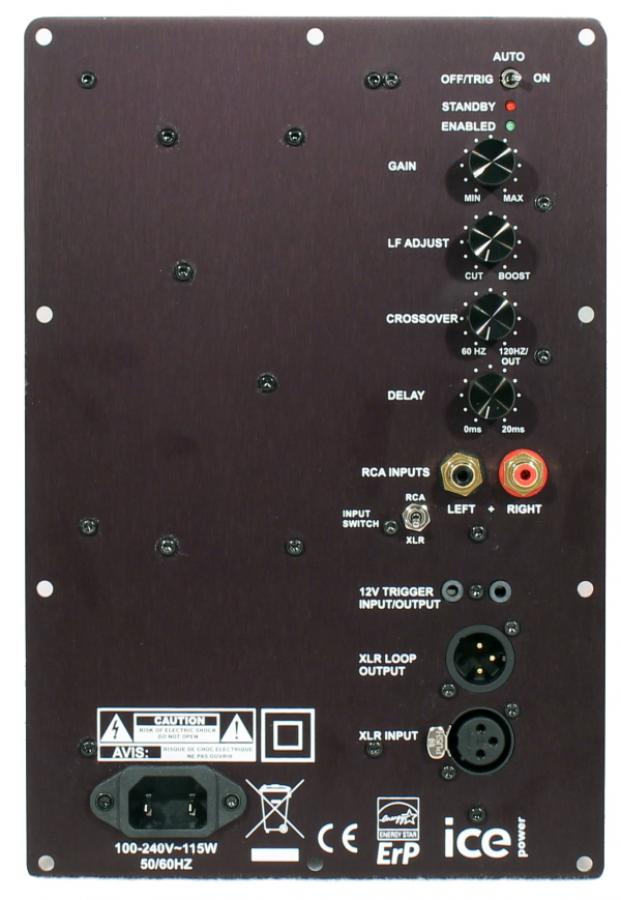

LED INDICATION

GREEN - ON, Amplifier ready to pass signal
RED - STBY, Amplifier is in low-power standby

ROTARY CONTROLS

GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
LF ADJUST - 25Hz Peaking Filter ("Bass Boost", CUT-12dB, BOOST+12dB)
X-OVER - 60Hz to OUT (500Hz)
DELAY - 0ms to 20ms

SPECIFICATIONS:

AMPLIFIER TOPOLOGY CLASS-D
POWER SUPPLY 300W
FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
AMPLIFIER GAIN 45dB
AC MAINS 100 - 265VAC 50/60Hz (Universal)
STANDBY POWER DRAW 1W
COOLING ALUMINUM HEATSINK
INPUT SENSITIVITY 316mV (at MAX GAIN)
INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
DIMENSIONS
HEIGHT 10.75 in. (273 mm)
DEPTH 2.0 in. ( 51 mm)
WIDTH 7.2 in. (183 mm)
WEIGHT 2.5 LBS (1.2 kg)
