SpeakerPower SP1-2400 Subwoofer Amplifier

This SpeakerPower amp is made to order. Typical lead time is two weeks once your order is placed.

SpeakerPower SP1-2400 Subwoofer Amplifier

Spec Sheet PDF

All amps ship with SpeakerPower's standard 'FLAT' program, which does not contain any set High-Pass filters or frequency boosts. Optional boost is available via the LF dial on the amp.

The LF dial is a +/-12dB peaking filter centered at 25 Hz. This control will allow you to boost or cut frequencies below 40Hz depending on your application. The 12 o'clock position is 0dB.

SpeakerPower Plate Amps Specifications PDF

SpeakerPower Plate Amps Manual PDF

Mono Block Subwoofer Plate Amplifier

Home Theater (HT)

STABLE at 1 ohm

2000W at 2 ohms

2400W at 4 ohms

1400W at 8 ohms

115 VRMS (162 Vp) at Hi-Z

Subwoofer DSP Controls

OVERVIEW:

• This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
• Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
• The MONOBLOCK architecture ensures consistent and powerful performance.

FEATURES:

3-MODE SWITCH

1. ON - Amplifier ON
2. AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
3. OFF-12V - Amplifier OFF, 12V TRIGGER enables amp

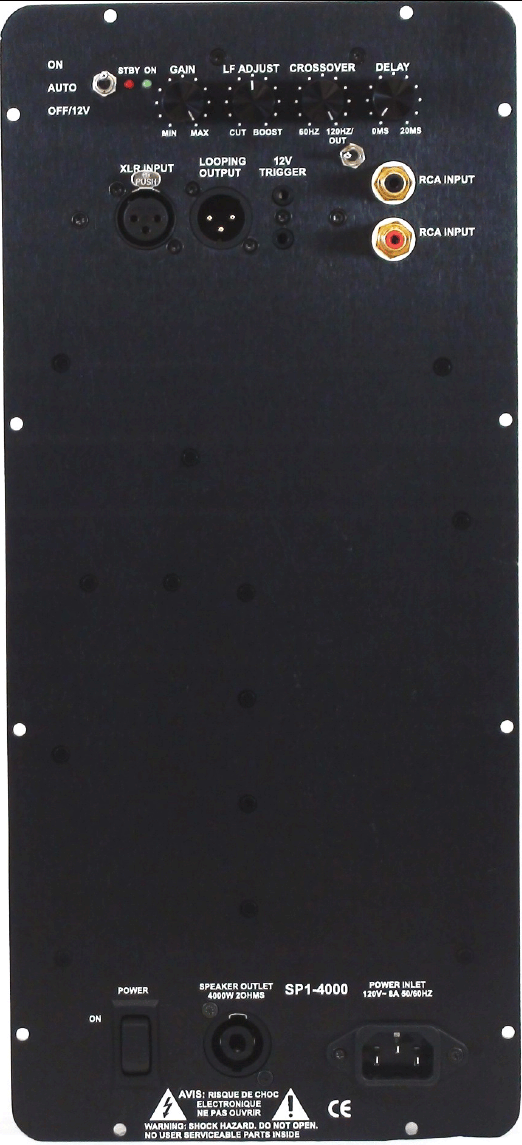

CONNECTIONS

• 3.5mm minijack 12V TRIGGER (IN / THRU)
• DUAL RCA (Single-ended) Summing with LFE
• XLR (Balanced) with Looping out (THRU)
• IEC C13 AC mains connector
• NL-4 SPEAKON auxiliary speaker connector

LED INDICATION

• GREEN - ON, Amplifier ready to pass signal
• RED - STBY, Amplifier is in low-power standby

 ROTARY CONTROLS

1. GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
2. LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
3. X-OVER - 60Hz to OUT (500Hz)
4. DELAY - 0ms to 20ms

SPECIFICATIONS:

• AMPLIFIER TOPOLOGY CLASS-D
• POWER SUPPLY 2400W
• FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
• AMPLIFIER GAIN 45dB
• AC MAINS  100 - 125VAC 50/60Hz (120VAC ONLY)
• STANDBY POWER DRAW 10W
• COOLING ALUMINUM HEATSINK
• INPUT SENSITIVITY 316mV (at MAX GAIN)
• INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
• OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
• DIMENSIONS
• HEIGHT  15.7 in. (399 mm)
• DEPTH   2.7 in. ( 67 mm)
• WIDTH    7 in.  (178 mm)
• WEIGHT 5 LBS (2.26 kg)
