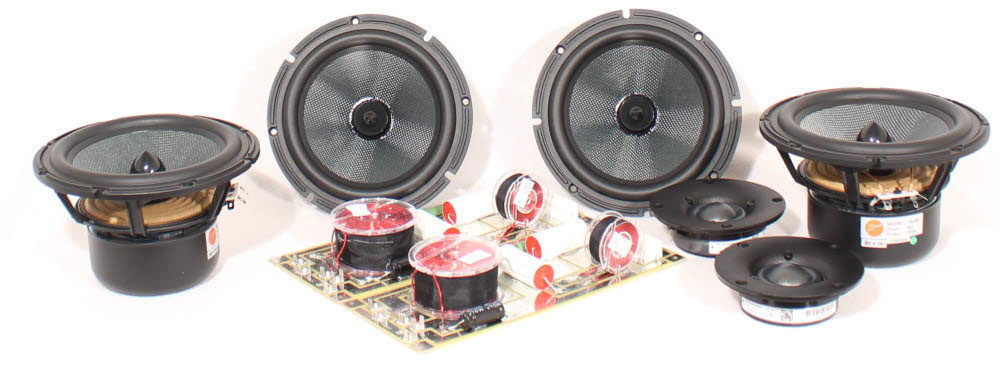

HiWave MTM Kit with L6-8R woofers and WaveCor Tweeter

"Hi-Wave" MTM Kit with L6-8R woofers and WaveCor Tweeter by Province Audio- Pair

New from Madisound and Province Audio Specialties!

This kit features two Hi-Vi L6-8R woven kevlar cone woofers paired with the WaveCor 1" dome tweeter in a 1.5 cf3 to 2.0 cf3 vented box.

• 1.5 cf3 vented box
• F3 ~ 51 Hz
• Impedance ~4 ohm

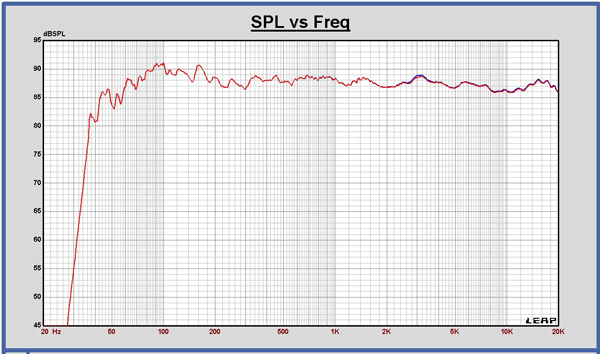

• 87 dB average SPL
• Crossover: ~2.2kHz, Acoustic

10% discount on woofers

You will construct your box @ 1.5 cf3 internal box volume with internal dimensions of 20"H x 12"W x 7.5"D, with crossovers mounted on side walls or externally. Single 3" x 6.5" straight vent. F3= 51 Hz. We don't have finished cabinets or box drawing at this time- so we leave it to your woodworking skills to make this cabinet. We've included a sample front panel layout with offset tweeter below if you want to work around that.

Crossovers will be fully assembled on Madisound 103B Boards using high quality MDL brand XPP film caps for C1 and C2 and our U.S. Coils Steel Laminate 18awg for L2 low pass inductor.

The woven cone on the L6-8R has exceptional midrange and vocal clarity, with smooth response and gradual roll off on the top end.

The WaveCor tweeter features a 30mm diaphragm and controlled off-axis and power response, high power handling, and low resonance frequency.

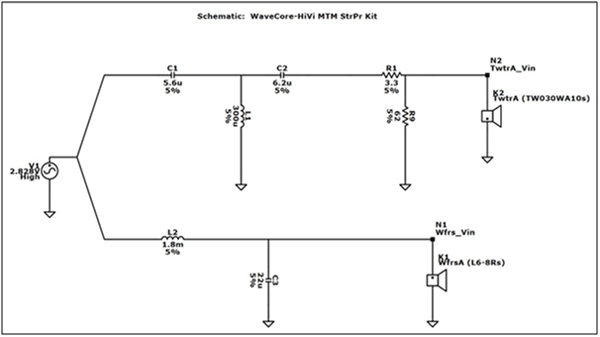

HiWave Crossover PDF

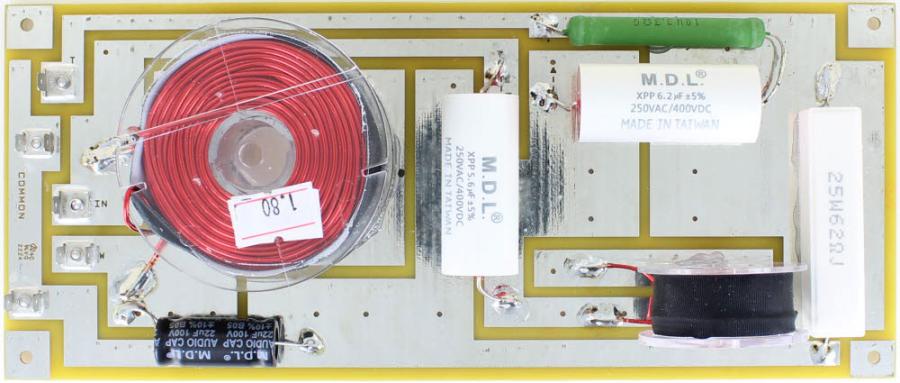

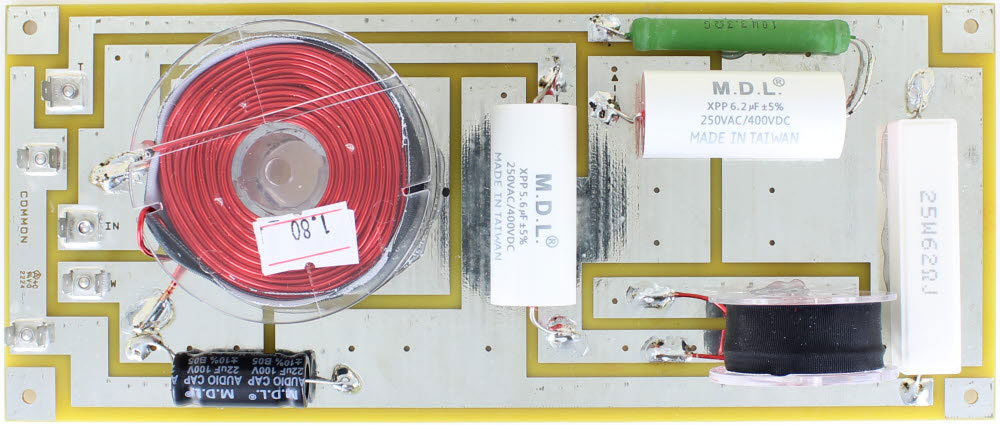

Crossovers fully assembled on our 103B board, one per channel for easy hookup.

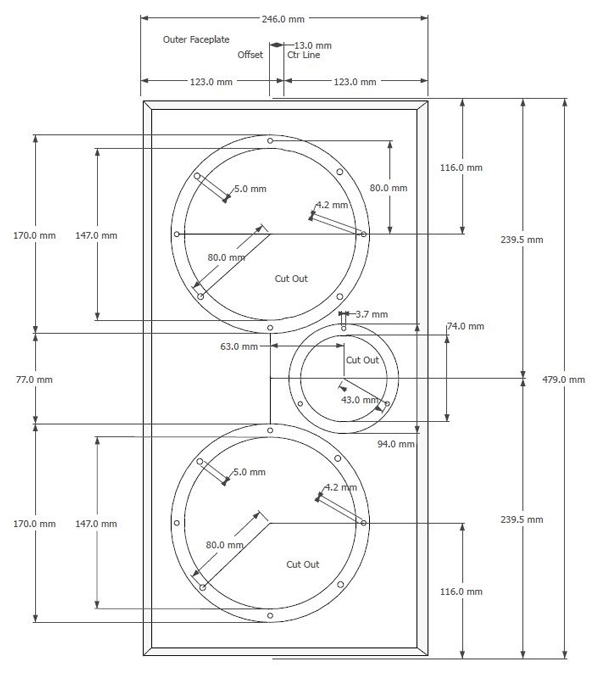

Sample Front Panel Layout:
