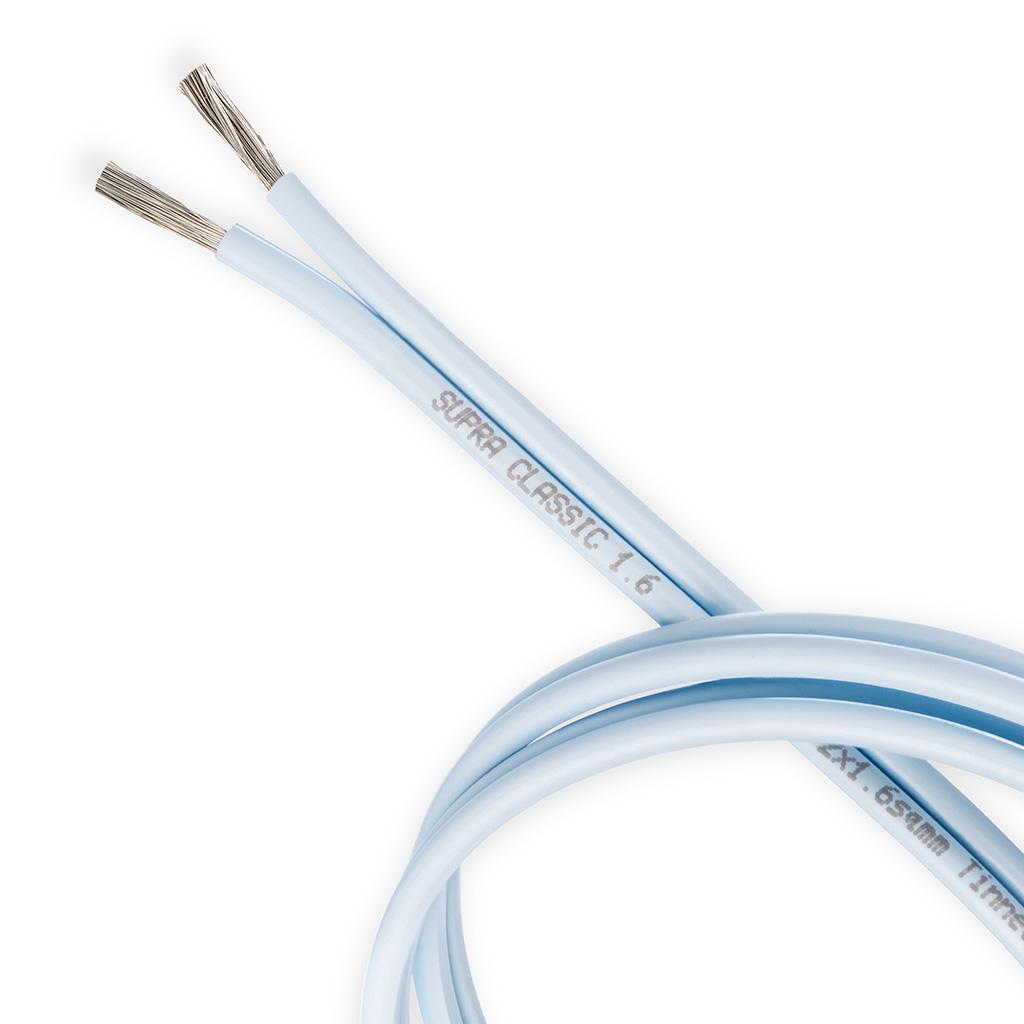

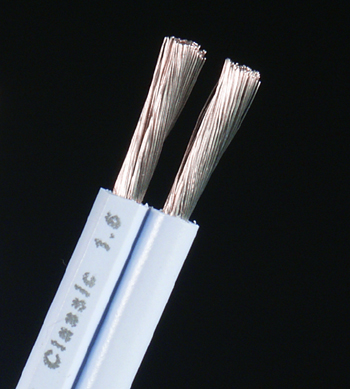

Supra Classic 1.6 Speaker Cable by the running foot
3.28 feet = 1 meter
15AWG, Tin plated OFC copper, Ion stable PVC Ice Blue Jacket
The SUPRA Classic series comprises highly flexible cables containing tin plated multi-stranded OFC copper of purity degree 5N, which means >99.999% pure, i.e. purer than five nines. The insulation is a special ion stable PVC which minimizes corrosion of the sonically benign tin surface. The tin contributes to a better sound quality by minimizing the skin-effect and making less current jumps between the wire surfaces.
This series covers all Hi-Fi applications from low power speakers, such as rear speakers of home theatre systems, to high power systems with long cable lengths. The Classic 1.6 is a good choice for loudspeaker internal wiring.
Technical Info
Mechanical Specifications
Crossection area |
1.6 / 15 |
mm2 / AWG |
Number of conductors |
2 |
pieces |
Number of strands per conductor |
204 |
pieces |
Strand diameter |
0.10 |
mm |
Conduktor material |
Tin plated oxygen free Copper |
|
Jacket |
Heat and age resistant PVC |
|
External size |
3.1 x 6.2 |
mm |
Weight |
44 |
g/m |
Electrical performance
Resistance |
10.8 |
Ohm/km |
Inductance |
0.40 |
µH/m |
