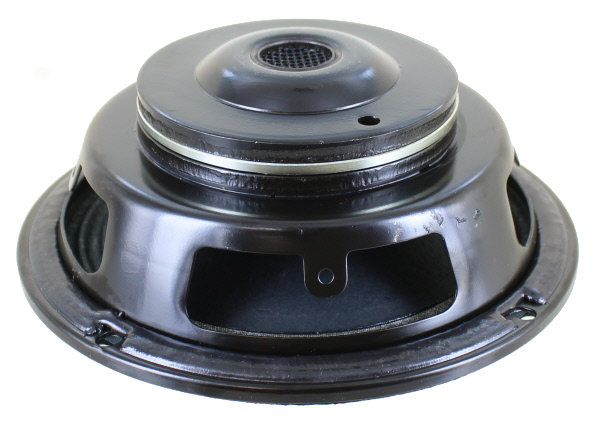

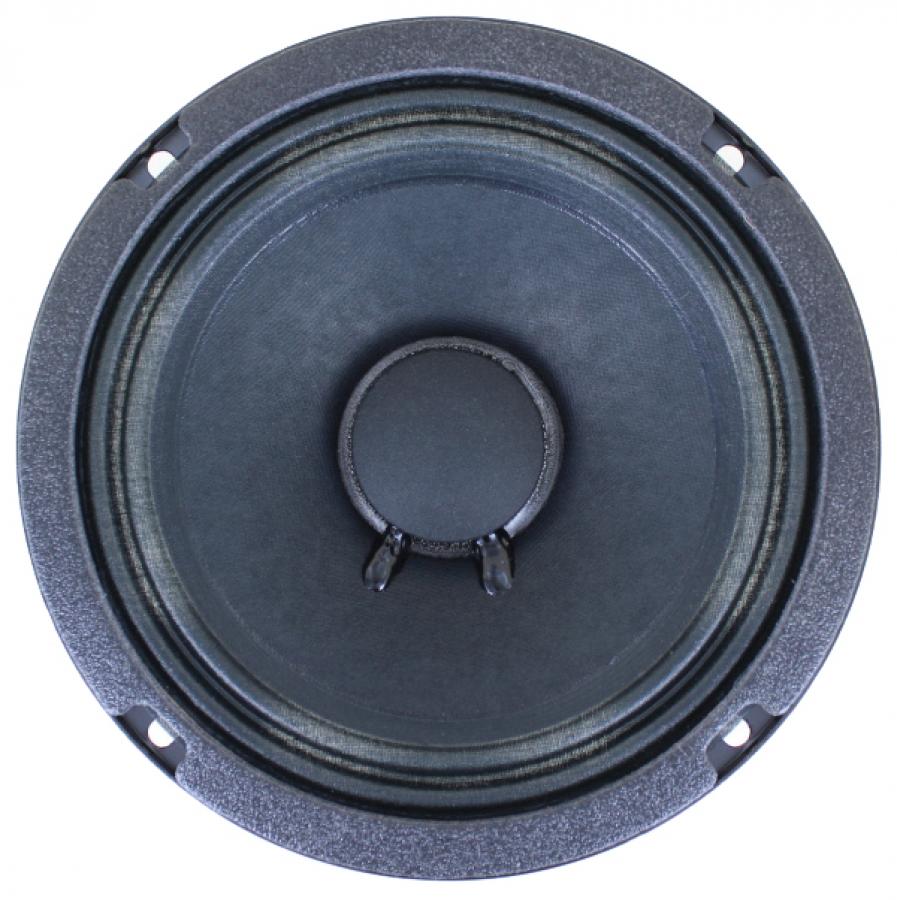

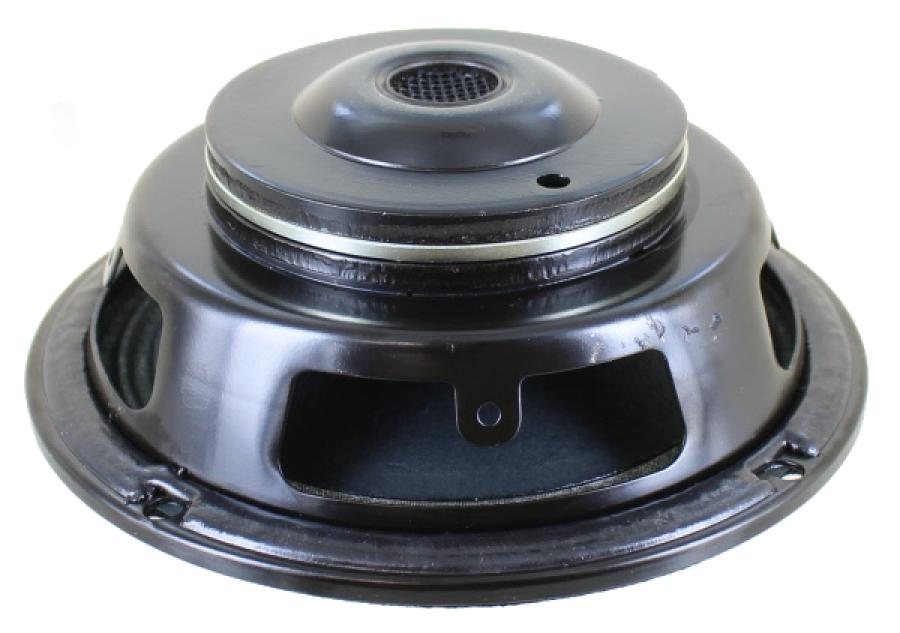

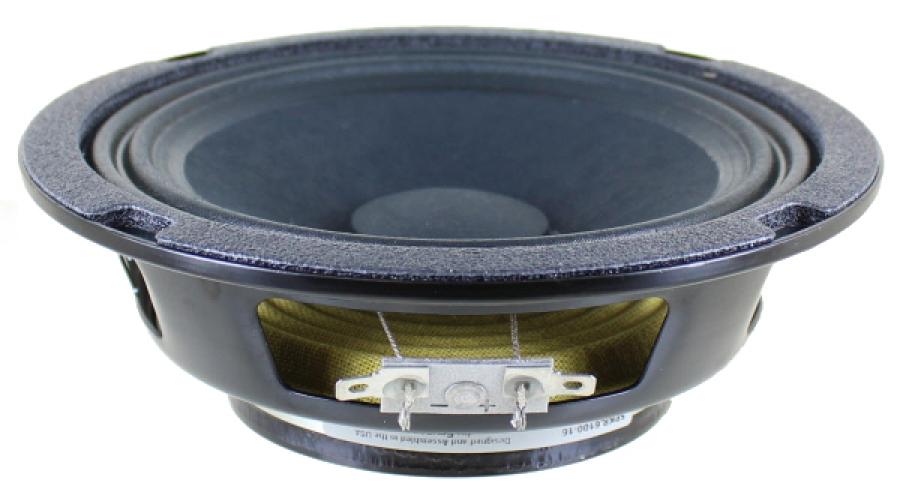

Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass
Manufacturer: Eminence
Product ID: Eminence AlphaLite-6B
Price:
$19.00
$115.00
Overview
Eminence AlphaLite-6B 16 ohm
Eminence 6100-16 6.5" Pro Midbass - 16 ohm* (Alphalite 6B) with Neodymium magnet
Used in the Scan-Speak & Eminence Alpha 95 MTM Speaker Kit!
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
The Eminence Alphalites are ideal for for high-output loudspeaker systems or for quickly and easily adding extended HF response to bass guitar systems. They have a paper cone, powerful neo motor, enclosed steel basket, and are built to withstand professional use.
*The 6100-16 is an OEM version of the AlphaLite
Yes, these are only $19.00/each and in perfect-brand new-never used condition! We aquired them through a surplus purchase from Dolby Labs at a great price.
Note on excursion specification: the voice coil is even hung with the top plate, thus the mathematical value of zero for the Xmax. They will Klippel test at about 3 mm one way.
Note on packaging: these speakers were supplied to the OEM customer in bulk packaging and will not have decorative beauty boxes. They will be packed in a plain cardboard box.
Features:
Used in the Scan-Speak & Eminence Alpha 95 MTM Speaker Kit!
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
The Eminence Alphalites are ideal for for high-output loudspeaker systems or for quickly and easily adding extended HF response to bass guitar systems. They have a paper cone, powerful neo motor, enclosed steel basket, and are built to withstand professional use.
*The 6100-16 is an OEM version of the AlphaLite
Yes, these are only $19.00/each and in perfect-brand new-never used condition! We aquired them through a surplus purchase from Dolby Labs at a great price.
Note on excursion specification: the voice coil is even hung with the top plate, thus the mathematical value of zero for the Xmax. They will Klippel test at about 3 mm one way.
Note on packaging: these speakers were supplied to the OEM customer in bulk packaging and will not have decorative beauty boxes. They will be packed in a plain cardboard box.
Features:
- Neodymium magnet
- Kapton former
- Copper VC wire
- Vented pole piece
- Paper Cone
- Cloth surround
- 16 ohm offers multiple driver opportunities
Possible box alignments:
- For two woofers in parallel for an 8 ohm load - 97dB at 1 watt, 117dB at 100 watts
0.25 to 0.3 cubic foot Sealed - 3dB down at 169Hz, 6dB down at 130Hz
0.6 cubic foot Vented - (2x) 3" diameter vent by 5" long, 3dB down at 80Hz
- For four woofers in parallel for a 4 ohm load - 100dB at 1 watt, 120dB at 100 watts, 125dB at 300 watts
0.5 to 0.6 cubic foot Sealed - 3dB down at 169Hz, 6dB down at 130Hz
1.3 cubic feet Vented - (4x) 3" diameter vent by 5" long - 3dB down at 80Hz
Mechanical Specifications:
- Outside 167.5mm (6.59”)
- Mounting hole 144.5mm (5.69”)
- Depth from back of flange 55.5mm (2.18”)
- Vented pole piece!
- Flange thickness 4.5mm (0.18”)
- Four oval opening bolt holes
- Solder tabs 5.28mm (0.2”)
- Polarity marked near the terminals
- RoHS Compliant
