Scan-Speak & Eminence Alpha 95 MTM Speaker Kit - Pair
Manufacturer: Madisound
Product ID: alpha_95
Price:
$349.00
$749.00
Overview
High efficiency speaker kit using the Scan-Speak Discovery H2606/9200 Horn Loaded 1" Textile Dome Tweeter and Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass drivers.
Alpha 95 MTM Speaker Kit - Pair
95db ~ 8ohm!
Flatpack cabinets are available directly through Speaker Hardware.
The Alpha 95 utilizes two Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass Drivers paired with a Scan-Speak Discovery H2606/9200 Horn Loaded 1" Textile Dome Tweeter in an easy to build, cost effective, & high efficiency speaker kit.
Consider these for stereo listening or high impact home theater. They can be driven with the lowest powered amps offering warmth and immediacy, while also having the power handling and output to blow you out of the room with higher powered amps. Easy to blend with a subwoofer - cross over well under 100Hz. While not weatherproof, they also have the capabilities for outdoor/open-air/large room applications.
We made a special surplus purchase of the Eminence drivers, so are able to offer them at a significant discount. The Scan-Speak H2606/9200 tweeters are also being offered at a promotional price, making this design one of the best DIY speaker deals going! Singles can be purchased for 1/2 the pair price.
Each Alpha 95 Kit Includes:
Specifications:
Cabinet Info:
Madisound Crossover Info
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit board.
The series tweeter caps are Solen Poly Fast Caps. A small amount of attenuation is added via Mundorf MOX resistors, and the parallel inductor is a Sidewinder 16awg air core.
The series woofer inductor is a Sidewinder 16awg air core, with a polycap in the parallel circuit.
Upgrade options are available from the drop down menu. Kit with crossover parts only (no circuit boards, no assembly) also available.
Alpha 95 Design Details
Alpha 95 Crossover Schematic

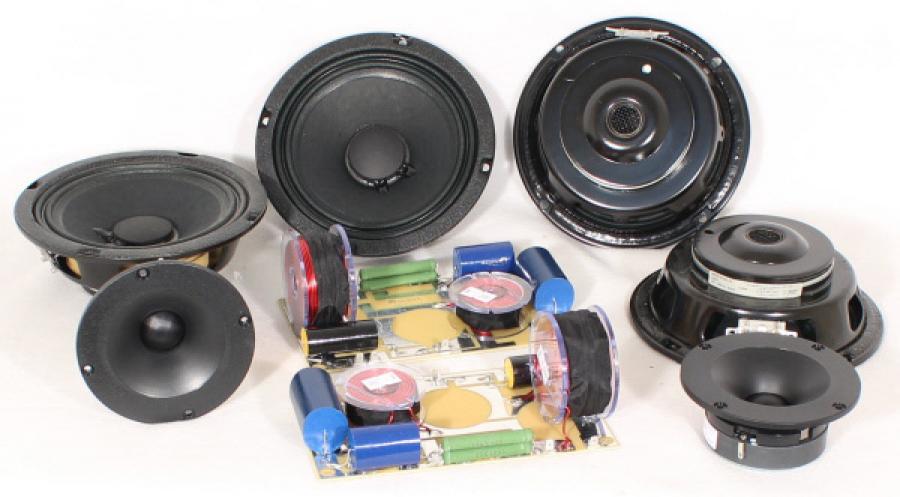

Madisound Alpha 95 Kit Pair Contents

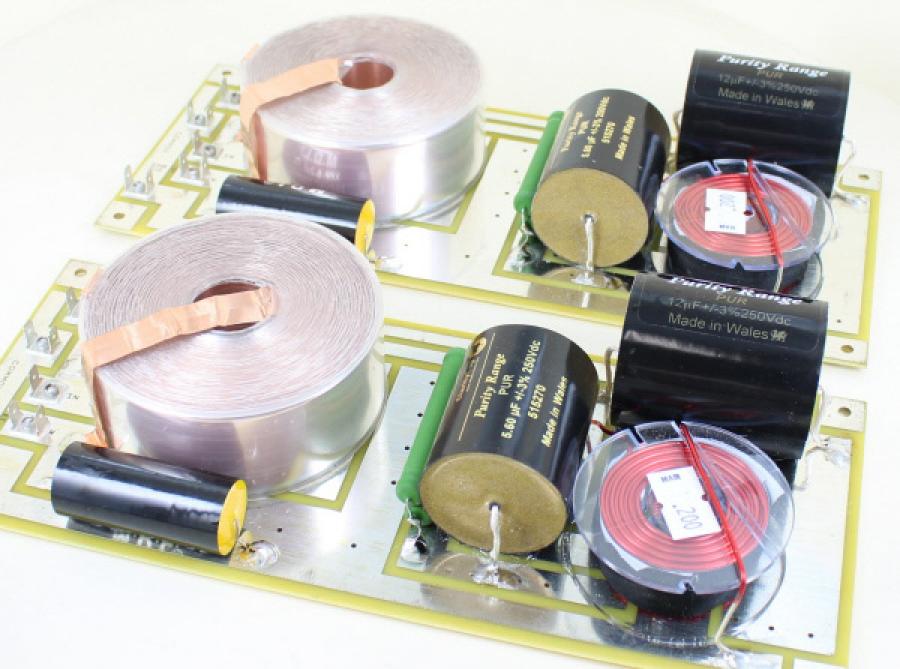

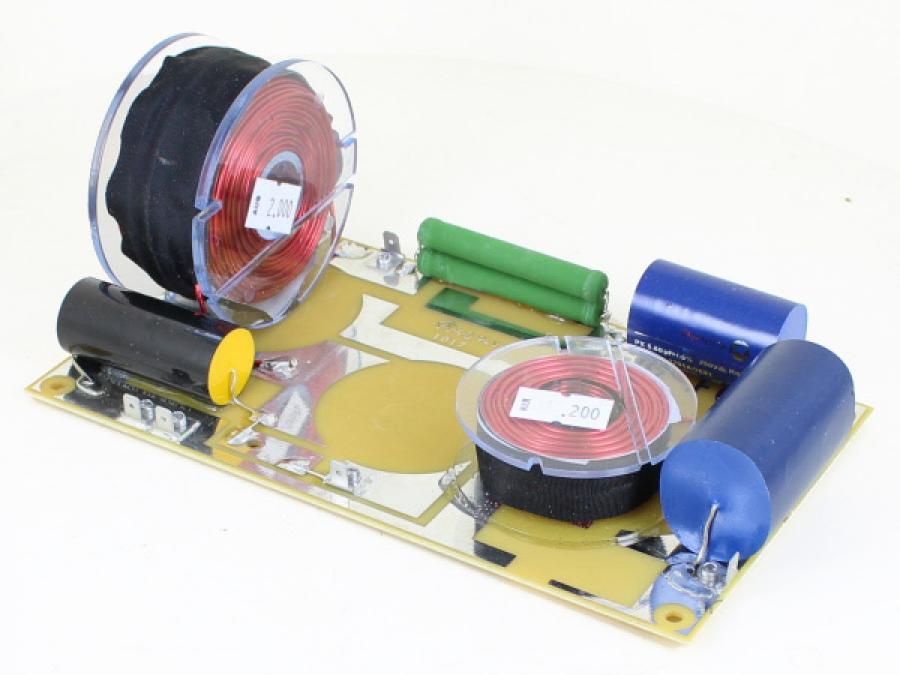

Madisound Professionally Asssembled Crossover
Madisound Professionally Asssembled Premium Crossovers
Scan-Speak Discovery H2606/9200 Horn Loaded 1" Textile Dome Tweeter
Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass

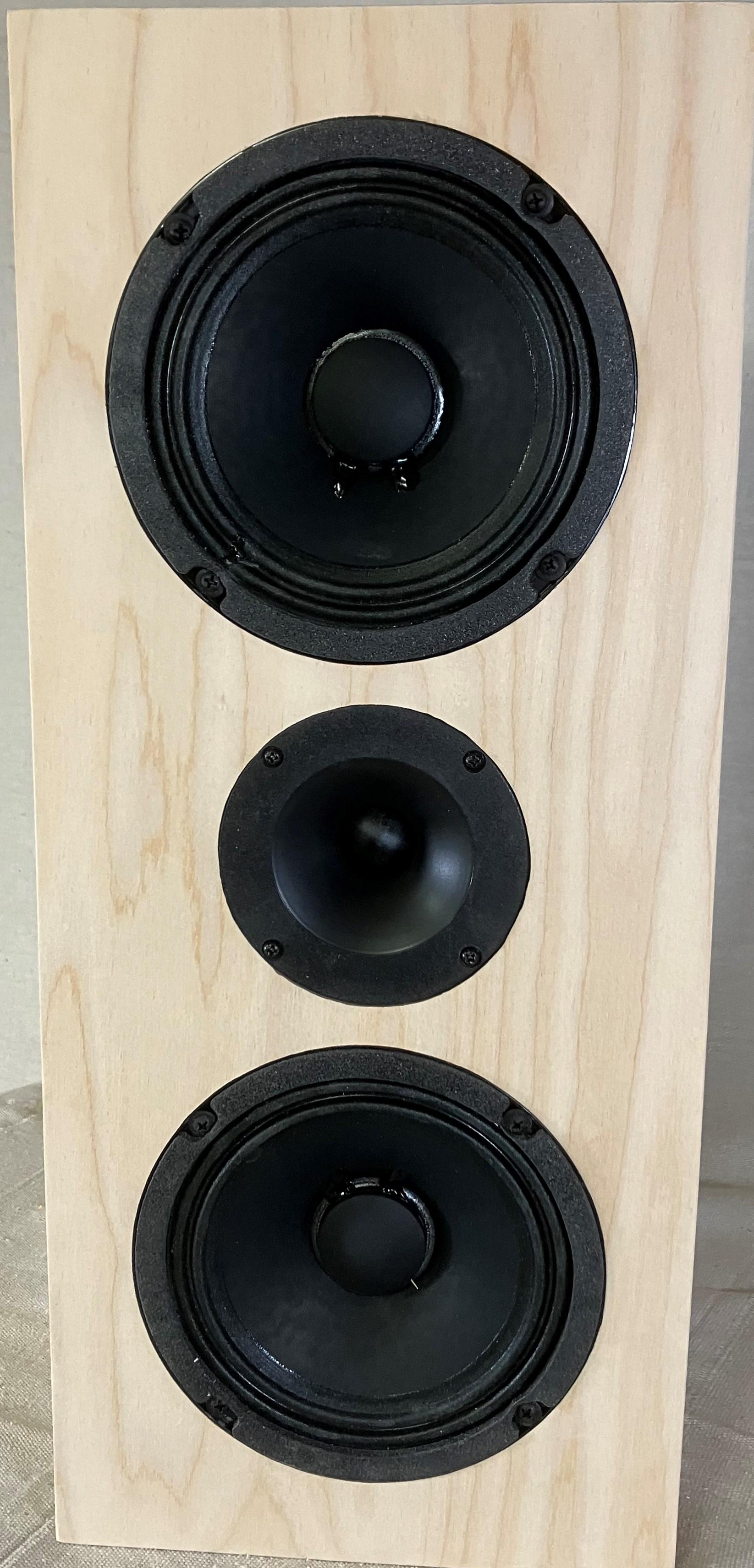

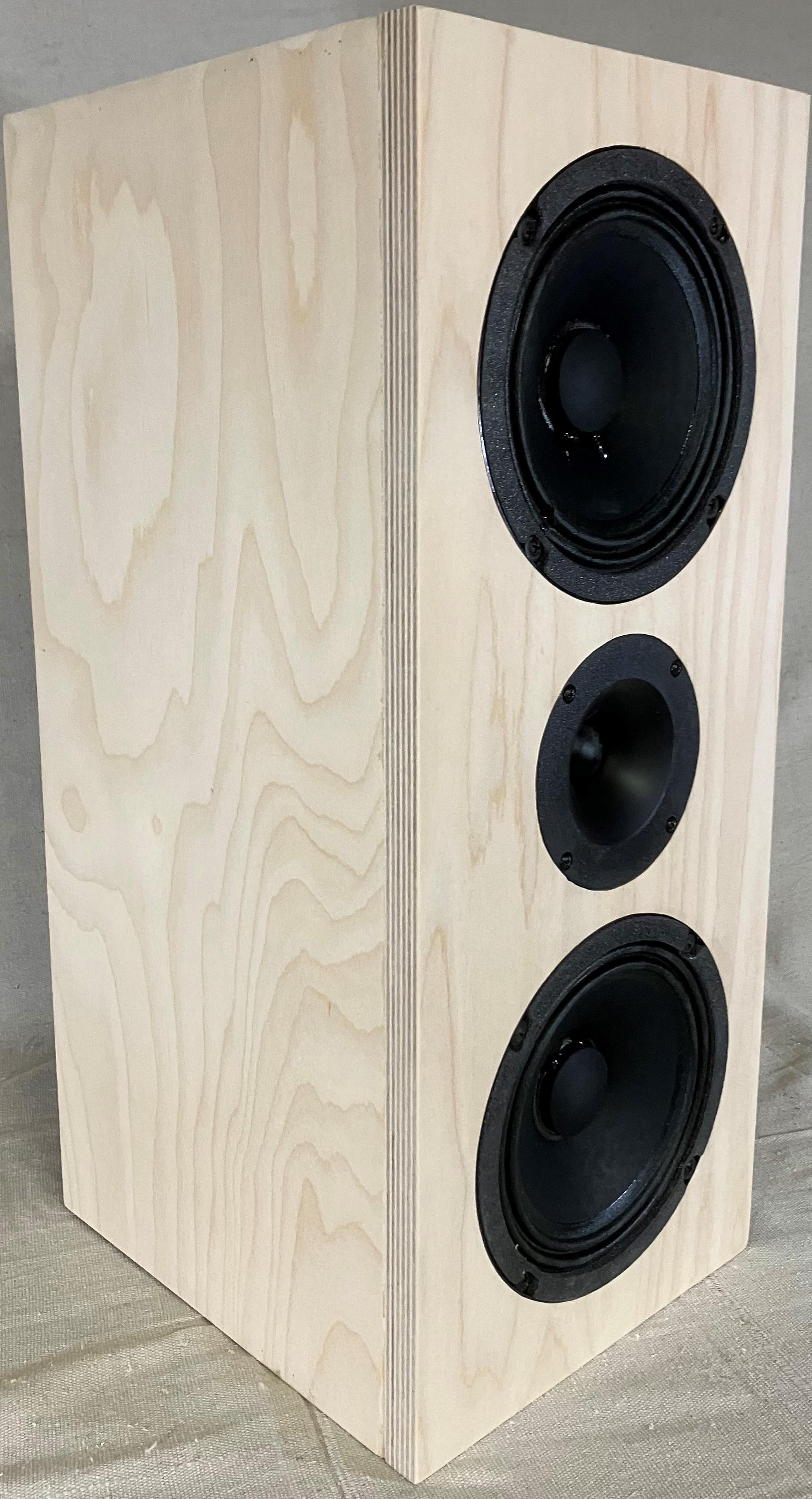

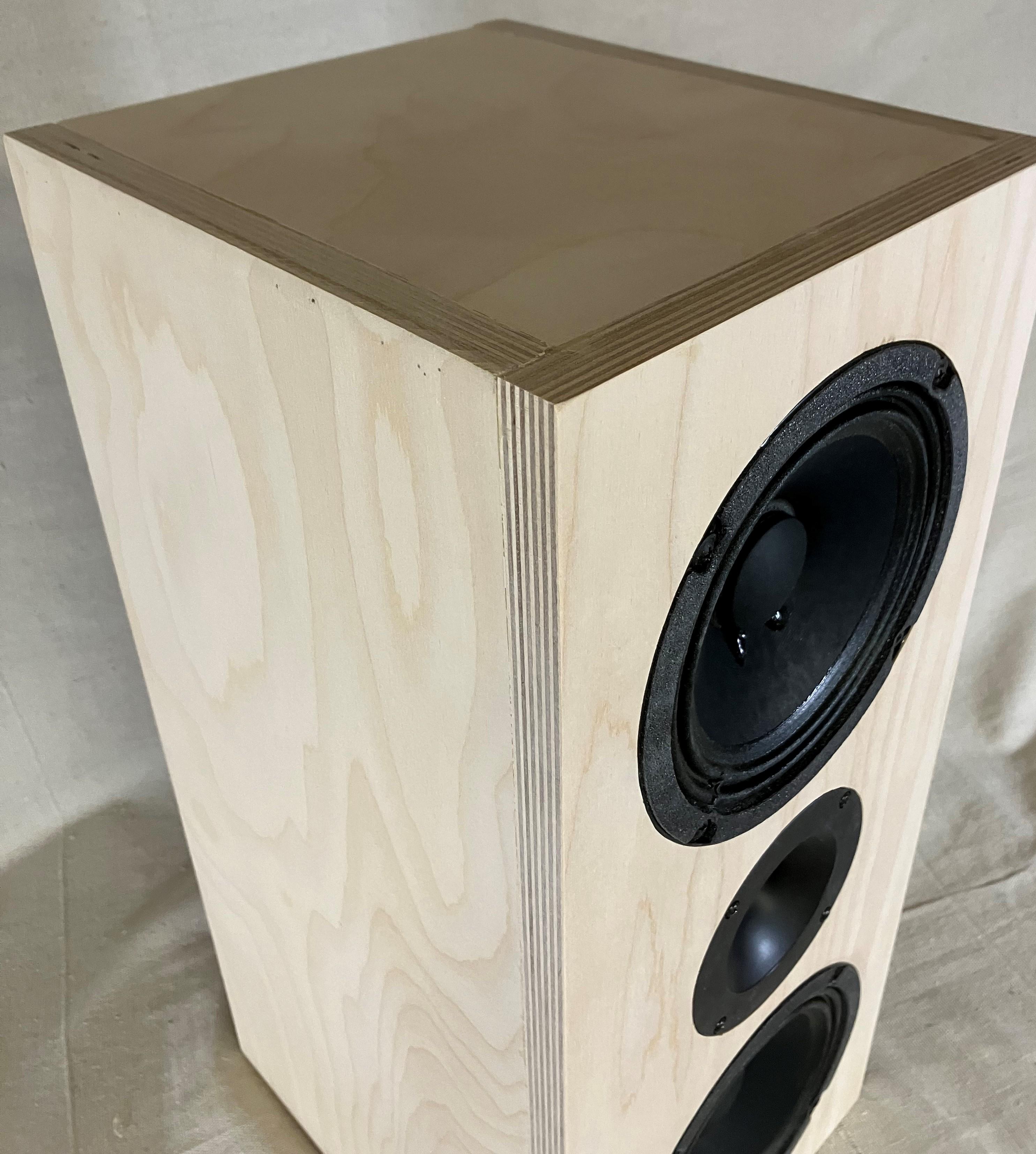

Flat Pack Cabinet Assembled w/ Drivers
95db ~ 8ohm!
Flatpack cabinets are available directly through Speaker Hardware.
The Alpha 95 utilizes two Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass Drivers paired with a Scan-Speak Discovery H2606/9200 Horn Loaded 1" Textile Dome Tweeter in an easy to build, cost effective, & high efficiency speaker kit.
Consider these for stereo listening or high impact home theater. They can be driven with the lowest powered amps offering warmth and immediacy, while also having the power handling and output to blow you out of the room with higher powered amps. Easy to blend with a subwoofer - cross over well under 100Hz. While not weatherproof, they also have the capabilities for outdoor/open-air/large room applications.
We made a special surplus purchase of the Eminence drivers, so are able to offer them at a significant discount. The Scan-Speak H2606/9200 tweeters are also being offered at a promotional price, making this design one of the best DIY speaker deals going! Singles can be purchased for 1/2 the pair price.
Each Alpha 95 Kit Includes:
- (2) Scan-Speak Discovery H2606/9200 Horn Loaded 1" Textile Dome Tweeter
- (4) Eminence AlphaLite-6B 16 ohm 6.5" Pro Midbass Drivers
- (2) Madisound Professionally Assembled Crossovers (see pictures and details below)
Specifications:
- Nominal impedance: 8ohm
- Sensitivity: 95db 1W/1M
- Frequency response: (-3db) 95Hz to 20kHz
- Power handling: 150W
- Output @ 100W: 117db
- Crossover point: 2.7kHz acoustic, 2.5kHz electric
- Crossover slope: 18db/oct tweeter, 12db/oct woofers

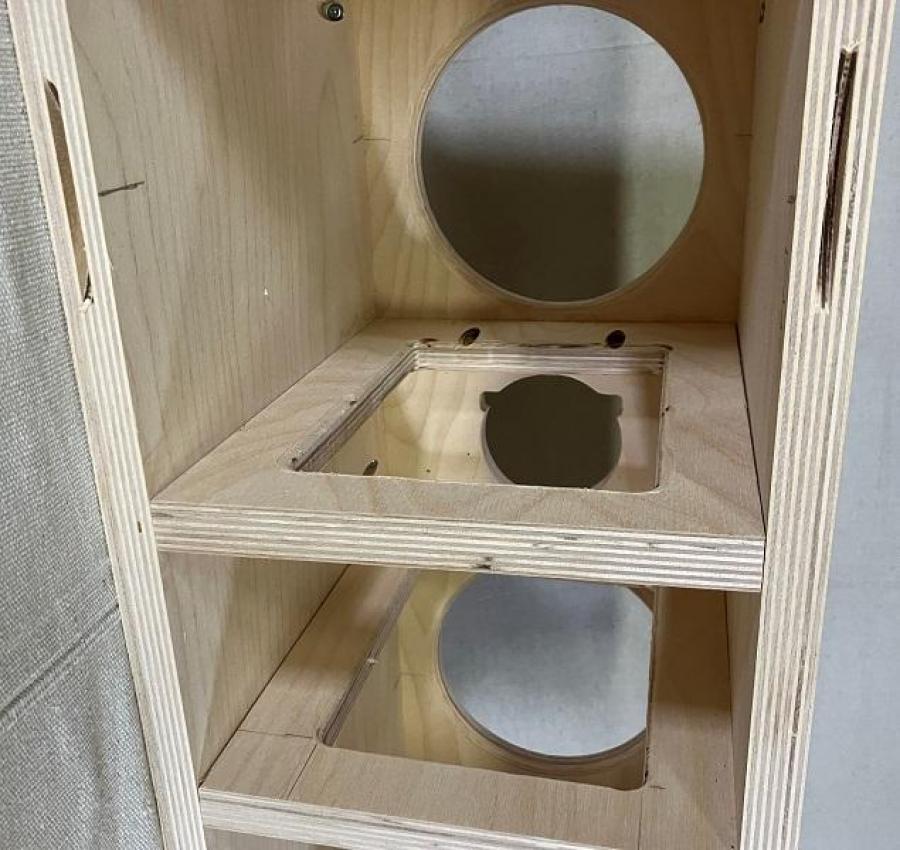

Cabinet Info:
- Build to 9" wide x 21" tall x 11" deep (external dimensions using 3/4" material)
- Woofers have 144.5mm (5.69”) cutout & 167.5mm (6.59”) recess
- Tweeters have 72mm (2.83") cutout & 104mm (4.09") recess
- Space drivers < 0.75" apart, ok to (mirror) offset tweeters for closer overall driver spacing
- Cut a 4.25" port hole for optimal tuning (center behind tweeter, no port tube required)
- Use 3/4" material (mdf, birch ply, etc.) - keep baffle width at 9" & adjust height &/or depth if using thicker wood
- Flatpacks available by seperate purchase
- Wool Felt - 1 yard, line interior walls of cabinet
- Supra Classic 1.6 - 12ft, internal hookup wire
- Quick Connects - 4pcs QC110 for tweeters, 24pcs QC205 for woofers & x-overs
- Foam Tape - 10ft, create airtight seal of drivers to baffle
- #8 Socket Head Wood Screws - 24pcs, mount drivers to baffle
- Binding Posts - 4pcs, 2 red and 2 black
