Neotera Audio 10" Ultra Flat Subwoofer- 4 ohm
Price:
$990.00
The selected item is out of stock, please select a different item or combination
Overview
Neotera Audio 10" Ultra Flat Subwoofer- 4 ohm
UF-CBS-295
Available for immediate drop-ship
Neotera Audio UF-CBS-295 10" Ultra Flat Aluminum Cone Subwoofer- 4 ohm
Engineered in Sweden
Manufactured in Italy

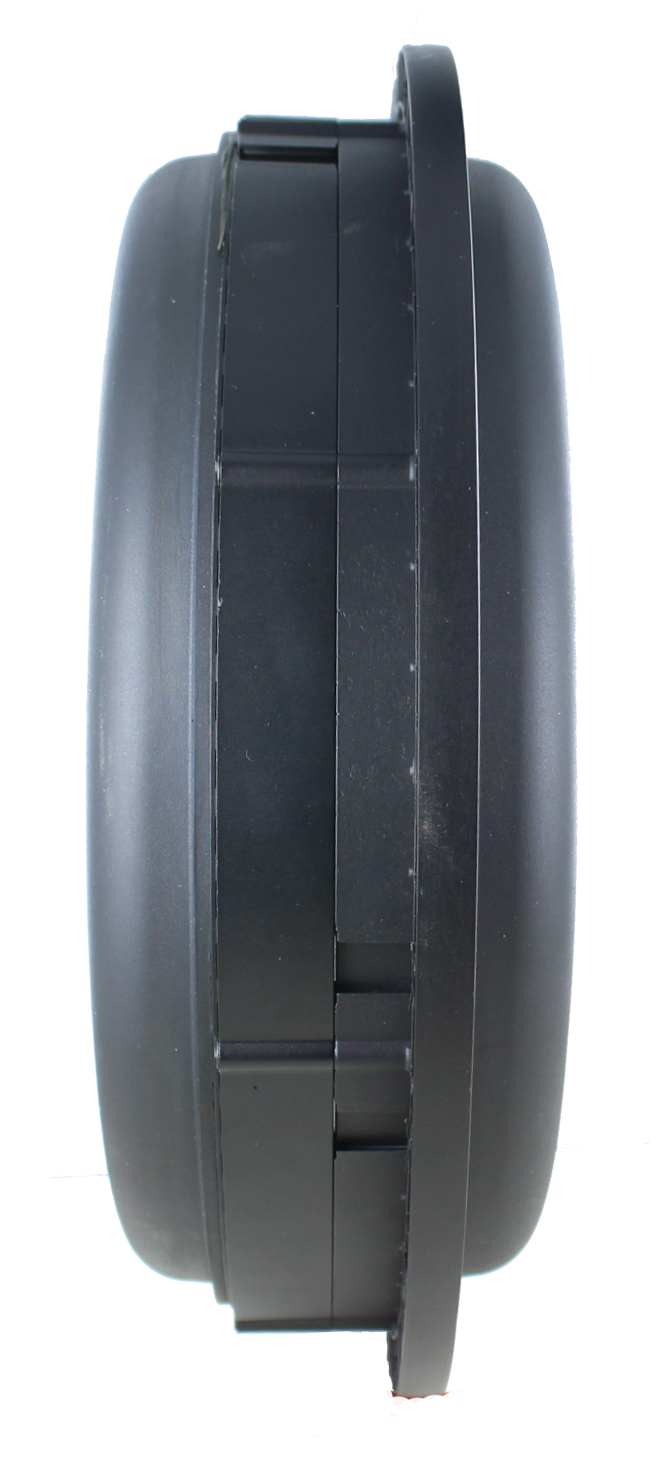

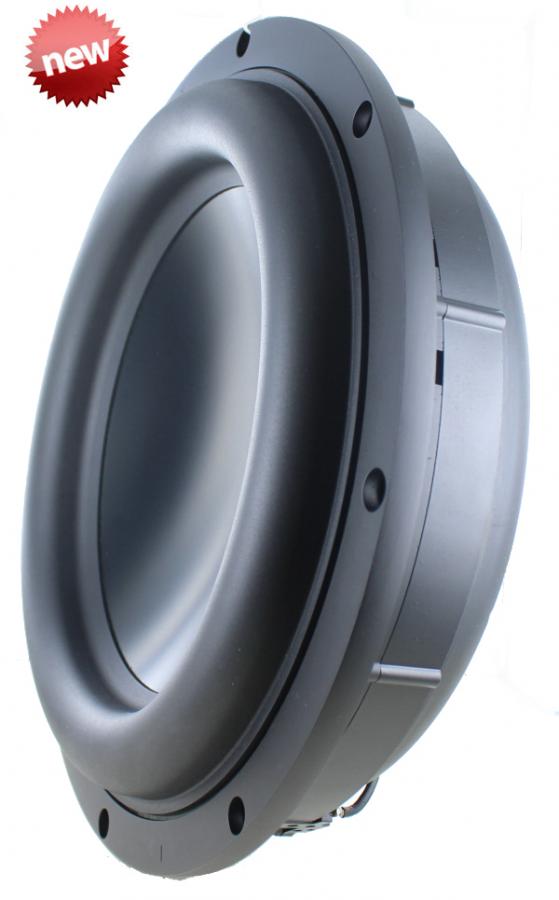

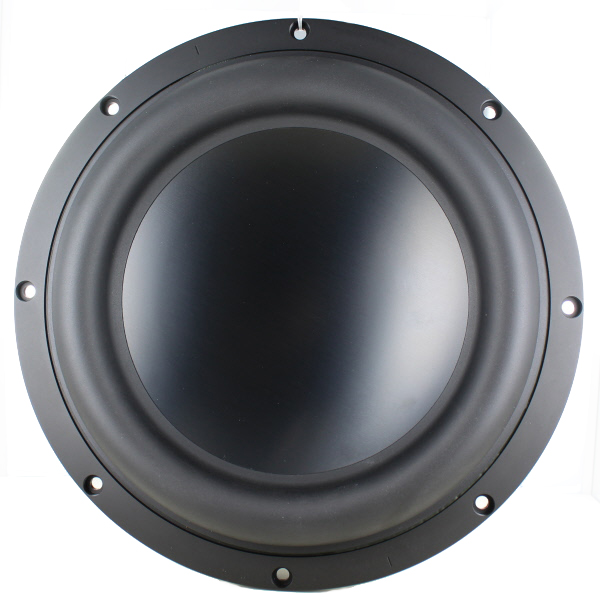

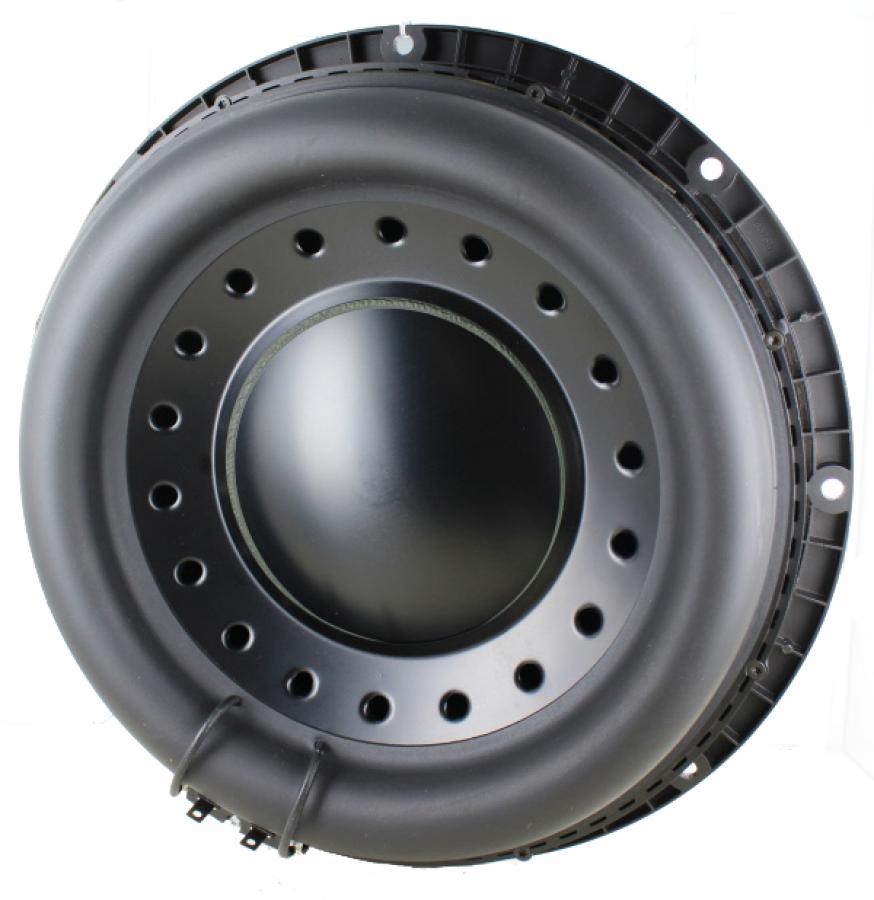

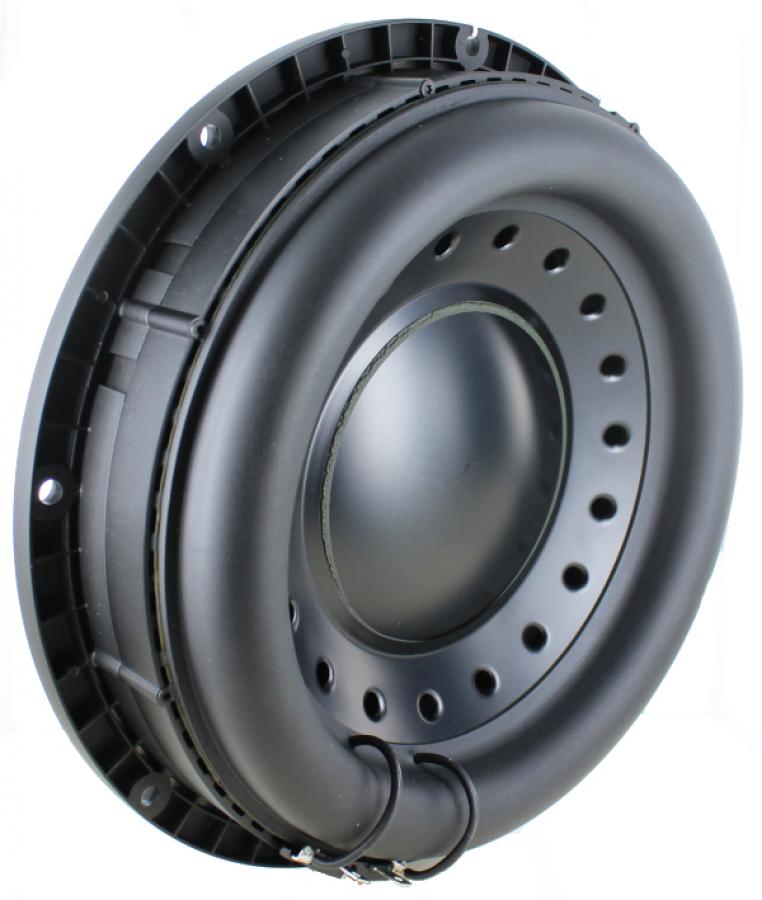

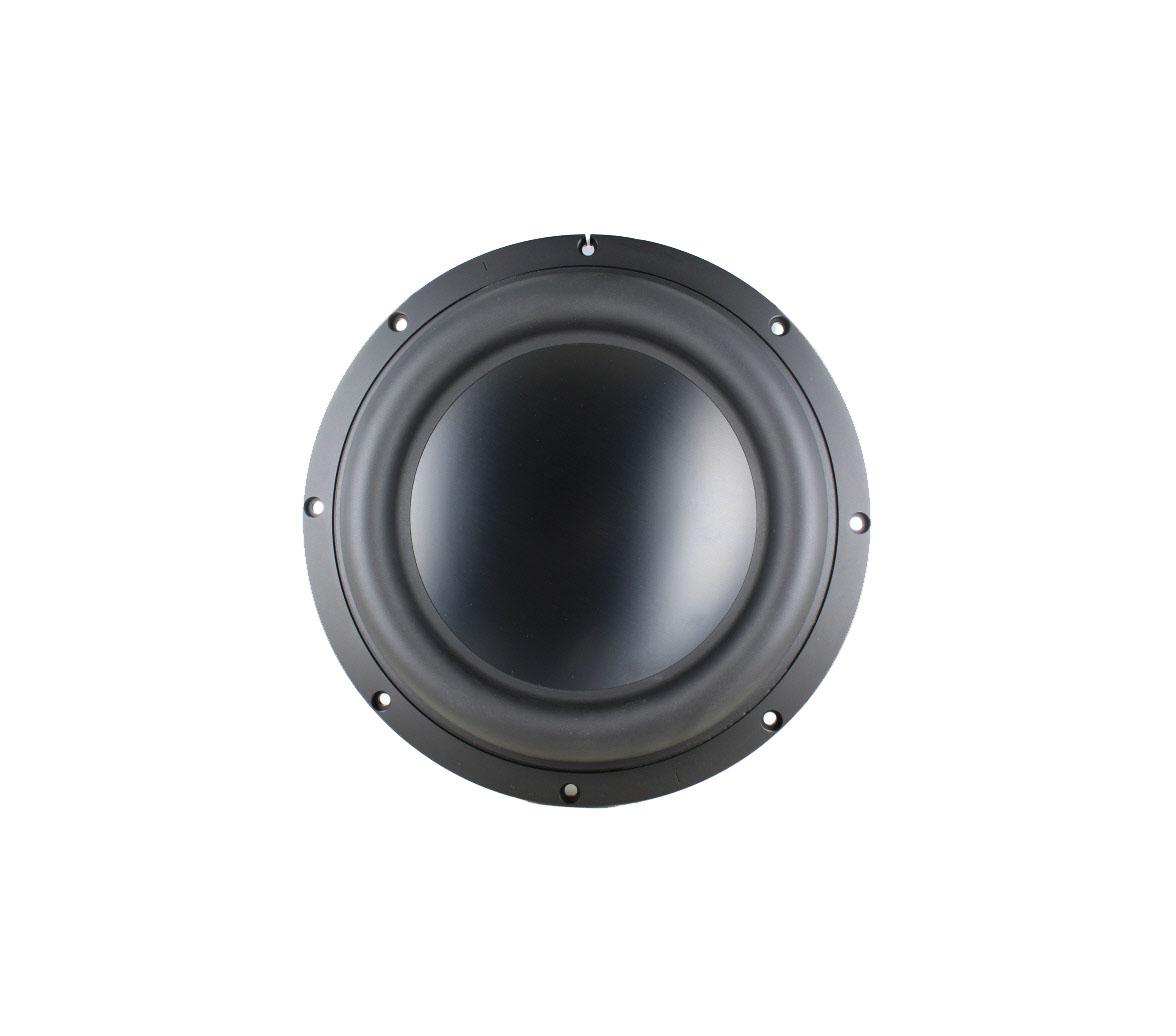

Just 2.6" depth from top of flange to base of rear surround! Brand-new, high-tech aluminum cone Ultra Flat Subwoofer from Neotera! Voice coil and motor structure are located around the rim of the cone assembly. Front and rear facing NBR surrounds are used for compliance. Very high Qts, recommended for small sealed enclosures. Try in 1.5 to 2.0 cubic feet sealed for F3 of 18Hz.
- Datasheet PDF
- Mechanical Drawing PDF
- Distortion reviews on the Facebook DIY Loudspeaker Project Pad
- Distortion reviews on diyAudio




.jpg)




A true subwoofer
Reviewed by shrub0 on 12/01/2023
Don't let the unique t/s parameters fool you. This driver belts out clean deep bass. The giant voice coil diameter reduces power compression, which is especially important in the deep bass where all drivers are inefficient. With room gain you will most likely have to reduce the deep bass with EQ instead of other subs than need boost. This results in more amplifier headroom in deep bass with the Neotera.
I have compared it to other drivers here on the Facebook DIY Loudspeaker Project Pad https://www.facebook.com/groups/DIYLoudspeakerProjecPad/permalink/2196274674061691/
and diyAudio
https://www.diyaudio.com/community/threads/10-woofer-subwoofer-imd-comparison.391184/post-7519345
I have compared it to other drivers here on the Facebook DIY Loudspeaker Project Pad https://www.facebook.com/groups/DIYLoudspeakerProjecPad/permalink/2196274674061691/
and diyAudio
https://www.diyaudio.com/community/threads/10-woofer-subwoofer-imd-comparison.391184/post-7519345
