LCY-100K-MK2 Top Mount Supertweeter

No longer carrying this tweeter.

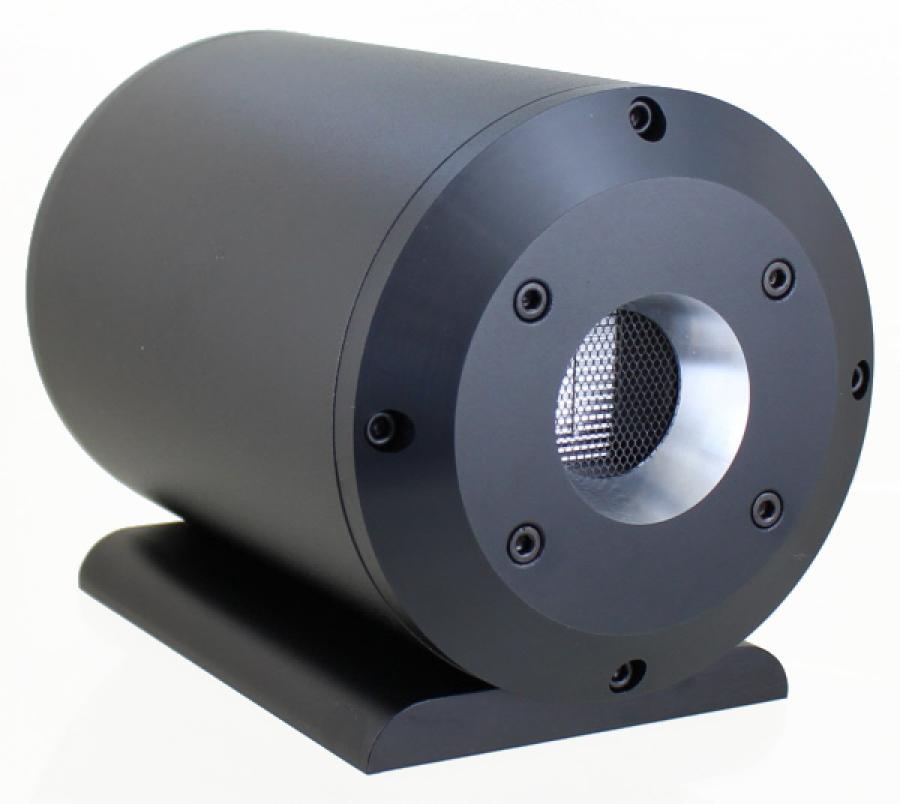

LCY-100K-MK2 Top Mount Supertweeter with Stand and built in High-pass- Each

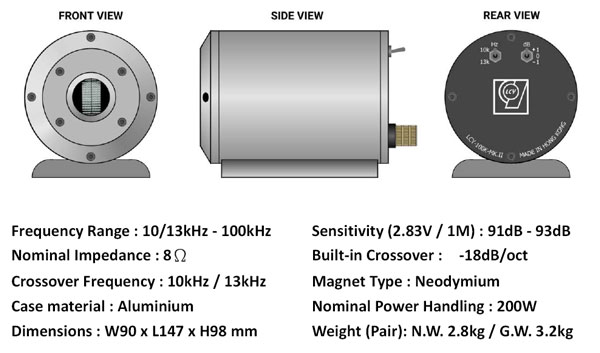

Top mount ribbon tweeter, 91-93dB/2.83V/1m, 8 Ohm

- Frequency Range: 10KHz ~ 100KHz

- Sensitivity: 91dB ~ 93dB (2.83V / 1M)

- Impedance : 8 ohm

- Built-in crossover : -18dB/oct

- Crossover frequency: 10KHz / 13kHz

- Magnet type: Neodymium

- Case material : Aluminium

- Nominal power handling: 200W

- Weight : 1.46Kg /pc

Dimensions : 90mm wide x 147mm length x 98mm height

• Twin-Ribbon tweeter technology
• Extra high frequency response
• Excellent vertical and horizontal pointing characteristics
• Parallel multi-wiring OFC transformer
• Aluminum shell case
• Precision design crossover built-in
• Simply plug and play

The LCY Ribbon tweeter is based on technology well proven by audio pioneers for over half a century but is innovatively designed to satisfy the sophisticated demands of the digital era. The LCY tweeter has a unique design employing twin ribbons of half the length of conventional ribbons in order to control vertical plane dispersion. Thus it reproduces both vertically and horizontally as effectively as voice-coil operated dome tweeters but with the accuracy, elegance and refined timbres of ribbon-tweeter technology. Magnetic flux density is enhanced by the use of our own neodymium magnet system and a sophisticated transformer with parallel multi-wiring OFC has been adopted for superior frequency and power handling and optimal size.

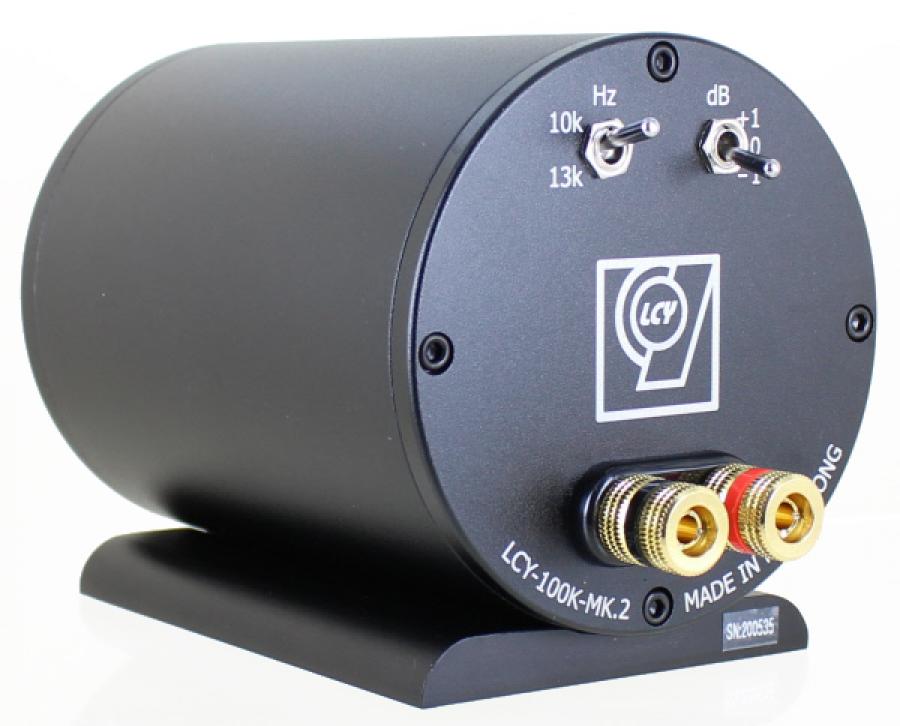

Model LCY-100K-MK2 has been designed specifically bearing in mind the audiophile who already owns a good speaker system and simple to operate and use. Simple put it on the top of the matched speaker, connect the high quality cable in parallel with the terminals of the speaker, and then adjusting the two switches on the rear panel, confirm the best crossover point and output to getting the great matching with its main speaker.
