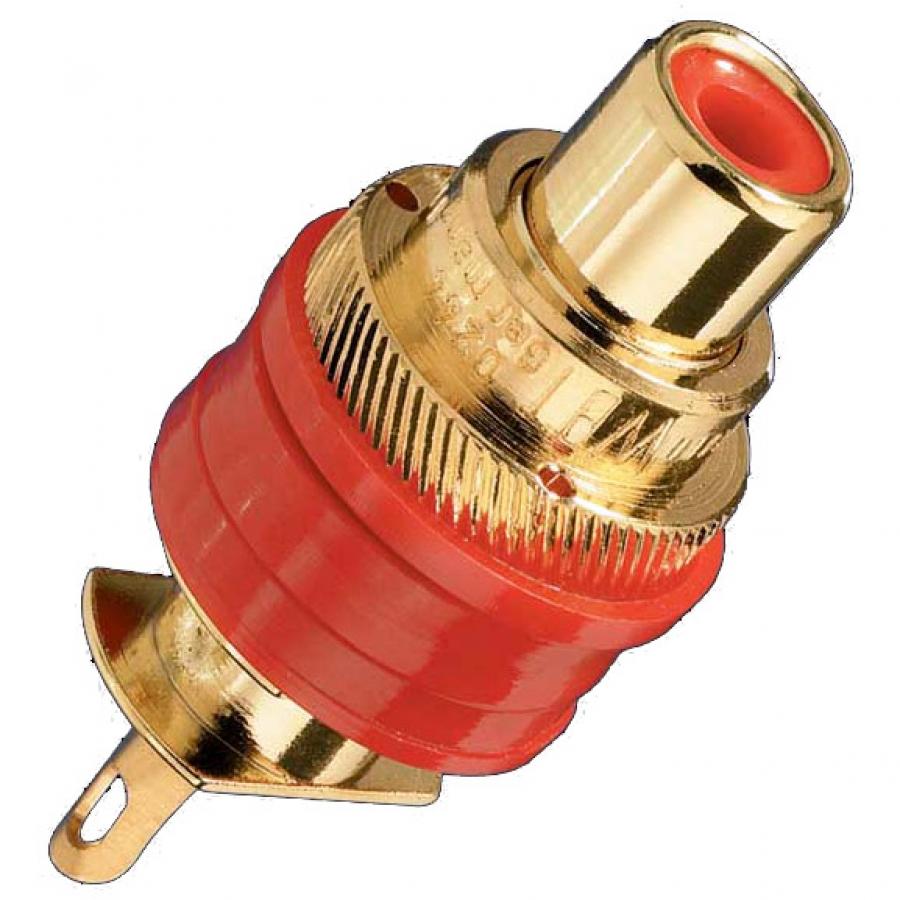

WBT-0244 Midline RCA Socket

WBT-0244 Midline RCA Socket
Click to enlarge
Price: $61.00

Purchase

Manufacturer: WBT
Product ID : WBT-0244
Weight: 0.50 lbs
Manufacturer: WBT
E-mail to a friend

Description

*This item will drop-ship directly from WBT for domestic orders*

WBT-0244 RCA Socket
for chassis mounting

Spec Sheet

The outer contact is made of a special copper alloy and is 24 carat gold-plated, not only ensuring excellent conductivity but also preventing oxidation, which could impair the contact quality.

The inner contact is made of pure, highly conductive electrolyte copper and also gold-plated. This contact is designed in the form of an active spring contact so that the double prism contact surfaces are pressed onto the central pin of the RCA plug by a surrounding bronze spring ring. Not only does this ensure reliable contact with non-standardised RCA plugs but contact also remains reliable even after the plug has been connected and disconnected many times over.

If WBT RCA plugs are used, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

The insulation inside the socket is made of heat-resistant Teflon* – an advantage when the connecting cables are soldered, even with the higher soldering temperature of lead-free solder (see also solder connection).
Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts and double step washers with lug are also supplied.

Select color Red, White, or Yellow from pulldown menu.

Connection technology (inside): soldering (see WBT silver solder)
Borehole: 12 mm dia. (also see data sheet)
Identification: red, white or yellow
