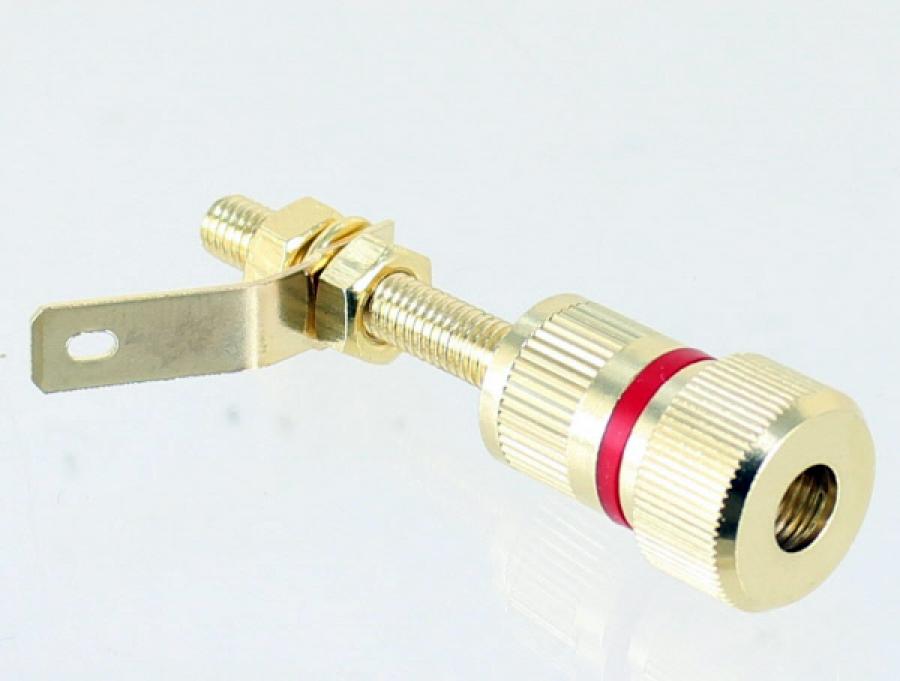

Posts: BG-POSTR Binding Post Red

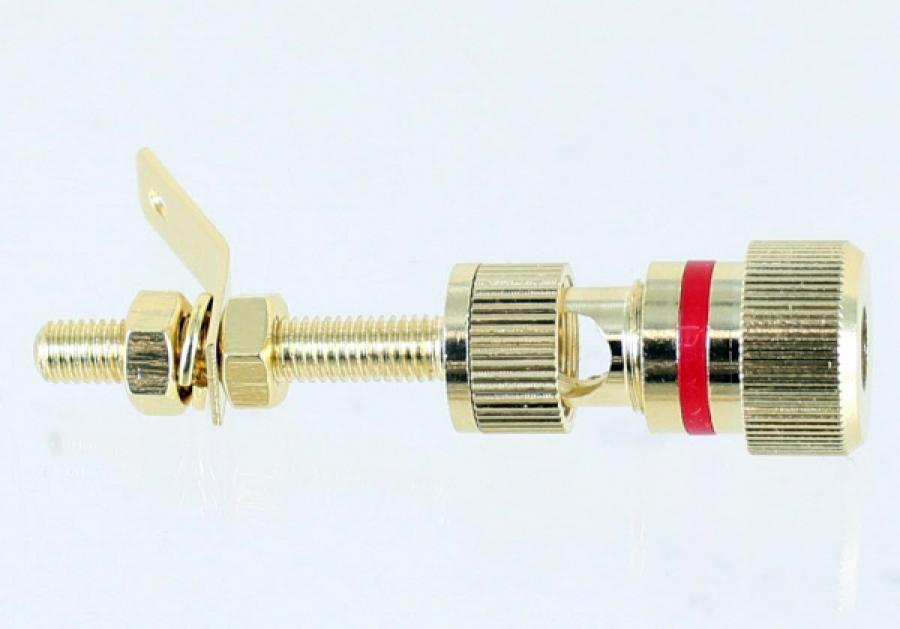

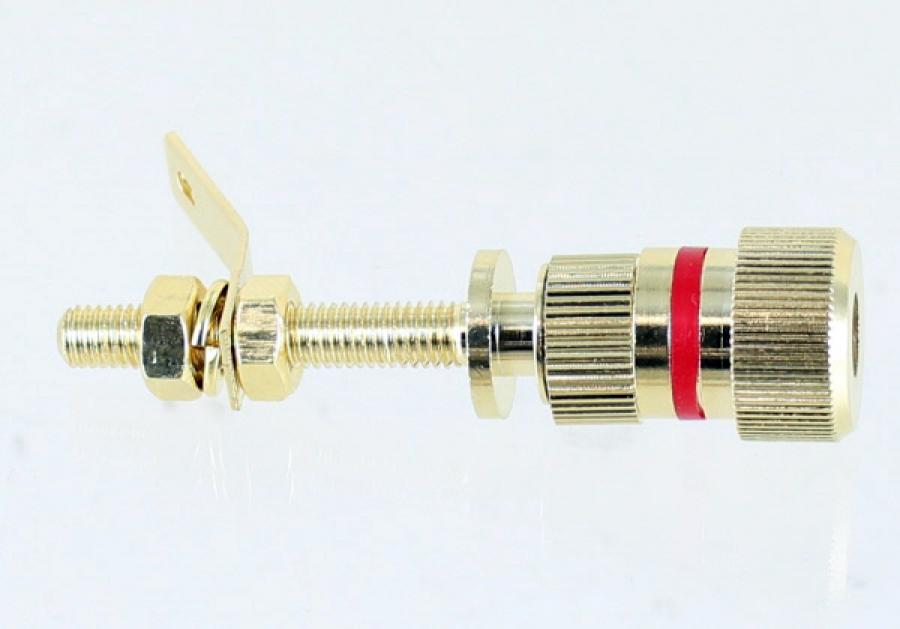

Big Gold 3-way binding post RED - Each

• Total length including the head is 50.5mm (1.98")
• Diameter of the shaft is about 5mm (.2")
• Shaft length is 30mm (1.18")
• Knurled head diameter is 15mm (.59")
• Accepts banana plugs
• Accepts 6mm (0.25") spade terminals
• Accepts raw wire up to 4awg (6mm)
• Use QC250R if not soldering to the male speaker wire tab
• Gold plated brass with gold-plated steel hardware. The nuts, washer and solder tab are steel (ferrous/ magnetic).

This drawing is mostly accurate.  We use the M5 threading for the post that is 30mm long.
