Satori AT60NC-4 AMT Tweeter

Satori AT60NC-4 AMT Tweeter- 74mm x 90mm- 4 ohm

Extended High Frequency Response

Spec Sheet PDF

Test Bench Article

Satori is a Buddhist term for enlightenment. The word literally means "understanding". Satori translates as a flash of awareness. Satori drivers are designed for subtlety and realism.

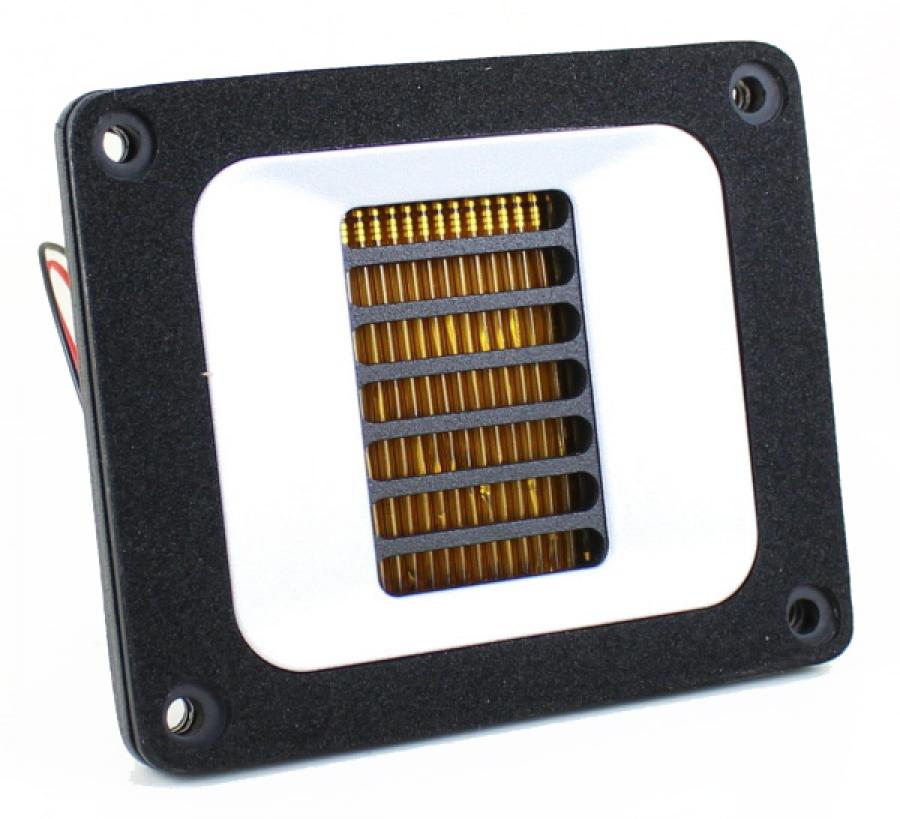

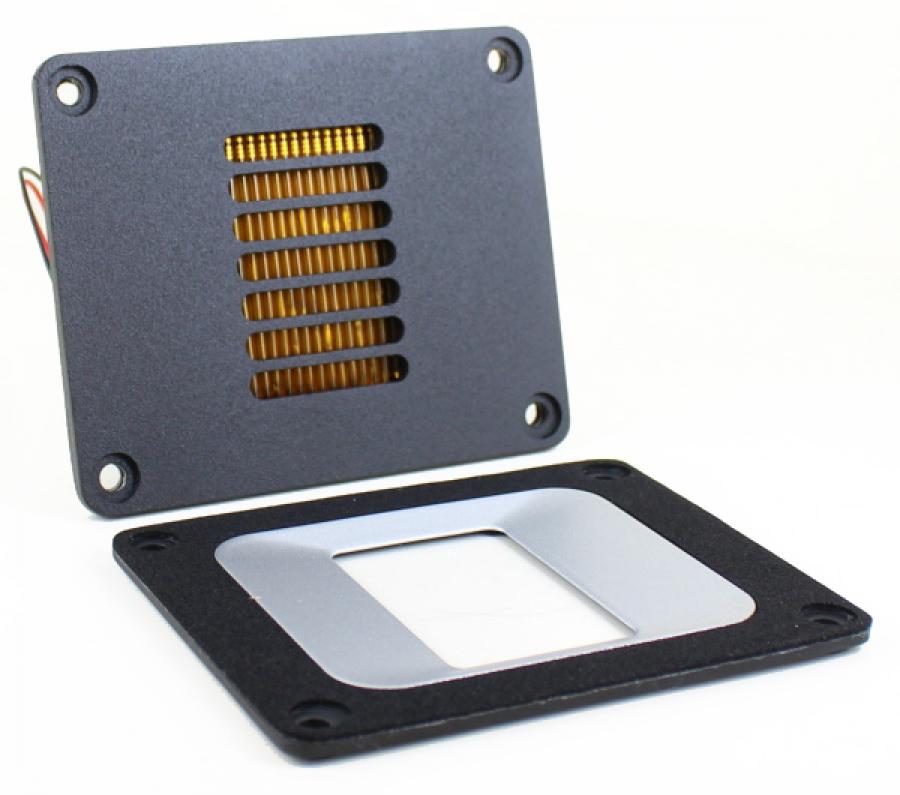

Brand-new AMT tweeter from SB Satori, featuring a precision diaphragm assembly, unique foil damping and an optimized rear chamber. Includes an additional cosmetic faceplate. This tweeter has smooth, controlled dispersion and a very flat impedance curve. Note: Diaphragm is not dented or deformed, it just photographs that way.

• Nominal Impedance, 4 Ω
• DC resistance, Re 3.9 Ω
• Effective piston area, Sd 12.6 cm²
• Free air resonance, Fs 2200 Hz
• Sensitivity (2.83 V / 1 m), 91 dB
• Frequency range, 2200-40000 Hz
• Net weight, 332 g
