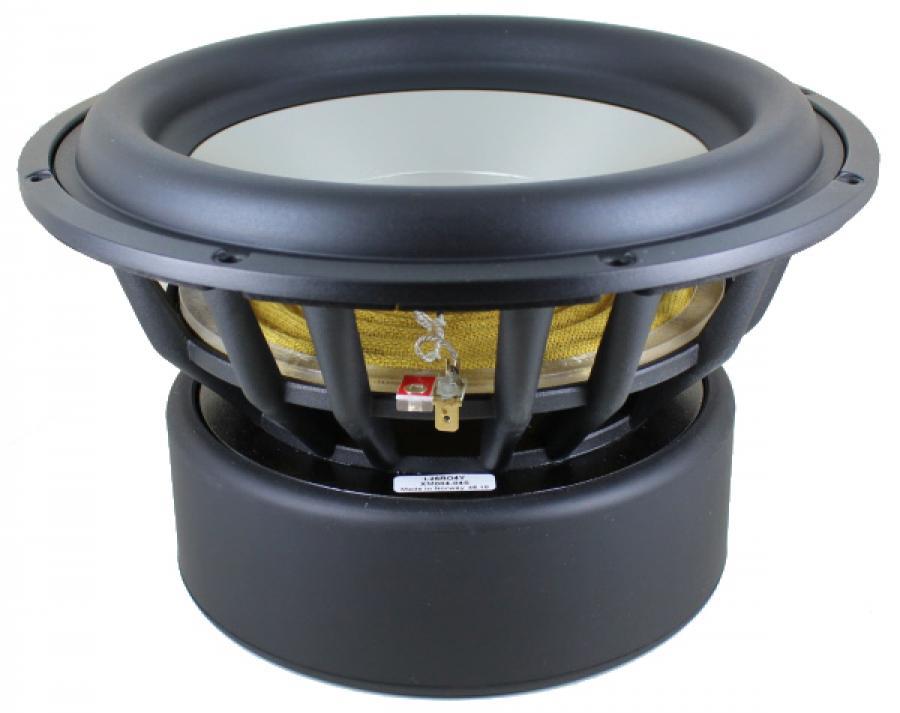

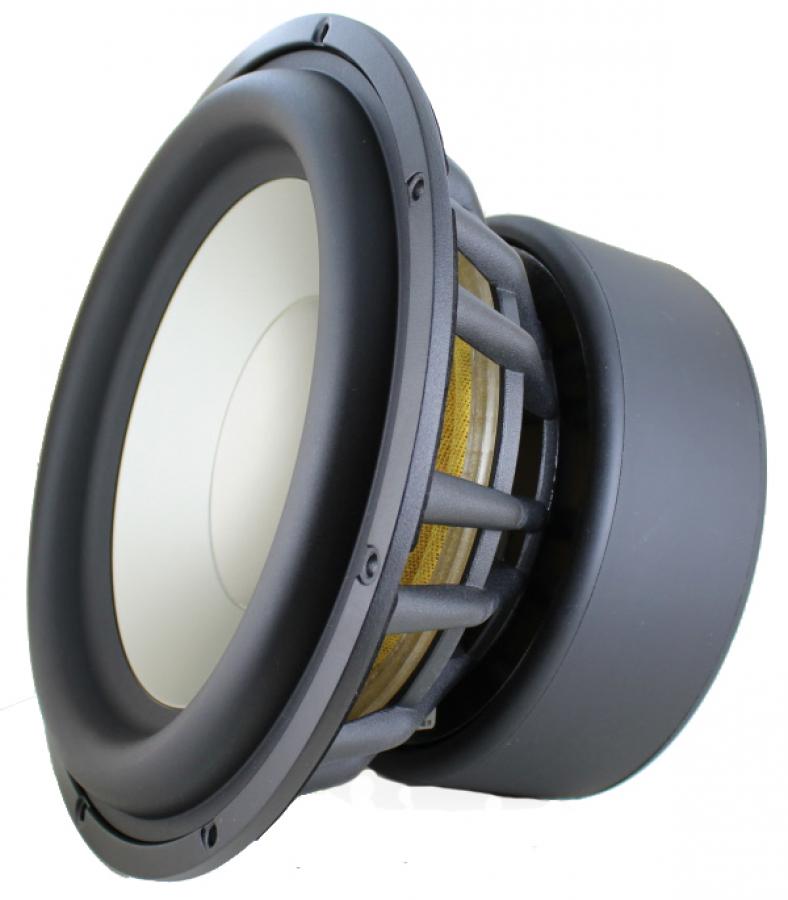

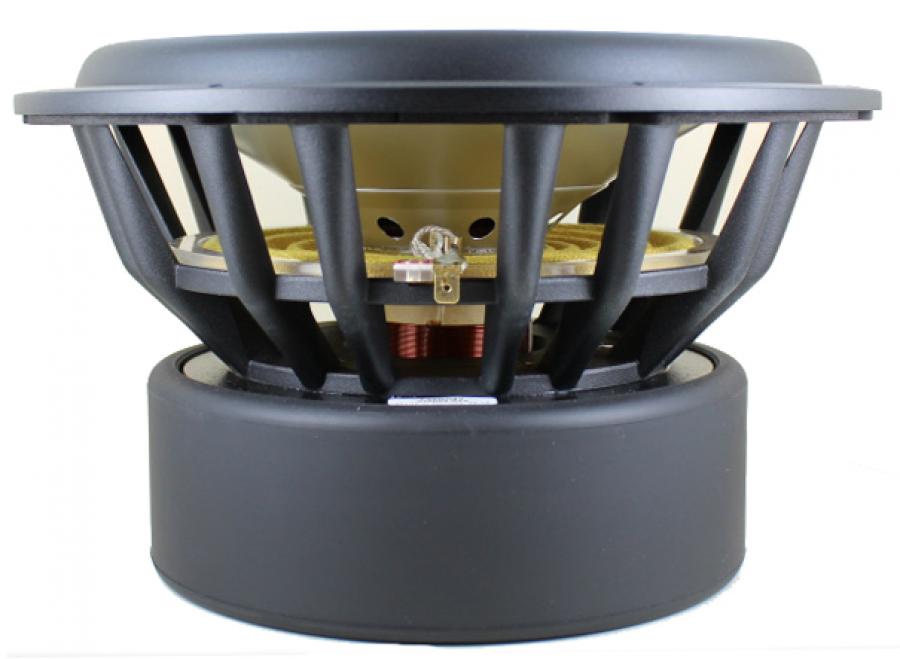

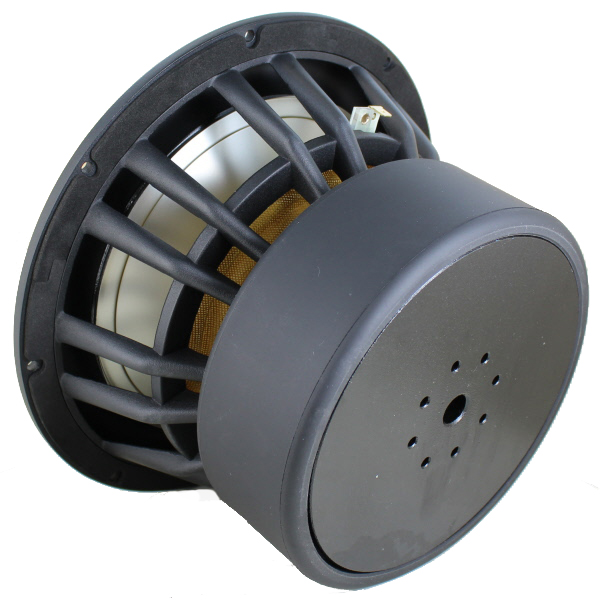

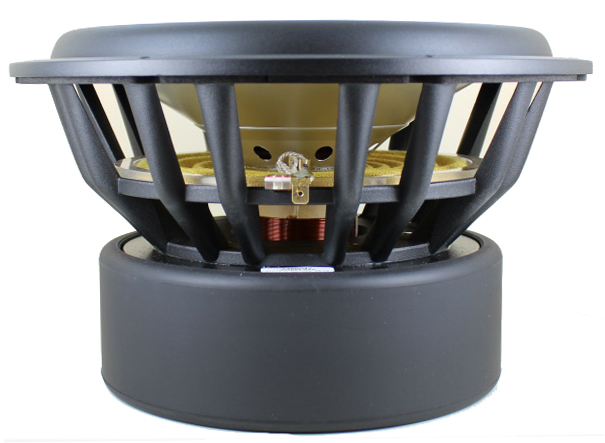

Seas L26ROY 10" Subwoofer - X1001-04 - 4 ohm
Price:
$498.00
The selected item is out of stock, please select a different item or combination
Volume Pricing
10 - 10,000
10% off
10% off
Overview
Seas L26ROY 10" Subwoofer - XM1001-04 - 4 ohms •Extremely stiff and rigid aluminum cone gives tremendous bass precision
Seas L26ROY 10" Subwoofer - X1001-04 - 4 ohm
Now with new basket design!
- Extremely stiff and rigid aluminium cone gives tremendous bass precision
- The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones
- Lead-out wires symetrically stitched to the spider to avoid resonances
- Total suspension designed to assure stability for extreme excursions
- 2-layer, extremely long, high temperature voice coil wound on an glassfiber voice coil former gives a high power handling capacity
- Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin
- Extra large magnet system provides high efficiency and low Q
- Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment
- Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum
Suggested alignments:
For home use:
2.0 cubic feet with 3" diameter vent by 12" long for an F3 of 30Hz
For automotive use:
0.6 cubic foot sealed, F3 in the lower 20's depending on amount of cabin gain
For use with the SL26 passive radiator - follow link.
1.4 cubic foot with passive - 3dB down at 38Hz and actual roll off at 25Hz
Used two for home theater
Reviewed by [email protected] on 11/09/2022
I used them in 2012 both in the sealed boxes, thats how I like home theaters, to use 8" vented and subs in sealed so its not to boomy. They sounded amazing, in very large room and could pump my chest. You can see pics tadasremodeling.com under basements. Highly recommend.
Good subs
Reviewed by [email protected] on 11/01/2022
These subs have a lot of bang for the buck. They are great for music/movies. I built two 52L (net) cabinets. The driver I placed rear firing and the passive radiator I placed down firing. The passive is a 12" scan speak discovery. This combination produces an uncorrected f3 of 17hz. I am using two of these subs driven by an Anthem AVM60/MCA20.
Small dog with a big bark!
Reviewed by shrub0 on 06/14/2022
Don't worry that this only a 10" driver. I conducted a subwoofer shootout of 14 drivers to find the most output while staying under 5% harmonic distortion. This SEAS had the most output at 40 and 50 hz even though the competition was mostly 12" subwoofers.
More info here: https://www.diyaudio.com/community/threads/a-tale-of-12-subwoofers-distortion-and-15-dollars.360855/page-10
More info here: https://www.diyaudio.com/community/threads/a-tale-of-12-subwoofers-distortion-and-15-dollars.360855/page-10
Small dog with big bark!
Reviewed by shrub0 on 03/15/2021
Don't worry that this only a 10" driver. I conducted a subwoofer shootout of 14 drivers to find the most output while staying under 5% harmonic distortion. This SEAS had the most output at 40 and 50 hz even though the competition was mostly 12" subwoofers.
More info here: https://www.diyaudio.com/forums/subwoofers/360855-tale-12-subwoofers-distortion-15-dollars-19.html
More info here: https://www.diyaudio.com/forums/subwoofers/360855-tale-12-subwoofers-distortion-15-dollars-19.html
L26ROY
Reviewed by Seren2 on 09/27/2012
'I just moved my setup to a new room and was having difficulty with the bass. My current subwoofer is a Paradigm 2100. I replaced the amp with an O-Audio Digital 300 watt some time ago. This sub has always had a large bump at 30 Hz and in this room had a bass suck out at 45 - 60 Hz so I was pretty unhappy with the sound. I bought this subwoofer speaker to replace the original Paradigm as the box specs were appropriate (1.5 cf with 3" x 12" port). I can't say enough good things about this speaker. I now get a nearly flat frequency response down to 25 kHz (with a few bumps, nothing more than 10 db). I get measurable 20 Hz. The bass is tighter and much more detailed. This has totally changed my experience of this subwoofer and has far exceeded my expectations. I measure with a Radio Shack Db meter and Rives audio CD. (20 Hz - 71 db, 25 Hz - 80, 31 Hz- 82 db, 40 Hz - 85, 50 Hz - 80, 60 Hz - 74, 80 Hz - 84). Not bad for a stock cabinet. Highly recommended!' Review by Drew Hutchinson. Posted by Madisound.
L26ROY
Reviewed by dalbert02 on 08/19/2012
I built a ported box according to the recommendations from SEAS with some minor modifications. For example, they recommend 1" MDF and all I have available near me is 3/4" so that is what I used. I included the optional internal brace and also braced front to back. Additionally, I put 3/4"x3/4" strips in all the corners and also in a + configuration on each internal wall. Surprisingly, I used nearly a full bottle of Titebond glue as I was sure to saturate each joint completely and went back to run a bead in each seam. I used a few 1-1/2" brad nails just to hold the assembly in place while I prepared clamps. These nails were counter sunk and filled with epoxy. Finally, I used Dynamat on all flat internal surfaces, then attached the provided foam. Initially, I used the stuffing as well, but did not prefer it so I took it out leaving only the foam. Two coats of sanding sealer, two coats of primer, two coats of base color and when I was about to put on a clear gloss, my wife says she wants a different color! Women! Still waiting on a final color but right now they are pumpkin orange, which in my opinion looks great with the black and silver front firing driver.
The overall port length was specified as 9.2" but with that length I experienced a lot of port noise in the form of 'chuffing' (but only when playing bass heavy material). I opted to go a little longer at 12" which resulted in less noise and slightly lower notes heard. For most music, this sub is amazing. Kick drums are extremely tight and well controlled. Bass guitar is deep without being boomy. However, on some tracks, I think I could use a bigger driver. On Trey Songs 'Bottoms Up" there is a low frequency passage that some distortion can be heard. Is it the driver or the Keiga amp? I can not tell but this is only at 90 db, c weighted, fast response. "Bass I love you" is another track that can show the drivers shortcomings. As well as Boston Acoustics "woofer cooker". At low volume levels, (less than 90db) it sounds incredible. For example, in "Bass I love you" there is a part where there is a 17Hz note that feels like the air is being vacuumed out of the room, but it does this almost silently. At above 90db, there is noise at that same part of the track but it sounds like chuffing and cone break up, it just isn't the same as at lower volume levels.
BUT, I usually do not listen to that music regularly. I am running single ended 10W 300b tubes on small speakers and just needed a little bottom end and for that they are perfect. I mostly listen to Reggae and chill music like Morcheeba and Thievery Corporation. I think I may build some 3 ways and use this as the woofer in a sealed enclosure along with Seas excel for the mids and highs. Of course that will need solid state power and I am not sure I want to give up my 300b tubes just yet.
In summary, if you are looking for a musical driver that can go high in frequency, this may be your choice. If you are looking for high SPLs and sub 25Hz bass, you need to look else where. I wish SEAS would make a 12" and 15" version of this driver, I would buy it in a hearbeat.
The overall port length was specified as 9.2" but with that length I experienced a lot of port noise in the form of 'chuffing' (but only when playing bass heavy material). I opted to go a little longer at 12" which resulted in less noise and slightly lower notes heard. For most music, this sub is amazing. Kick drums are extremely tight and well controlled. Bass guitar is deep without being boomy. However, on some tracks, I think I could use a bigger driver. On Trey Songs 'Bottoms Up" there is a low frequency passage that some distortion can be heard. Is it the driver or the Keiga amp? I can not tell but this is only at 90 db, c weighted, fast response. "Bass I love you" is another track that can show the drivers shortcomings. As well as Boston Acoustics "woofer cooker". At low volume levels, (less than 90db) it sounds incredible. For example, in "Bass I love you" there is a part where there is a 17Hz note that feels like the air is being vacuumed out of the room, but it does this almost silently. At above 90db, there is noise at that same part of the track but it sounds like chuffing and cone break up, it just isn't the same as at lower volume levels.
BUT, I usually do not listen to that music regularly. I am running single ended 10W 300b tubes on small speakers and just needed a little bottom end and for that they are perfect. I mostly listen to Reggae and chill music like Morcheeba and Thievery Corporation. I think I may build some 3 ways and use this as the woofer in a sealed enclosure along with Seas excel for the mids and highs. Of course that will need solid state power and I am not sure I want to give up my 300b tubes just yet.
In summary, if you are looking for a musical driver that can go high in frequency, this may be your choice. If you are looking for high SPLs and sub 25Hz bass, you need to look else where. I wish SEAS would make a 12" and 15" version of this driver, I would buy it in a hearbeat.
