Scanspeak Discovery 26W/4534G 10" Aluminum Cone Woofer 4 ohm

Manufacturer: ScanSpeak

Be the first to review this product

Product ID: 26w_4534g

$204.80

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

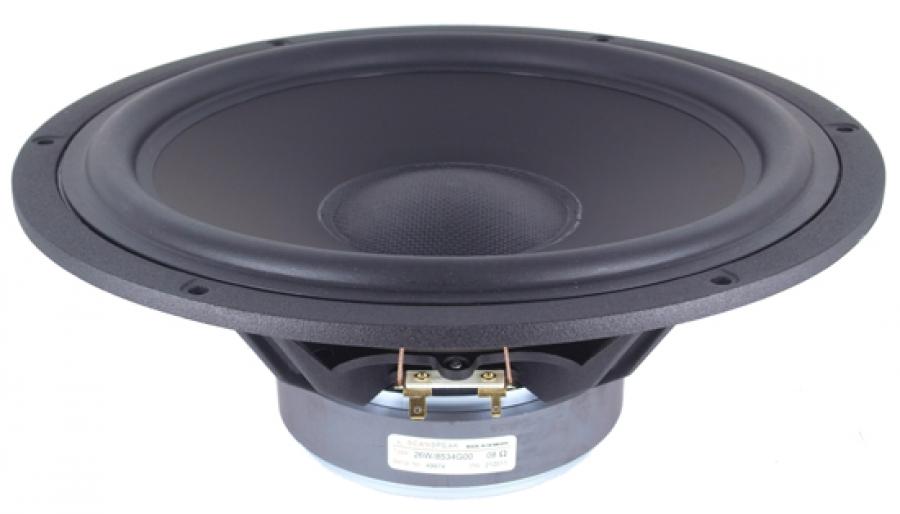

Scan-Speak Discovery 26W/4534G 10" Aluminum Cone Woofer - 272mm- 4 ohm

Scan-Speak Discovery 26W/4534G 10" Aluminum Cone Woofer - 272mm- 4 ohm

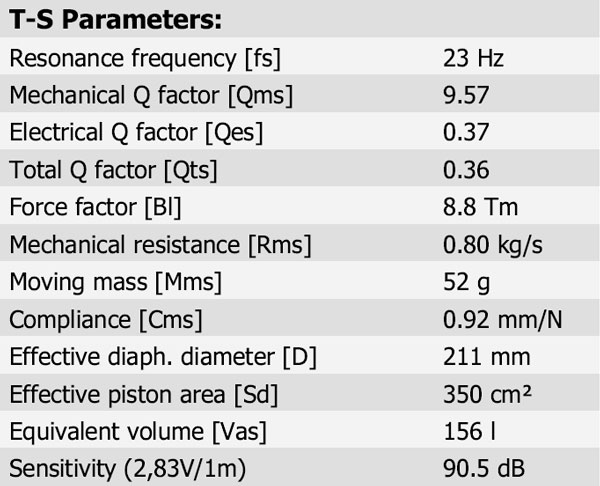

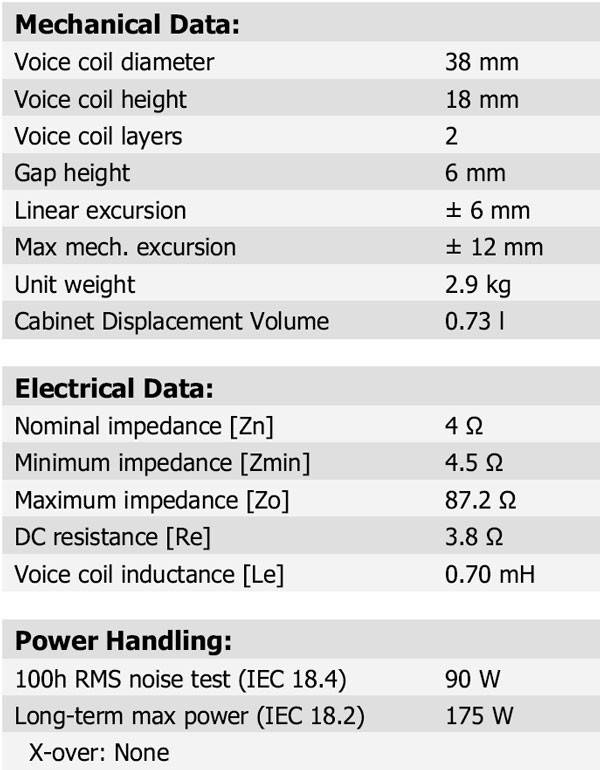

Spec Sheet PDF

Great for Home or Car Audio/ Autosound

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

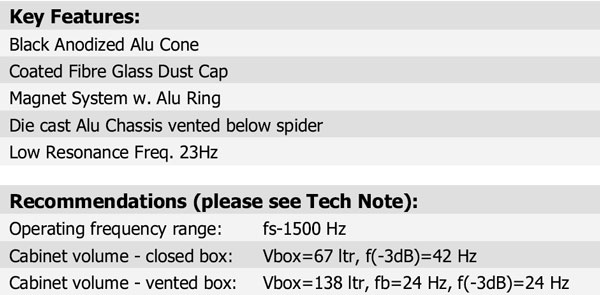

Black anodized aluminum cone
Ferrite magnet with aluminum shorting ring
Low resonance of 23Hz
Coated fiberglass dust cap
Die cast aluminum chassis, vented below spider

Madisound recommends:

1.1 cubic feet sealed for F3 of 50Hz
2.5 to 3.0 cubic feet with 3" diameter vent by 8.5" long for F3 of 32Hz

A customer purchased this as a replacement for his Thiel CS 3.6 speakers. He liked the results and actually prefers it to the original.

Martin Logan recommends this as the replacement woofer for their Ascent and SL3 speakers.

Not rated yet

Verified Purchase

Thiel 3.6 Replacement Woofers

Reviewed by ronskarvan on 11/23/2017

These actually worked very well to replace woofers that had become unglued. I purchased two and they sound very good in the Thiel 3.6 application.

The fit was a little tighter than the original Thiel 10 inch woofers. But, they fit and the screw holes aligned perfectly.

I believe that these woofers are slightly louder and warmer than the Thiel's. The Thiel's had a little more impact. These drivers are absolutely acceptable replacements - even for crtical listening.

Highly recommend!

Low and loud

Reviewed by soundman1402 on 06/04/2014

I used these woofers in a speaker system for a CrossFit gym. It's a 3000 square-foot industrial garage space, and during workouts, loud music is played. The music is played at such a volume as to compete with yells and dropping of barbells. The music is high-energy, frequently with a lot of bass content, and some of it very deep bass. I needed to build a speaker system that could handle loud sound levels and deep bass, and sound good doing it.

A pair of these woofers in a ~2 cubic foot ported box deliver nearly subwoofer-like performance! The bass is loud, low, and clean. I'm going to buy another one of these woofers to use as a subwoofer in a small travel trailer. I'm fully confident that it will fit that application perfectly due to its ability to play cleanly and at very low frequencies. If it can produce grunting lows in a 3000 square foot industrial garage, it should be more than capable of doing so in a much smaller space!

Verified Purchase

Martin Logan Ascent Replacements

Reviewed by Pipesnake on 06/16/2012

I used these to replace a blown woofer in one of my Martin Logan Ascents. These simply drop right in as if they were designed for them. The screw positions and countersinking are perfect. So perfect in fact it makes me wonder if these are the OEM's Martin Logan uses for the Ascent i. No soldering either. They simply plug in. I had both woofers changed in 5 minutes. They sound at least as good as the original Vifa's. In fact better to my ear. Bass seems tighter but just as deep.
