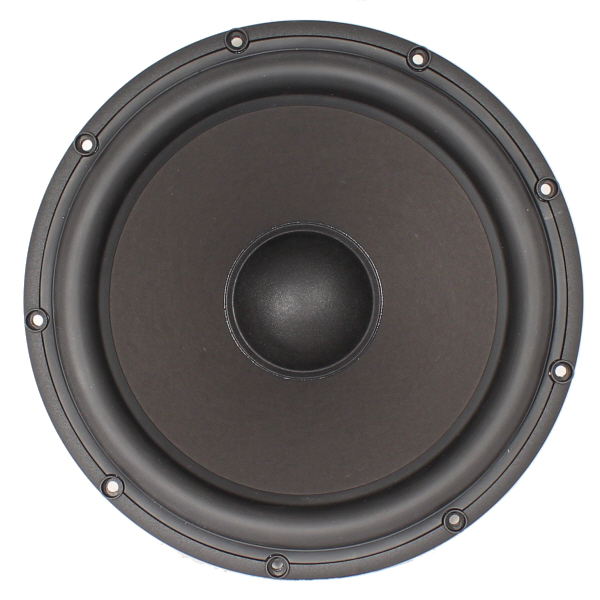

Scan-Speak Revelator 13" Woofer - 32W/8878T-01
The 32W/8878T01 is the most powerful woofer designed by Scan-speak to this date, with its large 3” voice coil, excursion and low resonance frequency, it is perfect to reproduce the deepest frequencies. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction. Consider this exceptional woofer in your next 3-way speaker design.

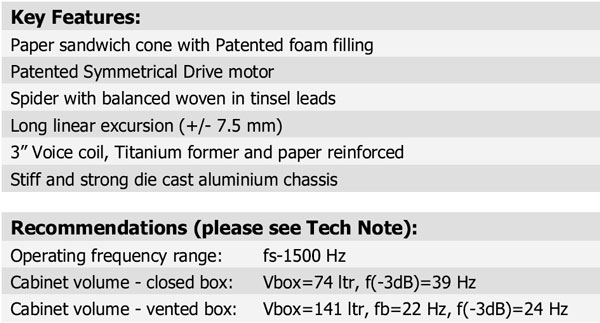

KEY FEATURES:
- Paper sandwich cone with Patented foam filling
- Patented Symmetrical Drive motor
- Spider with balanced woven in tinsel leads
- Linear excursion (+/-7.5 mm)
- 3” Voice coil, Titanium former and paper reinforced
- Stiff and strong die cast aluminium chassis
Follow this link to
download the pdf file specification sheet.
Possible alignments:
3.5 cubic feet with a 3" diameter vent by 9" long for an F3 of 28Hz.
5 cubic feet with 4" diameter vent by 14" long for an F3 of 25Hz.
1.8 cubic foot sealed box has an F3 of 45Hz.
