Fostex FW305 12" Woofer

Manufacturer: Fostex

Be the first to review this product

Product ID: fw305

$433.30

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

Fostex FW305 12" Paper Cone High SPL Woofer 12” wide-band woofer• Hybrid pulp cone• 8 ohm impedance• 95db sensitivity• Frequency response from 25 Hz to 3.5 kHz• Flange 312 mm• Cut-out 278 mm• Depth 105.5 mm

Fostex FW305 12" Paper Cone High SPL Woofer

Spec Sheet PDF

FW305+15M4624G+XT25BG60 3way Crossover Design

Excellent upper midrange for a driver of this size.

300mm (12") paper cone woofer
Cast frame
Foam surround
65mm voice coil diameter (2.5")
8 ohm impedance
fo to 3.5kHz frequency response
95dB sensitivity (1W/1m)
5.0kg Net weight (11 lb)
Impedance 8 ohm
SPL 95dB (1W/1m)
Rated Input 40W
Music Power 125W
Fs 25Hz
Re 6.6 ohm
Qts 0.25
Qms 2.73
Qes 0.28
Vas 254 L
X-max 4.8mm
Equivalent Diaghram Radius: 130mm (5.098 in)

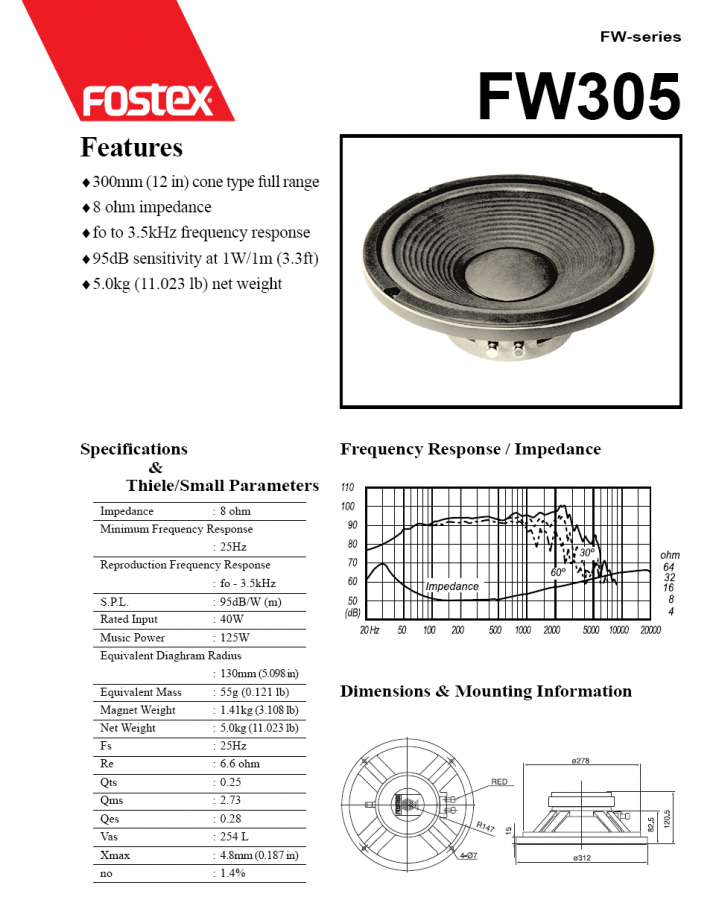

Spec sheet: Fostex FW305 Woofer
