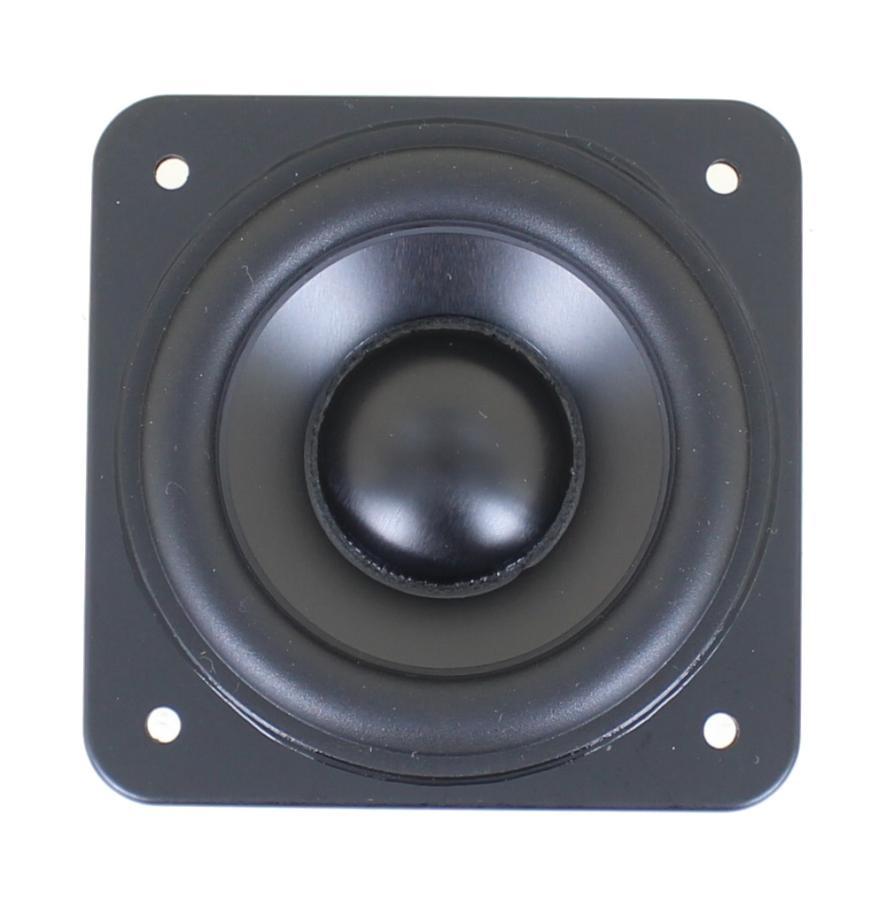

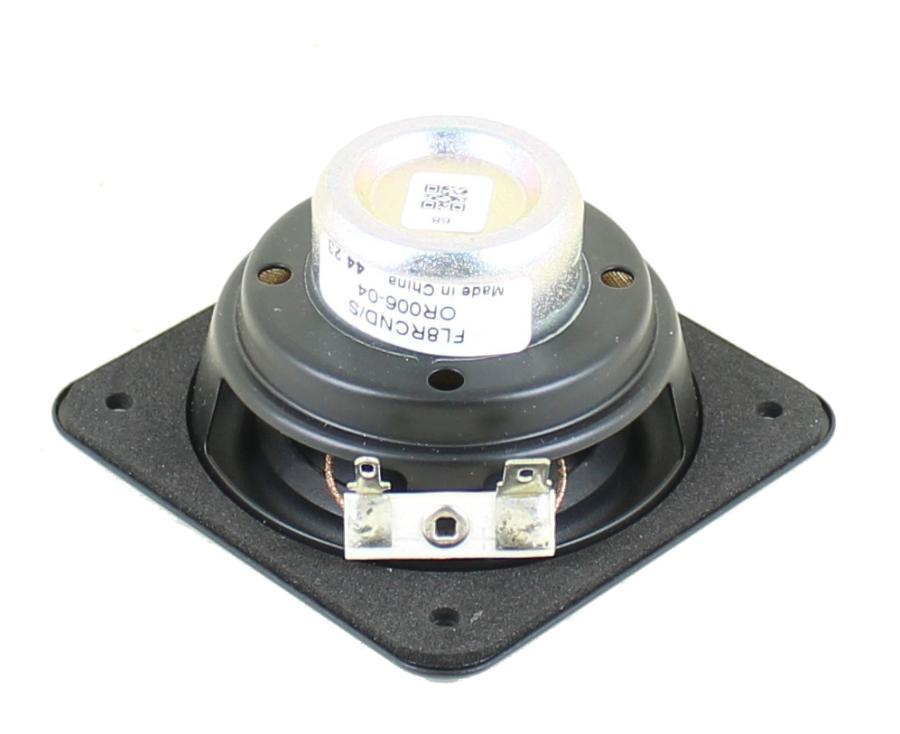

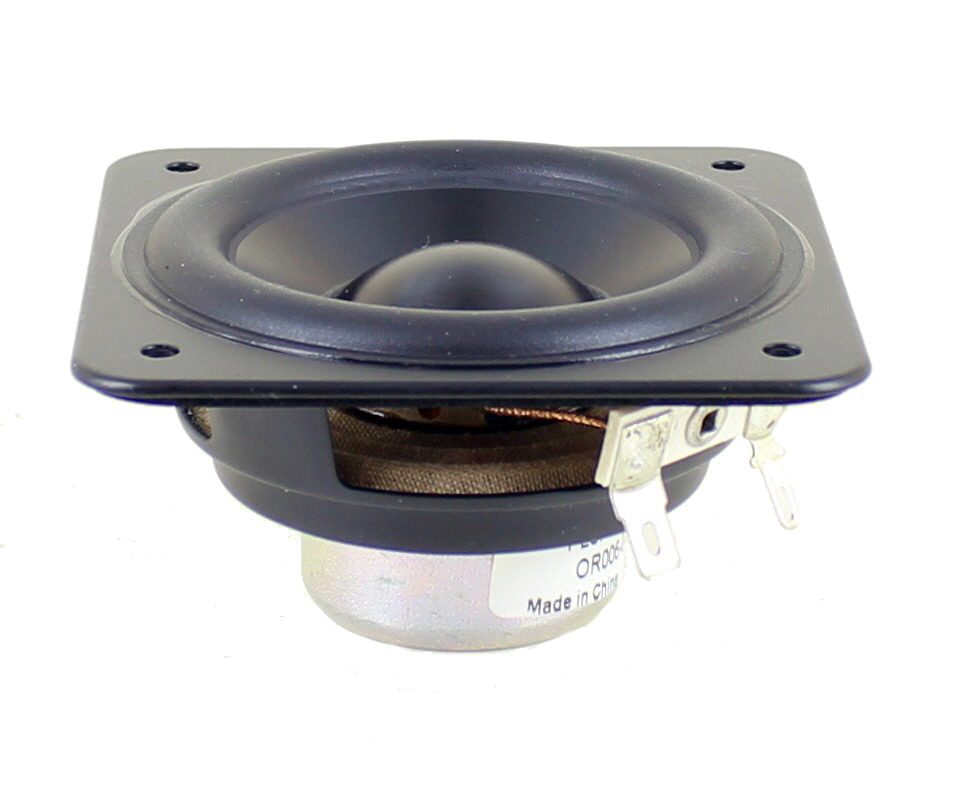

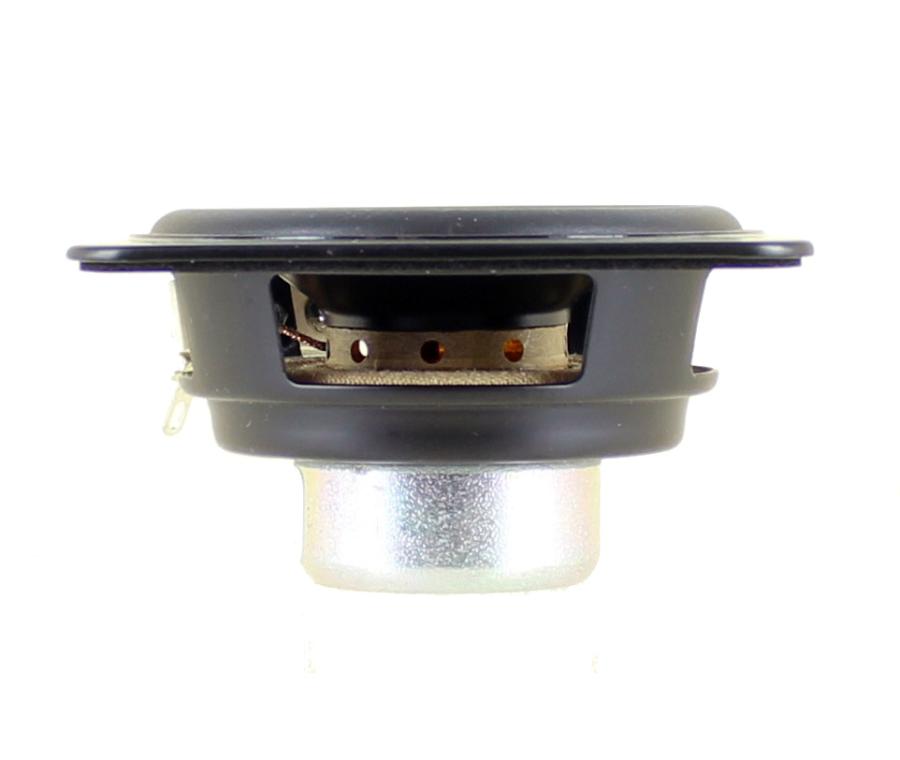

Seas Orbit OR006-04 FL8RCND/S 80mm Aluminum Cone Fullrange

Seas Orbit OR006-04 FL8RCND/S 80mm Aluminum Cone Fullrange - 4 ohm

Spec Sheet PDF

The new SEAS Orbit Series features high quality full-range drivers ideal for smart speakers, soundbars, videoconference systems, etc. Seas Orbit are designed to reduce distortion to a minimum, balancing the bass and treble, resulting in a distinct sound character and timbre. The fabric spider reflects very little acoustic energy to the cone and offers superior stiffness linearity, and a stiff and stable aluminum chassis keeps the critical components in perfect alignment. The pole piece and copper cap ensure exceptional linearity in the force factor and coil inductance. The performance level achievable in this small size makes this driver a perfect choice for any application where limited space is a critical parameter.

• The FL8RCND/S is a fullrange driver offering an extraordinary performance and sound clarity.
• An aluminium cone with excellent internal damping together with perfectly matched surround gives a smooth and extended frequency response.
• The fabric spider reflects very little acoustic energy to the cone and offers outstanding stiffness linearity.
• A stiff and stable SPCC steel chassis keeps the critical components in perfect alignment.
• The pole piece features a copper cap to ensure exceptional linearity in the force factor and coil inductance.
• Small size combined with an excellent performance makes this driver the perfect choice for any application where limited space is a critical parameter.

Suggested Enclosure:

1 liter sealed f3 156Hz, f6 103Hz; or 1 liter ported with 1" vent x 4" long for f3 95Hz

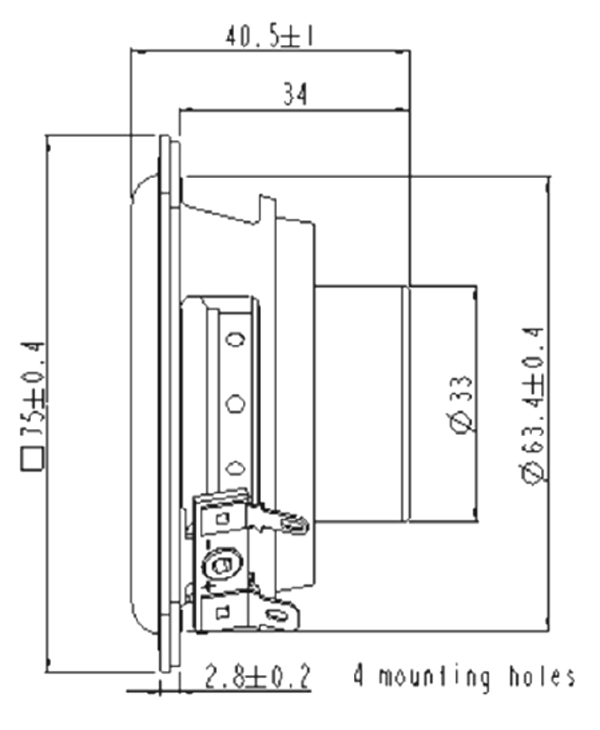

Bolt hole circle diameter 82mm, bolt hole diameter 3.5mm.
