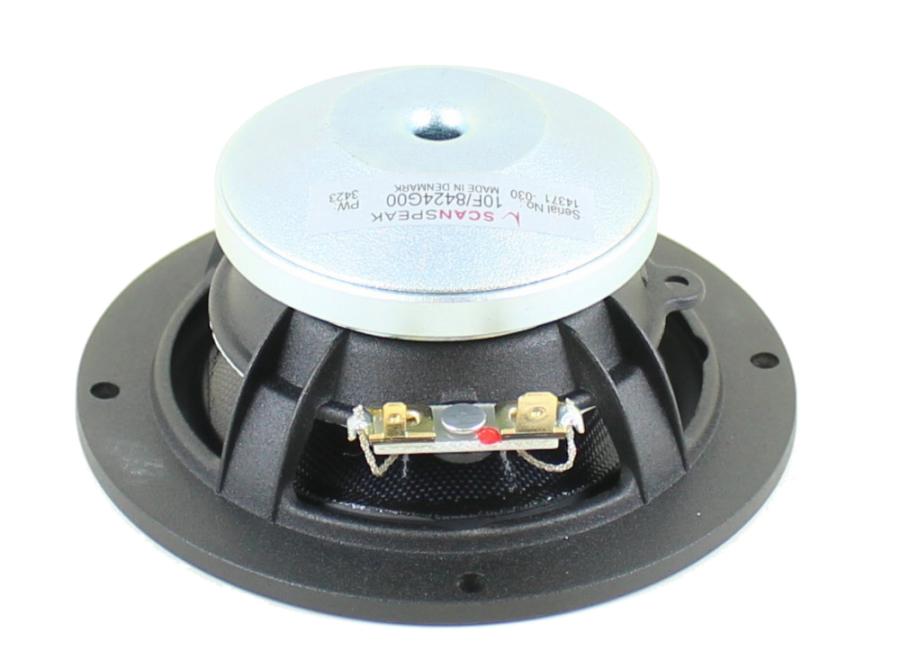

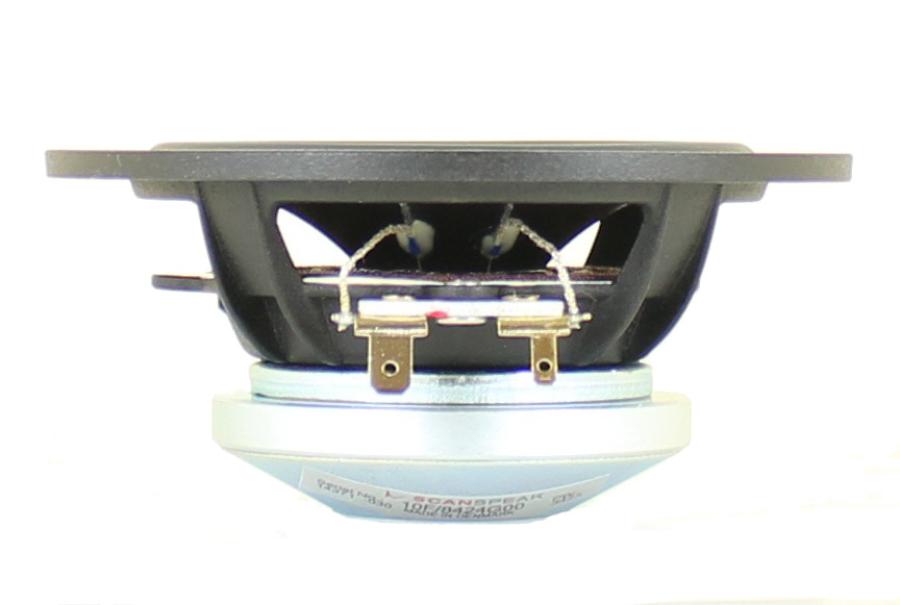

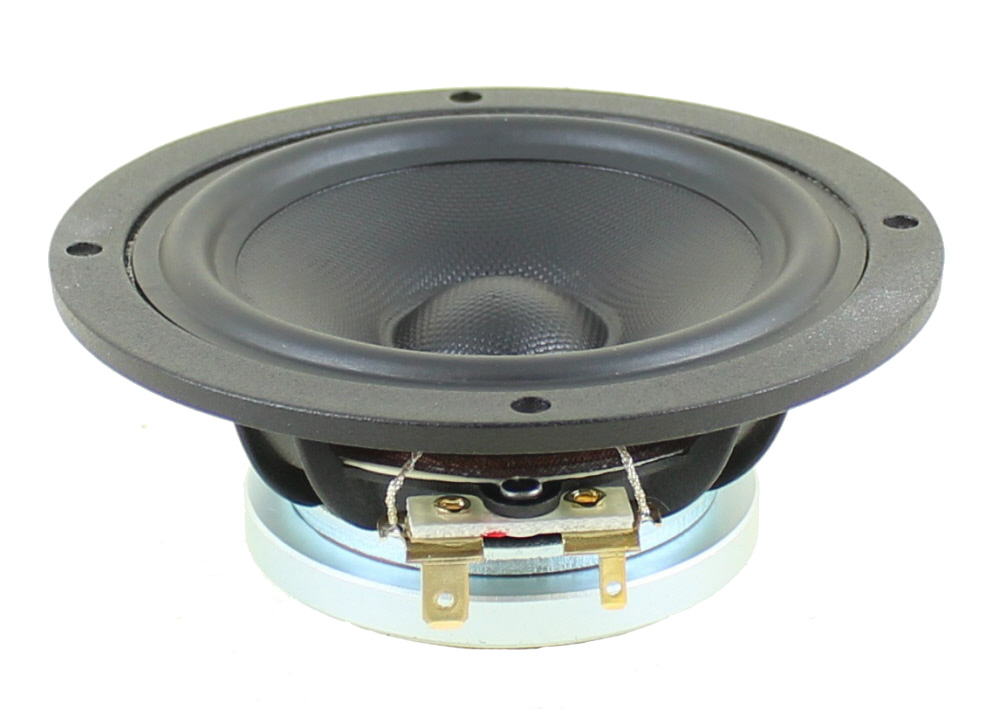

Scanspeak Discovery 10F/8424G 4" Midrange 8 ohm

Scan-Speak 10F/8424G00 Discovery 4" Midrange- 97.5mm- 8 ohm

Spec Sheet PDF

Can be used as small full range or midrange.

The Discovery series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound. With this curve you could even consider this as a full range.

A customer has informed us this is a very good replacement/upgrade for the midrange in a Thiel CS2 speaker.

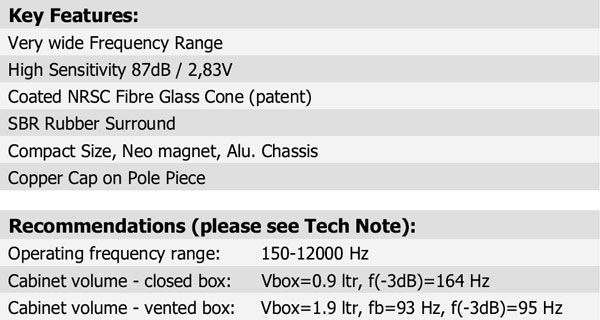

• Very wide Frequency Range
• Coated NRSC Fibre Glass Cone (patent)
• Compact Size
• Neodymium magnet
• Aluminum Chassis
• High Sensitivity 87dB / 2,83V
• SBR Rubber Surround
• Copper Cap on Pole Piece

Madisound recommends:

• In a 1.2 liter sealed box your F3 is 208Hz
• In 1.5 liters vented box with a 1" diameter vent by 3" long your F3 is 105Hz
