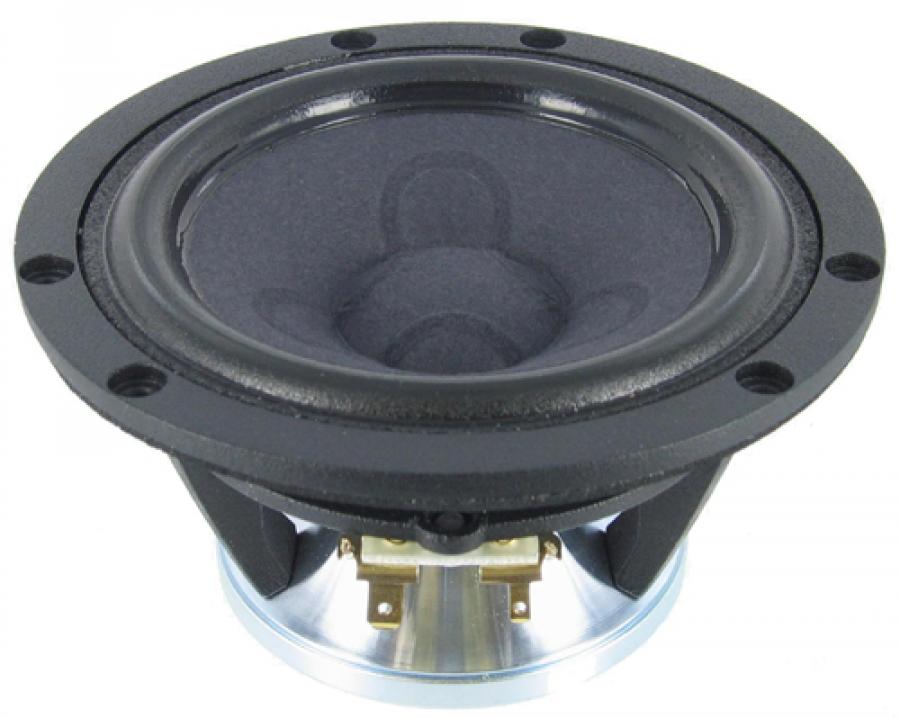

Scanspeak Illuminator 12MU/8731T-00, 4.5" Midrange

Scan-Speak 4.5" Illuminator Midrange 12MU/8731T-00- 120mm- 8 ohm

Spec Sheet PDF

"M" Midrange version

The Illuminator woofers are in every aspect unusual designs with the open construction, the extremely long linear excursion and patented under-hung SD-3 (Symmetrical Drive) neodymium motor system, which due to copper caps and its construction ensures very low distortion, adding the unique patented cones, low-loss linear suspension the result is: ”The Very Best Money Can Buy”!

The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.

Madisound recommends: a 2 liter sealed enclosure, loosely filled with wool or acousta-stuf. Your F3 in this enclosure is 185 to 200Hz, depending on the amount of stuffing.

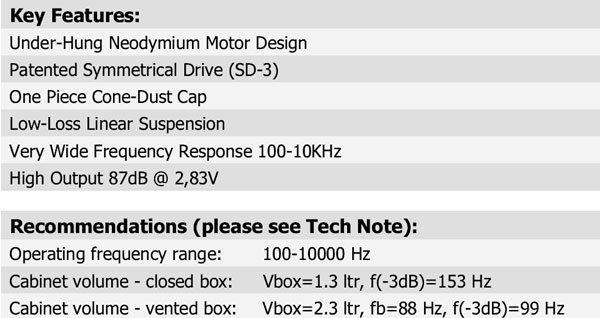

• Neodymium magnet
• Under hung motor system
• One piece cone and dust cap, full cone technology

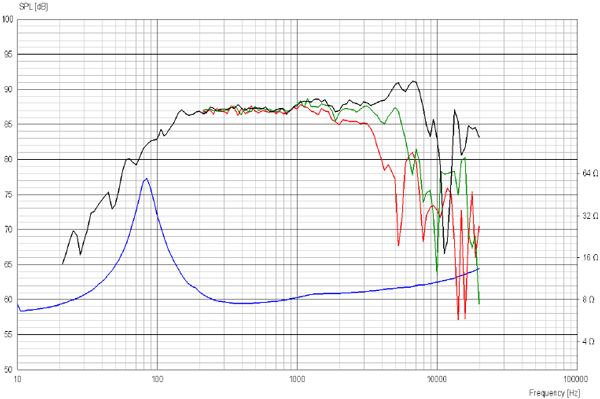

• Very Wide Frequency Response 100-10KHz
• Patented Symmetrical Drive (SD-3)
• Low-loss Linear Suspension
• Foam surround
• High Output 87dB @ 2,83V
