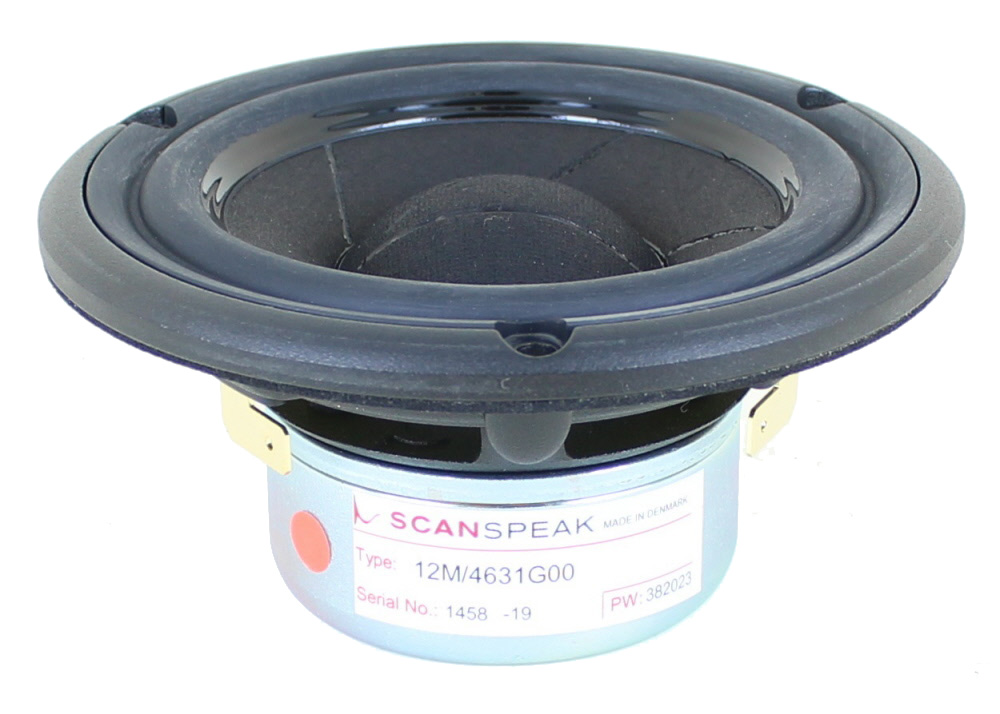

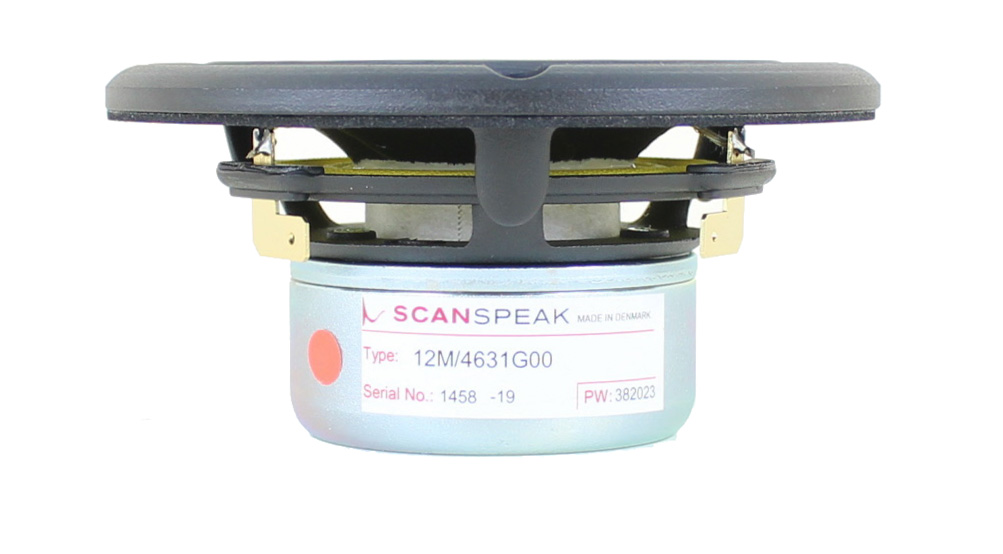

ScanSpeak Revelator 12M/4631-G00 4.5" Midrange

Scan-speak 12M/4631G00 Revelator 4.5" Midrange- 116mm- 4 ohm

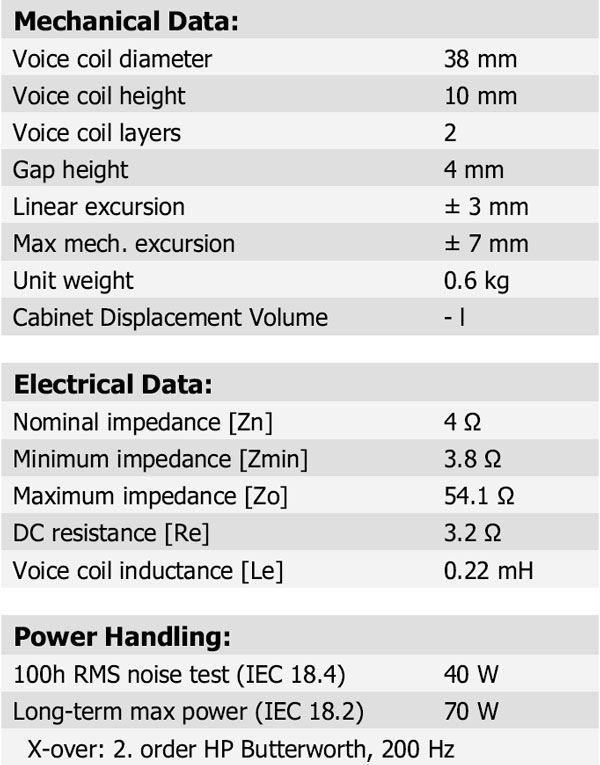

Spec Sheet PDF

"M" Midrange version

The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

The Revelator 12M-4631G00 midrange is well known for its sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. Some of the slits are used to control cone resonance and the other set of slits add rigidity. This speaker also has the new dynamic linear suspension for lower compression and higher linearity. Every facet of this driver is designed to reduce resonance in all structures. A neodymium magnet has been chosen to reduce the depth, yet increase the magnetic energy. The short field length of a neodymium magnet also allows this driver to by used for A/V.

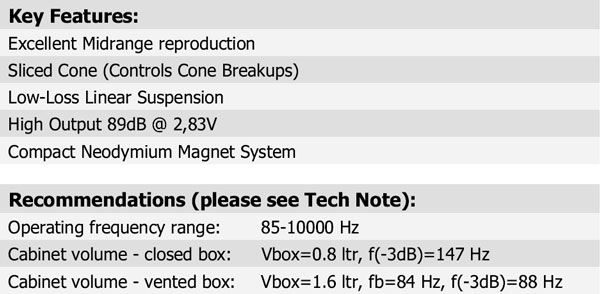

• Excellent Midrange reproduction
• Low-Loss Linear Suspension

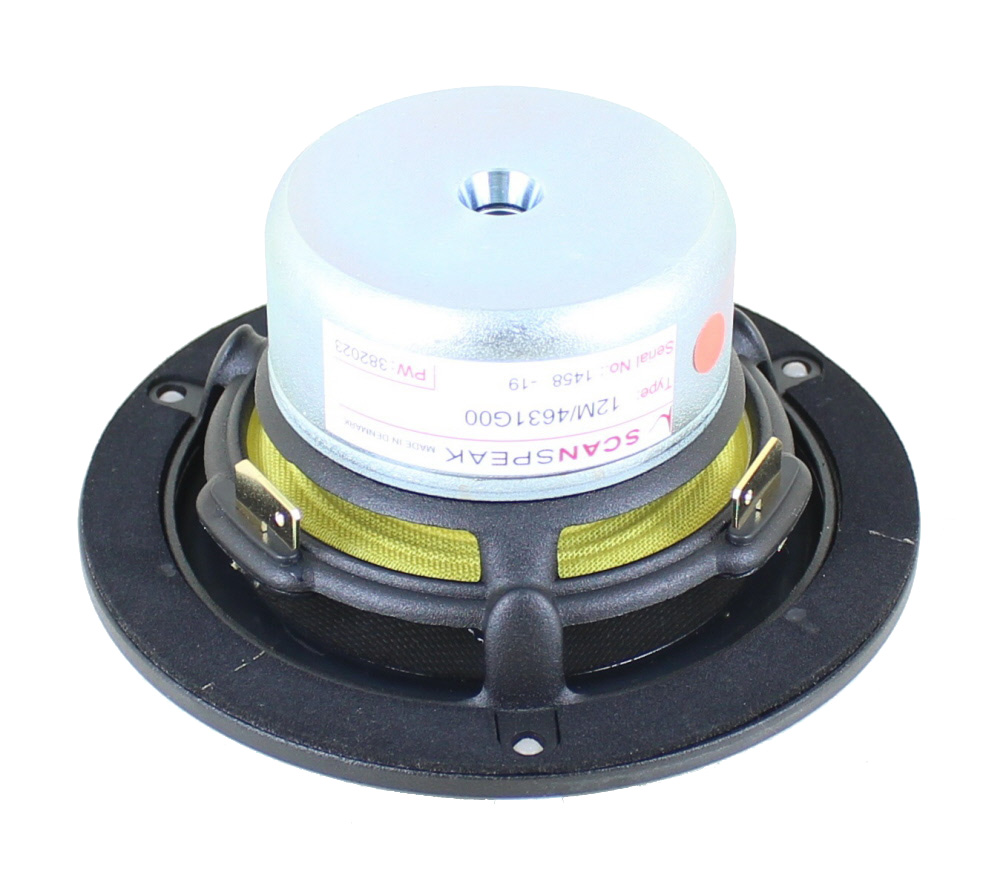

• Compact Neodymium Magnet System

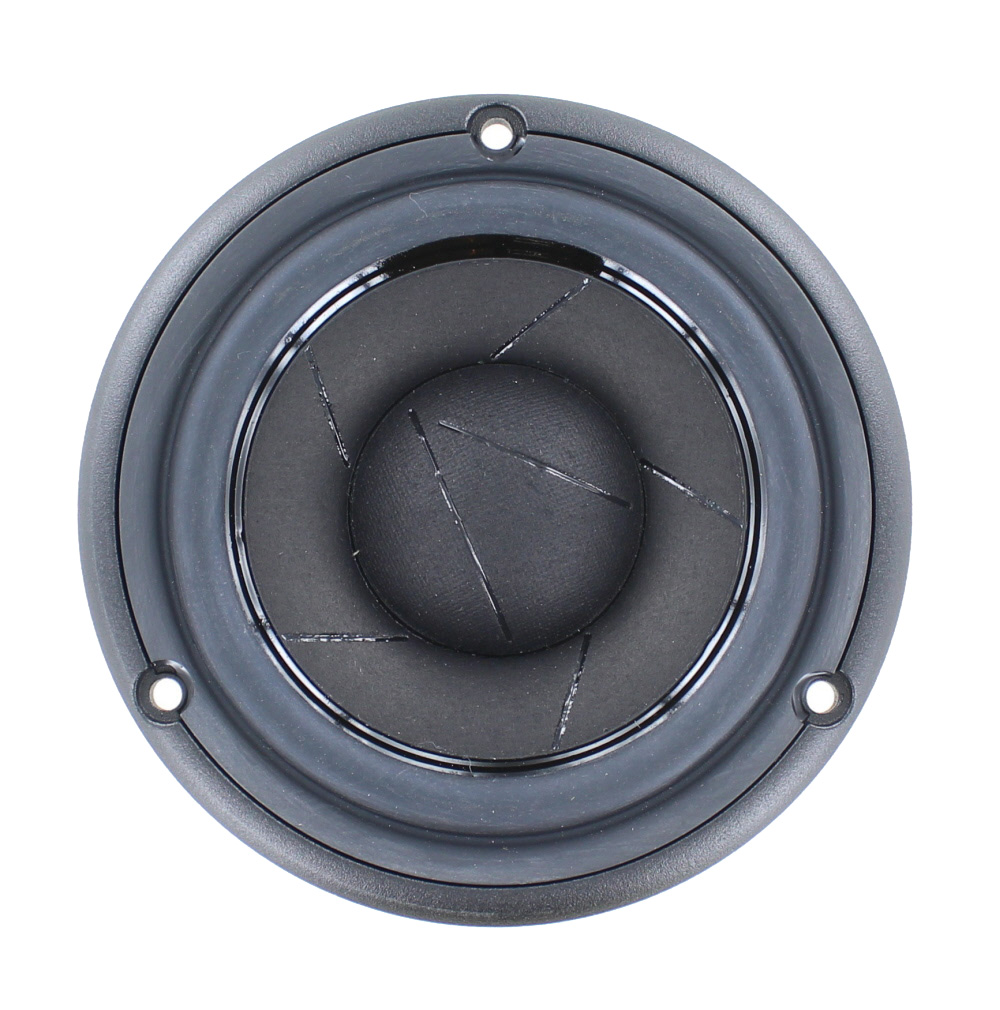

• Sliced Cone (Controls Cone Breakups)
• High Output 89dB @ 2,83V
