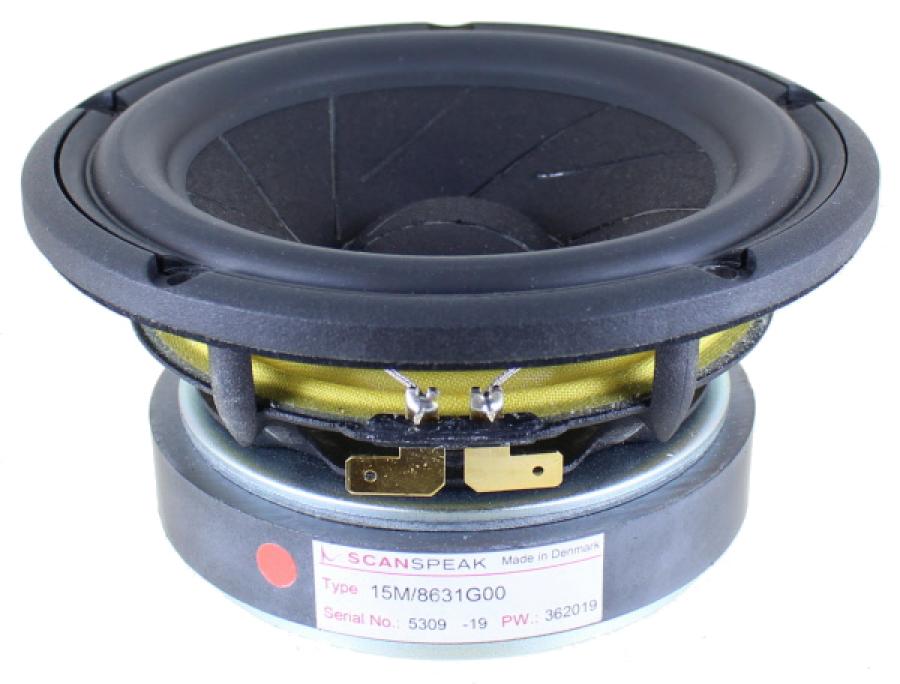

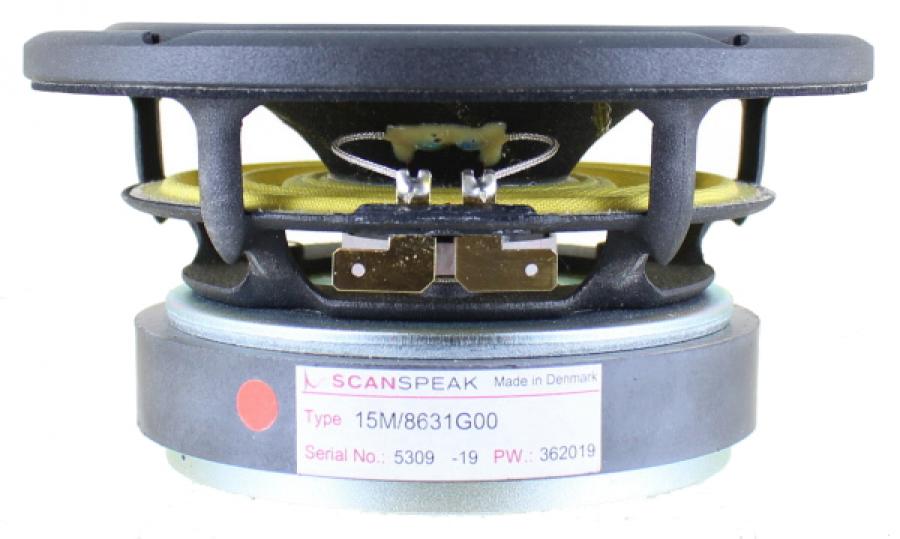

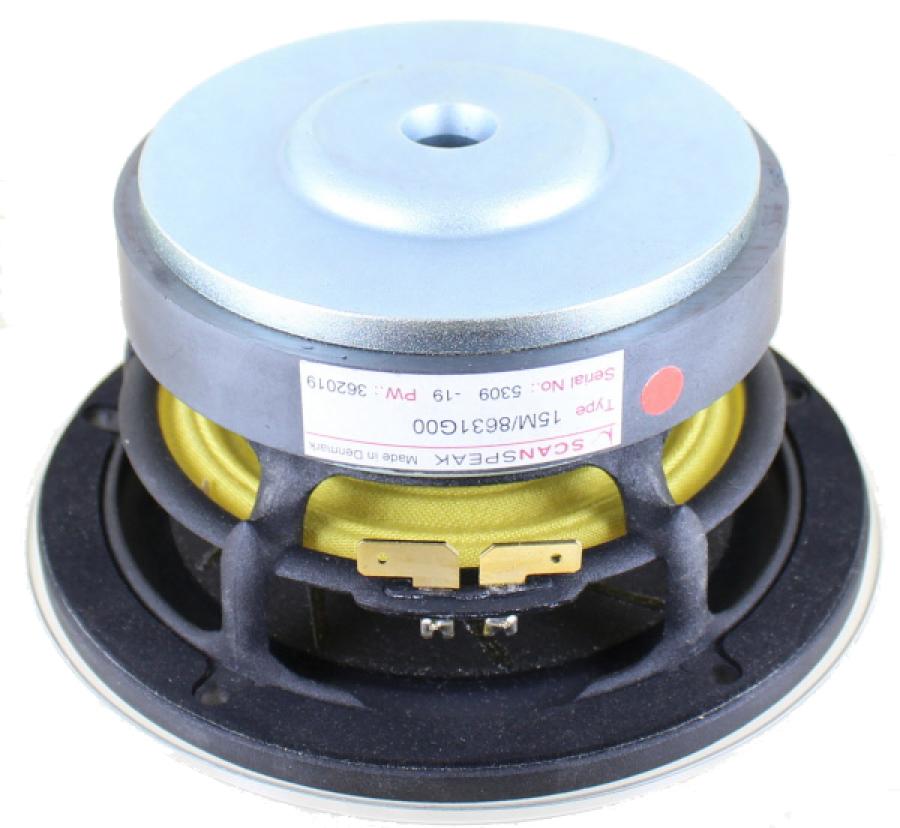

Scanspeak 15M/8631G00 Revelator 5.5" Midrange

Scanspeak 15M/8631G00 Revelator 5.5" Paper Cone Midrange -148mm- 8 ohm

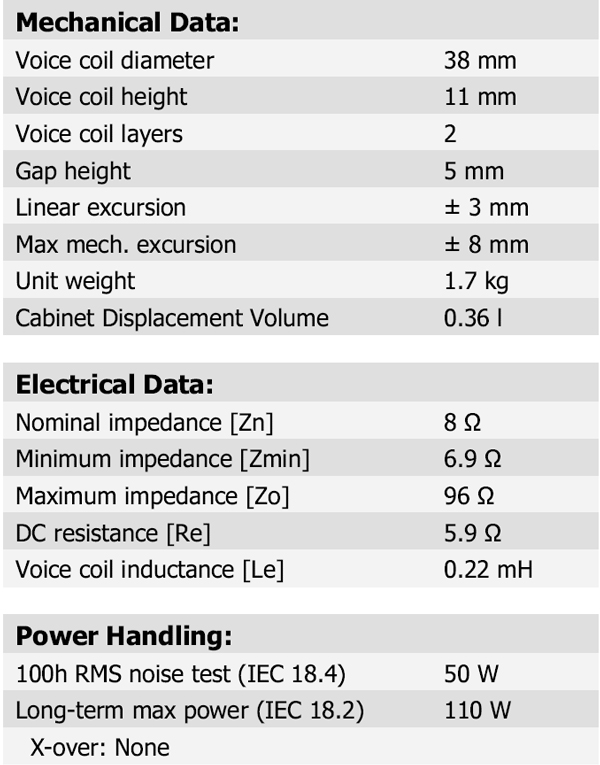

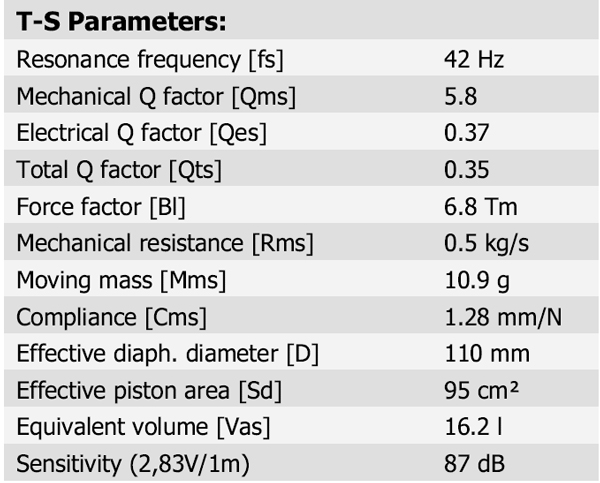

15M/8631G00 Datasheet PDF

"M" Midrange

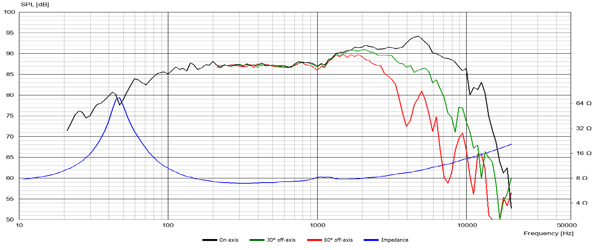

This Revelator midrange is known for its smooth and natural sound reproduction with sliced paper cone technology.The slices are filled with damping glue which dramatically reduces break-up modes in the diaphragm. In combination with the Scan-Speak low loss linear suspension and the patented symmetrical Drive SD-1 it represents a breakthrough in midrange clarity and overall smooth frequency response characteristics.

The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

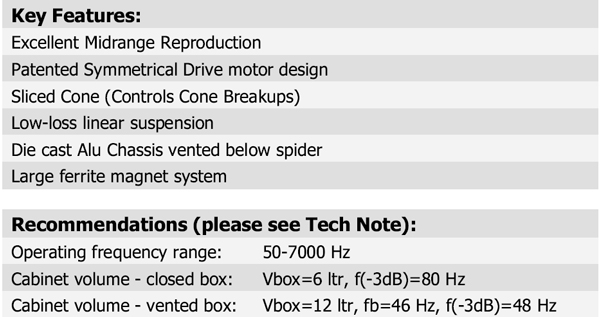

• Patented Symmetrical Drive motor system
• Low loss, low damping linear suspension

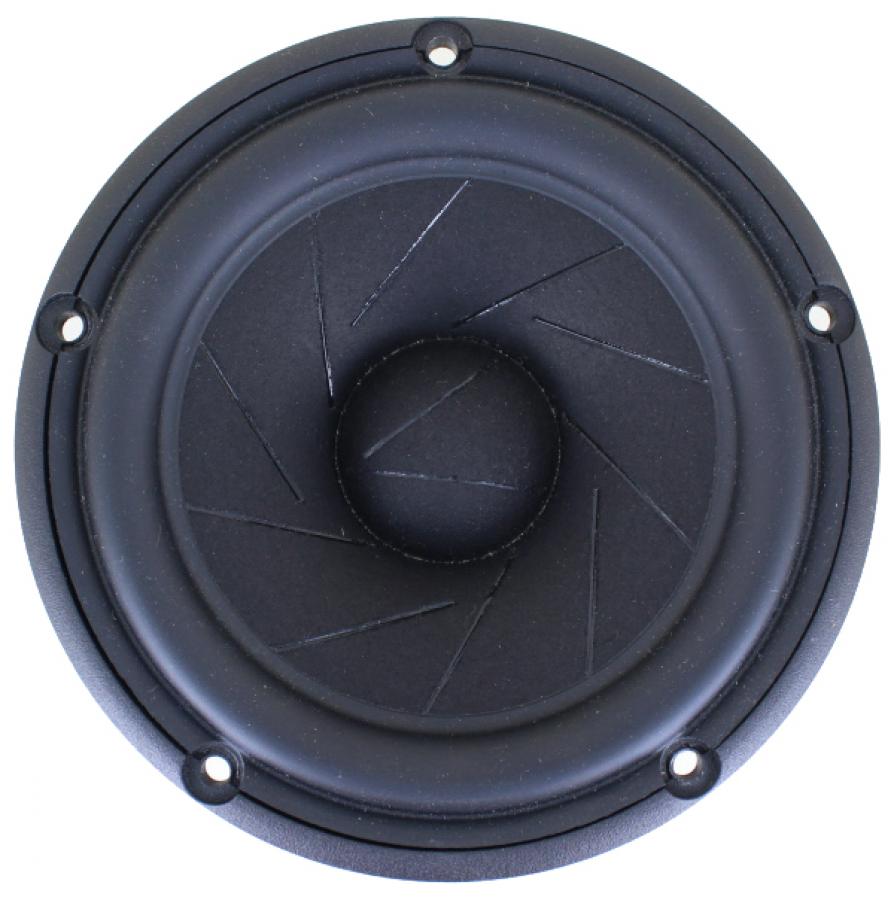

• Sliced cone technology
• Die cast Alu chassis vented below spider
• Large ferrite magnet system
