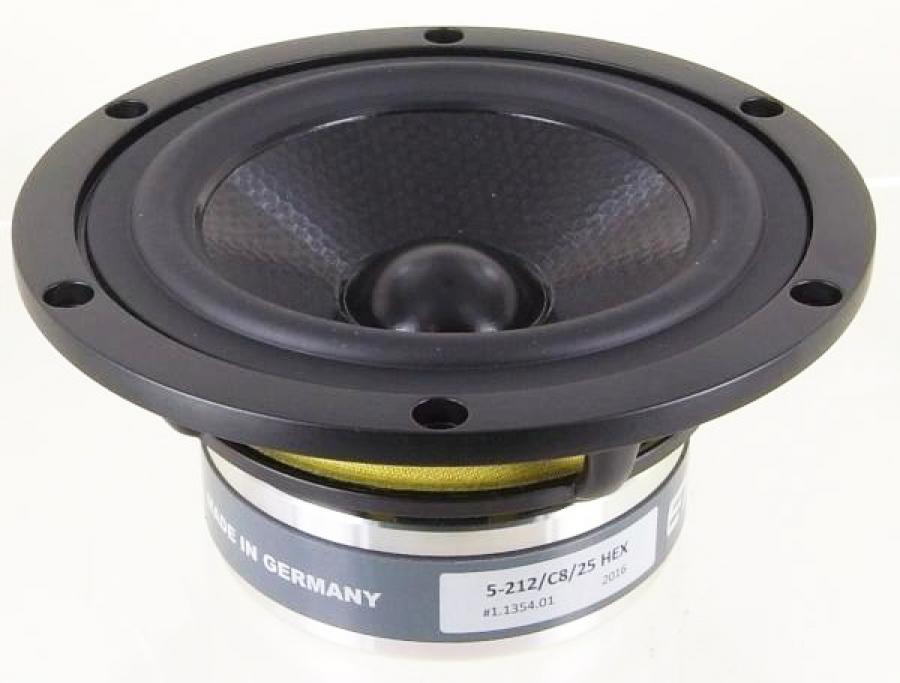

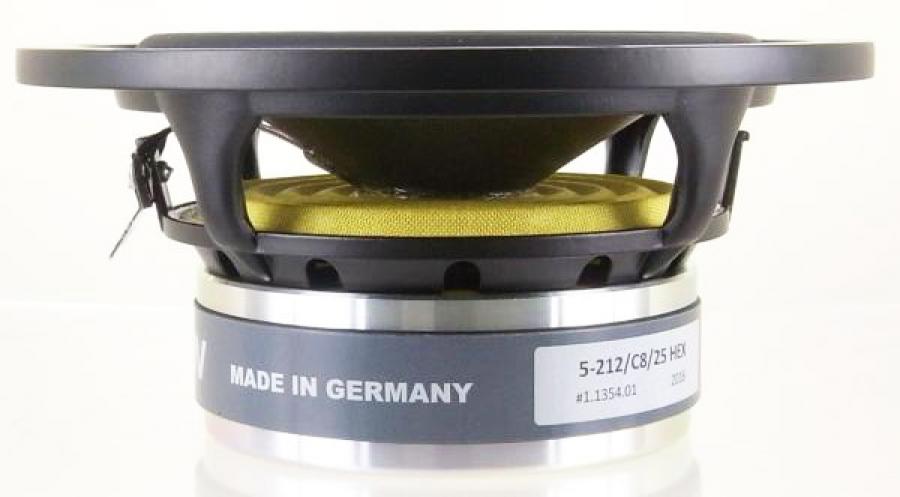

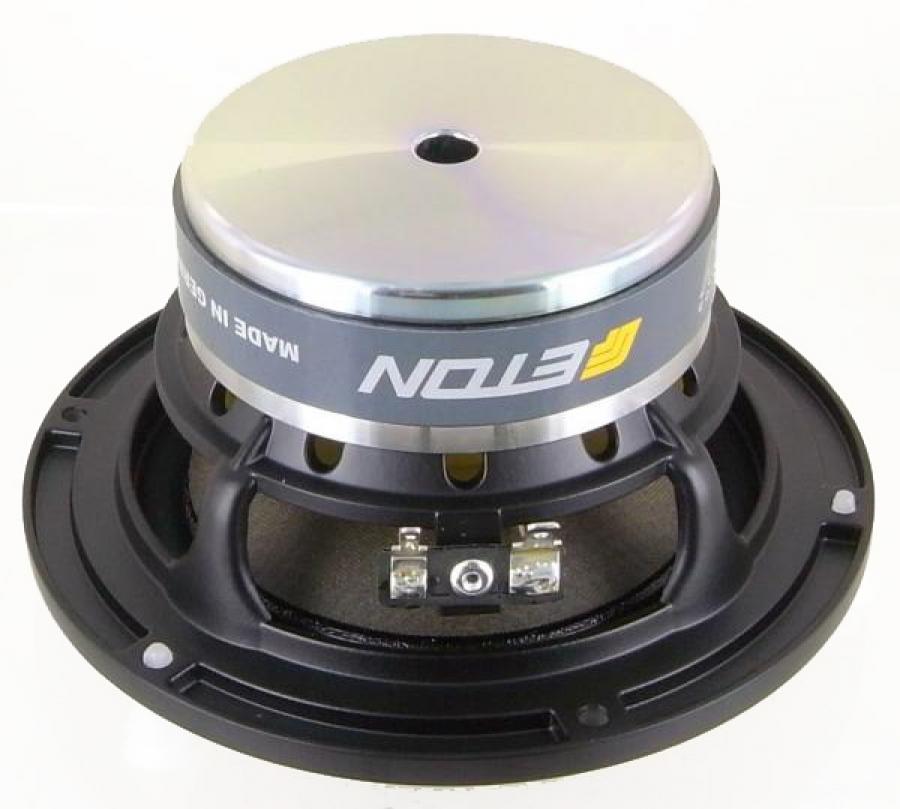

Eton 5-212/C8/25 HEX Symphony II 5" Bass-Midrange

Eton 5-212/C8/25 HEX Symphony II 5" "Honeycomb" Fiber Cone Bass-Midrange- 148mm- 8 ohm

Spec Sheet PDF

The Hex Symphony II Series is the logical development of our successful patented Symphony I Series. All of ETON’s expertise has been poured into the development of the Symphony Series. For the first time, the specially patented production process enabled the three-layered sandwich type of construction in combination with aramid fibres and their hexagonal internal structure. Maximum rigidity and excellent internal absorbing action are therefore guaranteed. The manually applied coating also supports neutral cone behaviour and provides the surface with visual depth. The Symphony II midrange drivers and woofers create unique sound spectrums typical of Hex. The sound features are harmonic, smooth reflections of the overtones and distinctive, light midranges. A precise and powerful bass is created in the woofer range. All Symphony II chassis are characterized by a high degree of musical imaging and an impressive soundscape. The ferrite magnet geometry’s special design makes the magnetic field almost perfectly symmetrical. Multiple ventilation and the flow-supporting cast basket guarantees minimum compression effects at large amplitudes.

• 3 Layer Hexacone sandwich cone
• Cast frame
• Rubber surround
• Kapton former with copper wire
• Warm and detailed sound

Possible Box Tunings

• 2.5 to 3 liters (0.1 cubic feet) for 3dB down of about 105Hz
• 7 liters (0.25 cubic feet) with 1.5" diameter vent by 5" long for 3dB down about about 57Hz
