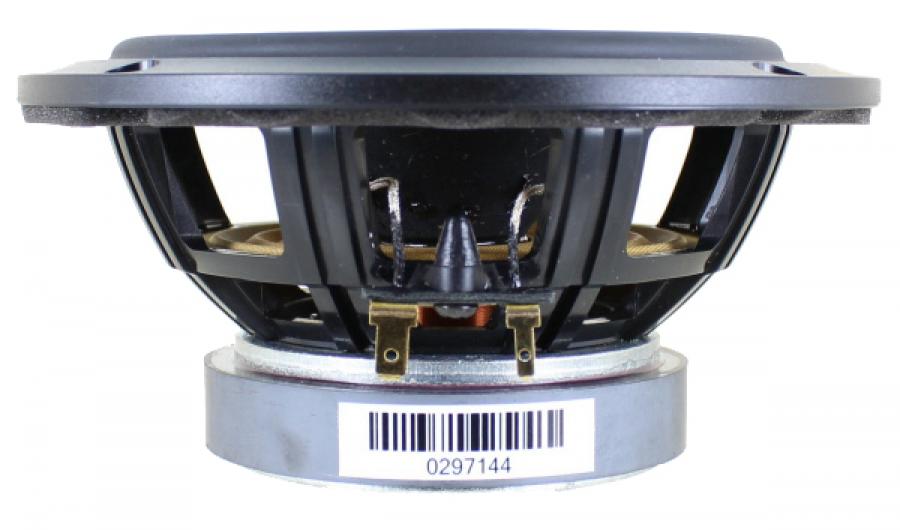

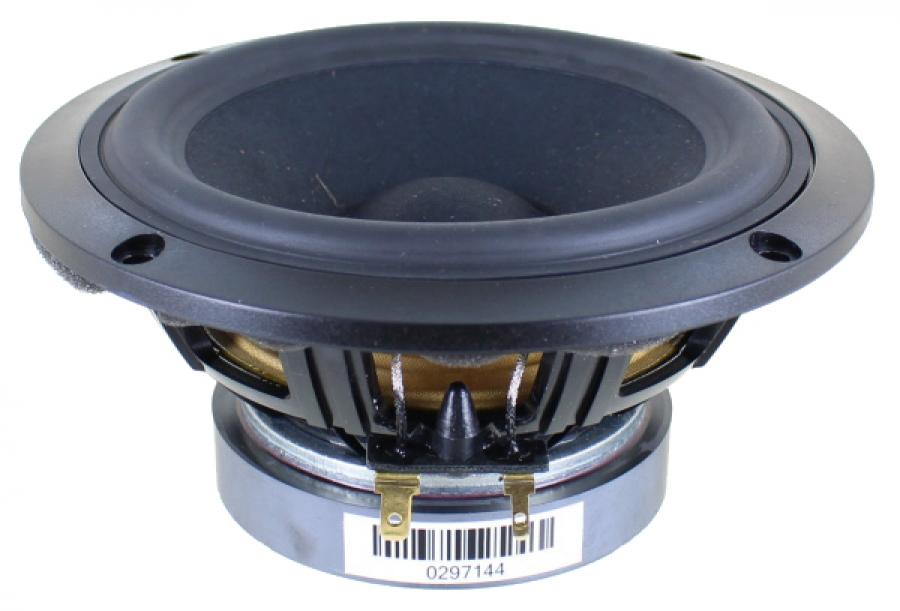

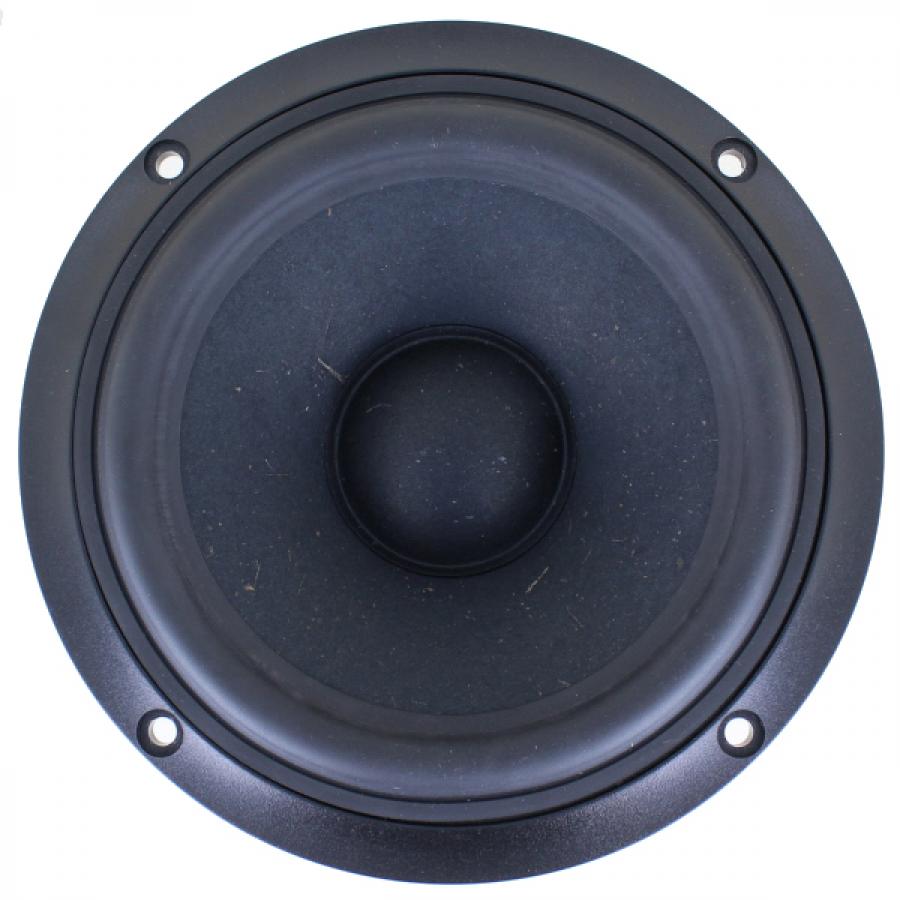

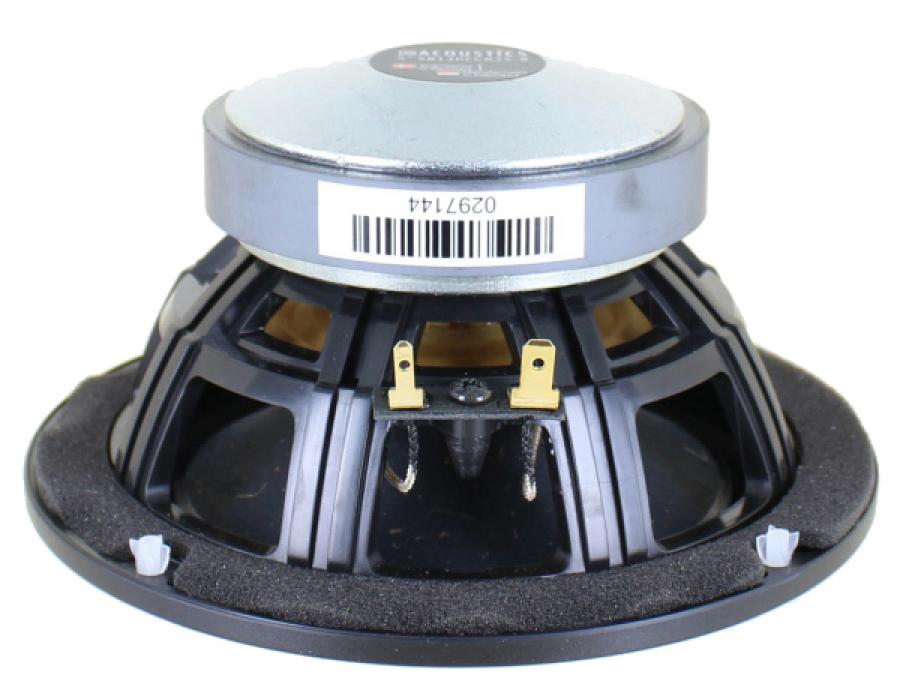

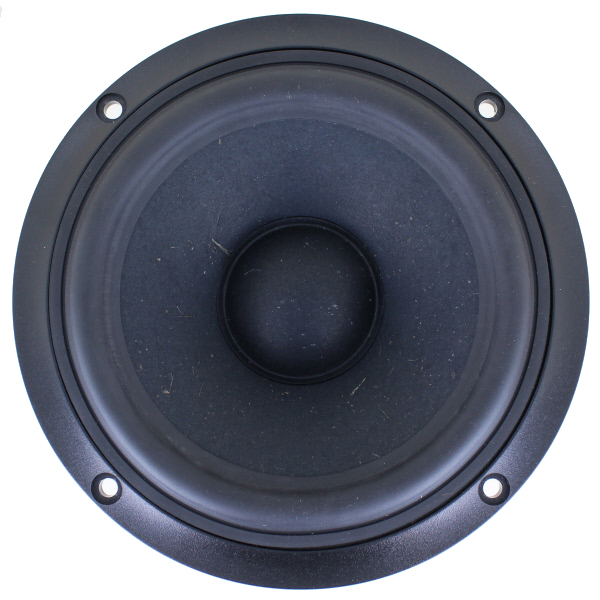

SB Acoustics SB13PFCR25-08 5" Paper Cone Woofer 8 ohm

SB Acoustics SB13PFCR25-08 5" Composite Paper Cone Woofer- ROUND- 150mm - 8 ohm

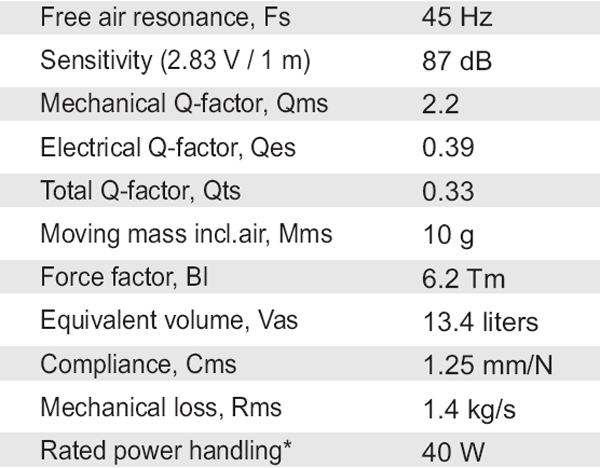

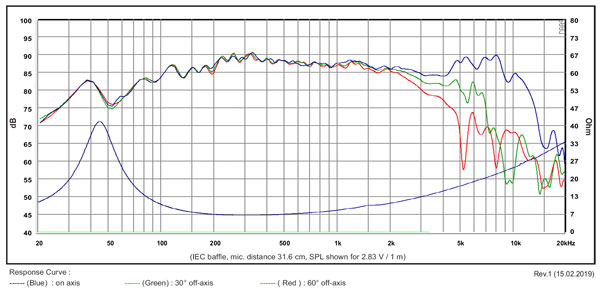

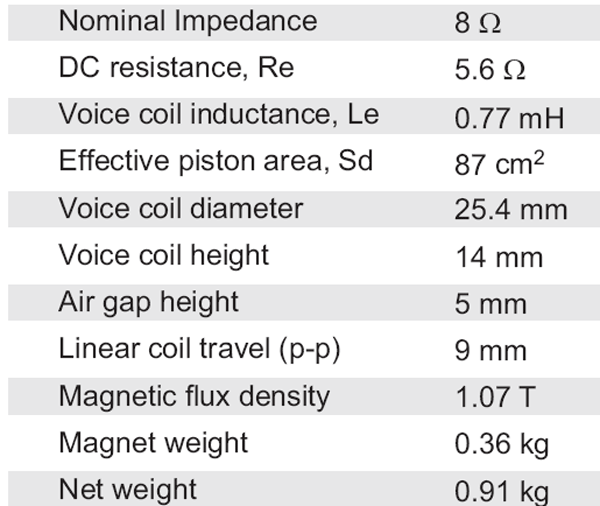

Spec Sheet PDF

Low Qts, would be good for small ported 2-way or mini-monitor.

• Non-resonant Papyrus fiber cone
• Low damping SBR surround
• Polymer chassis
• Ventilated spider
• Gold plated terminals
• Gasket

Suggested box sizes:

0.15 cubic feet (4.25 liters sealed with 25% filling for an F3 of 110Hz

0.25 cubic feet (7 liters) with 1.5" diameter vent by 5" long for an F3 of 58Hz

0.35 cubic feet (9.9 liters) with 1.5" diameter vent by 4.5" long for an F3 of 50Hz
