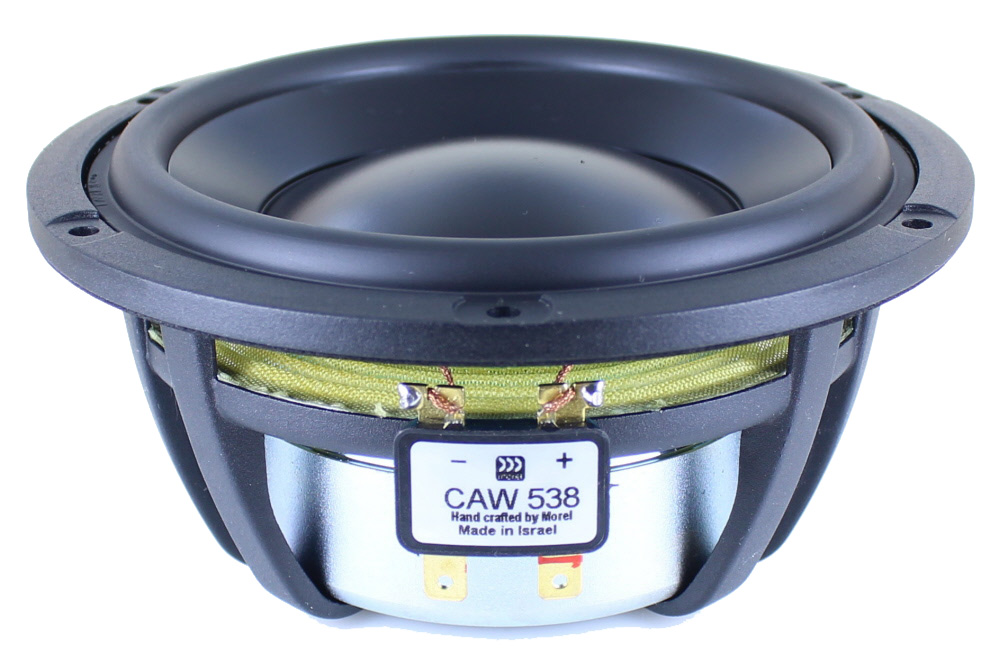

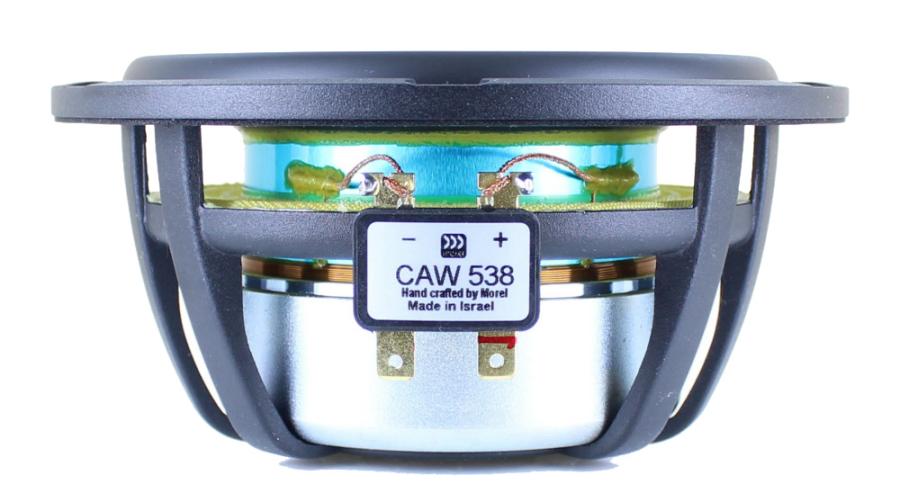

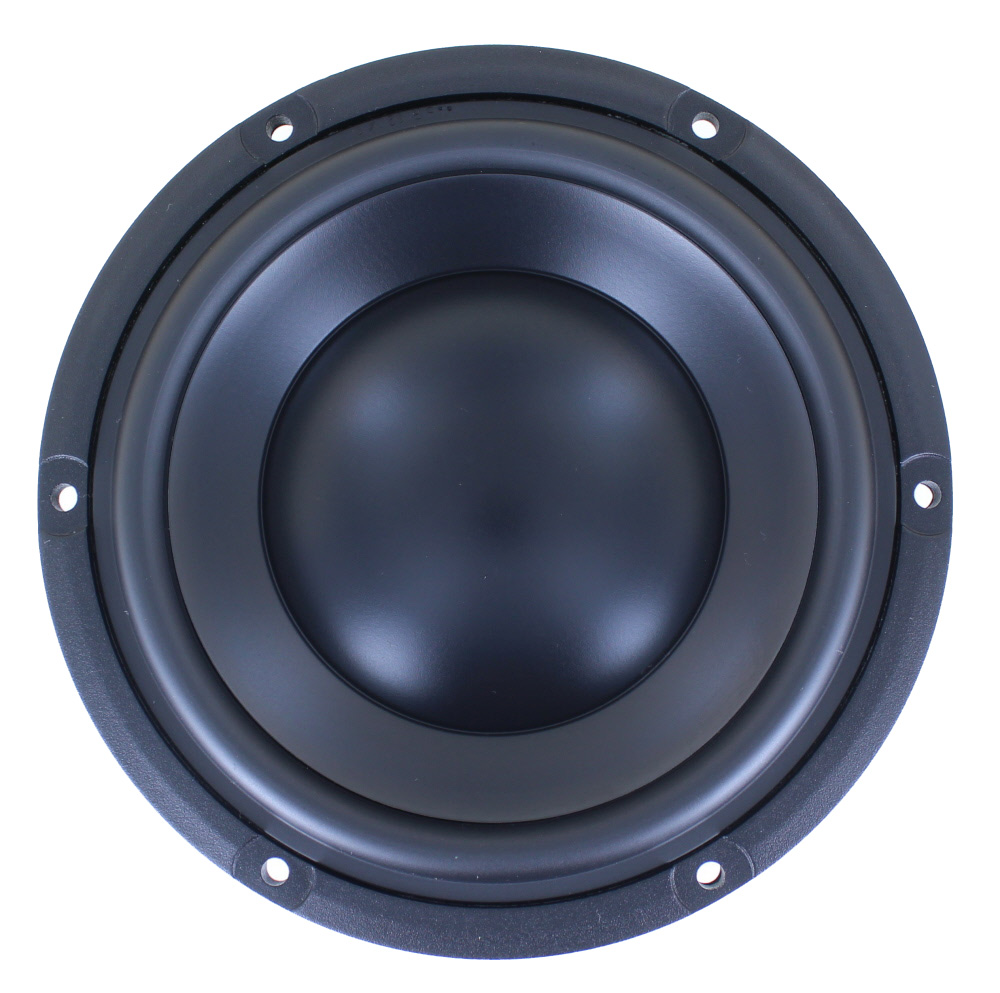

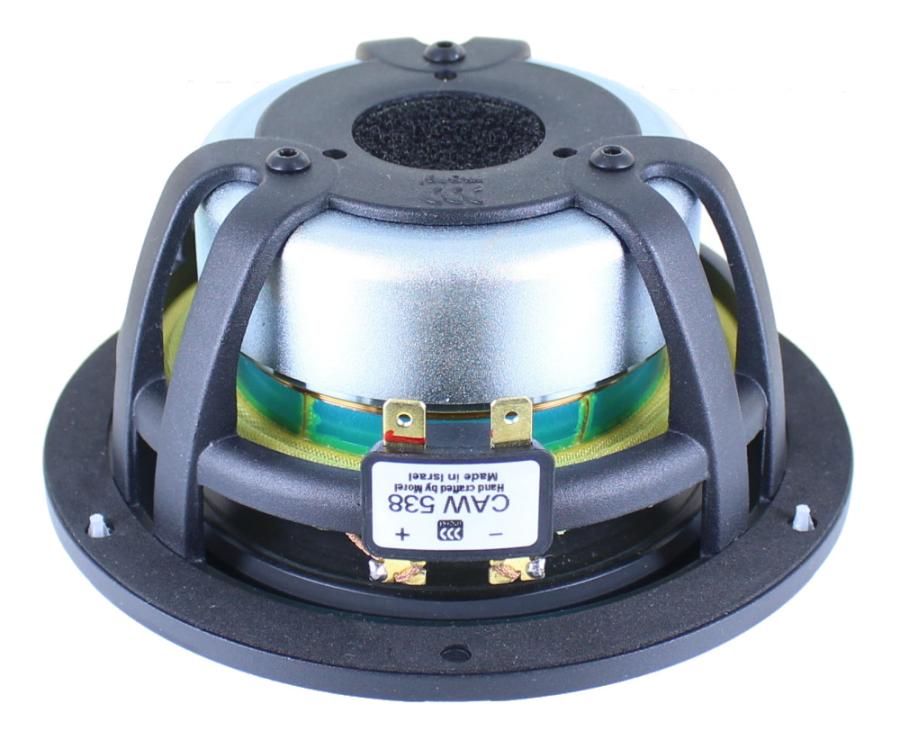

Morel CAW538 5" Classic Advanced Woofer

Morel CAW538 5" Woofer Classic Advanced Series- 143mm- 8 ohm

This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, reinforced ferrite magnet resulting in higher power handling, low resonance frequency, and low Qts good for bass reflex.

Spec sheet: Morel CAW538 Classic Advanced Woofer

• Uniflow aluminum diecast chassis
• High flux double ferrite magnet system
• 3" Hexatech aluminum voice coil
• High power handling
• Shallow profile Damped Polymer Composite cone
• Frequency response 50Hz to 3500Hz

Suggested box sizes:

• 0.2 cubic foot vented box with 1" diameter vent by 4" long for F3 of 65Hz.
• 0.15 cubic foot sealed box for an F3 of 100Hz.
