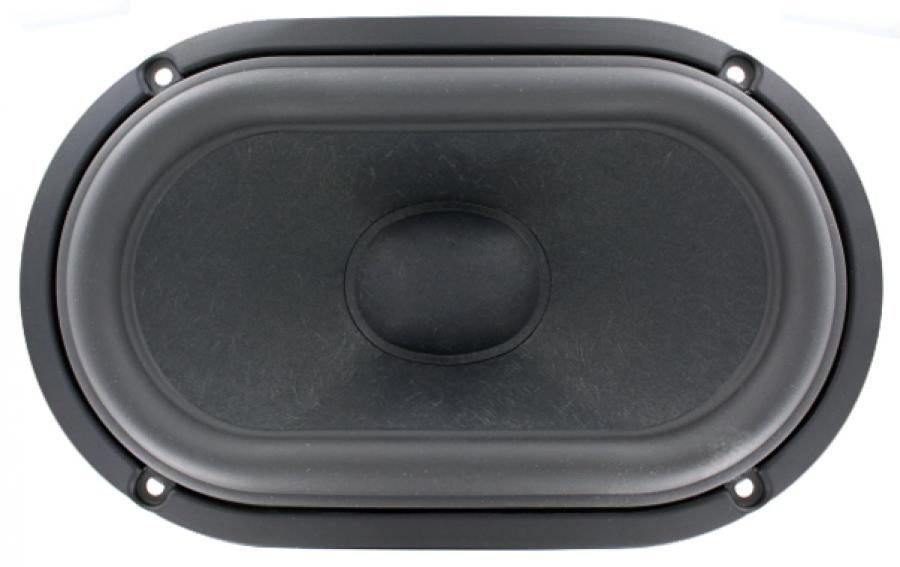

SB Acoustics SB15SFCR39-8 5x8" Paper Cone Woofer

SB Acoustics SB15SFCR39-8 5x8" Oval Paper Cone Woofer- 253mm- 8 ohm

Spec Sheet PDF

High-quality hard paper cone and advanced motor features. Unique oval shape. Matching passive radiator available. Some sample boxes to try below. Could be used for autosound/ Car Audio.

• Racetrack design
• Hard paper cone (made in-house)
• Optimized motor system
• Non-conductive reinforced vented coil former
• Symmetric suspension
• Low damping rubber surround
• Long life silver lead wires
• Vented chassis

Sample Boxes:

• 0.5 - 0.7 cf sealed for F3 of 58Hz
• 0.7 cf with 2" dia. x 7" long port for F3 of 42Hz
• 1.0 cf with 2" dia. x 6" long port for F3 of 39Hz

w/ matching passive radiator

• 0.6 cf for F3 of 49Hz
• 0.8 cf for F3 of 45Hz
• 1.0 cf for F3 of 43Hz
• 1.2 cf for F3 of 42Hz
