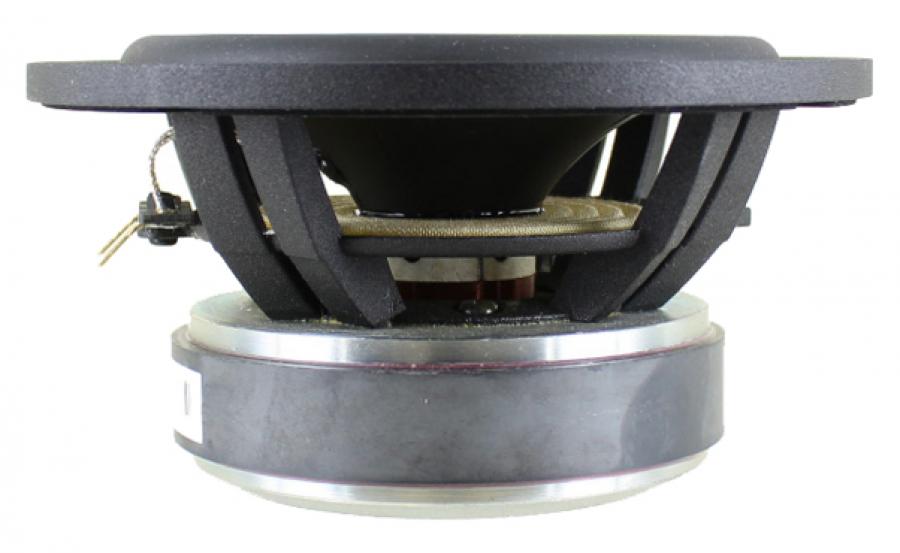

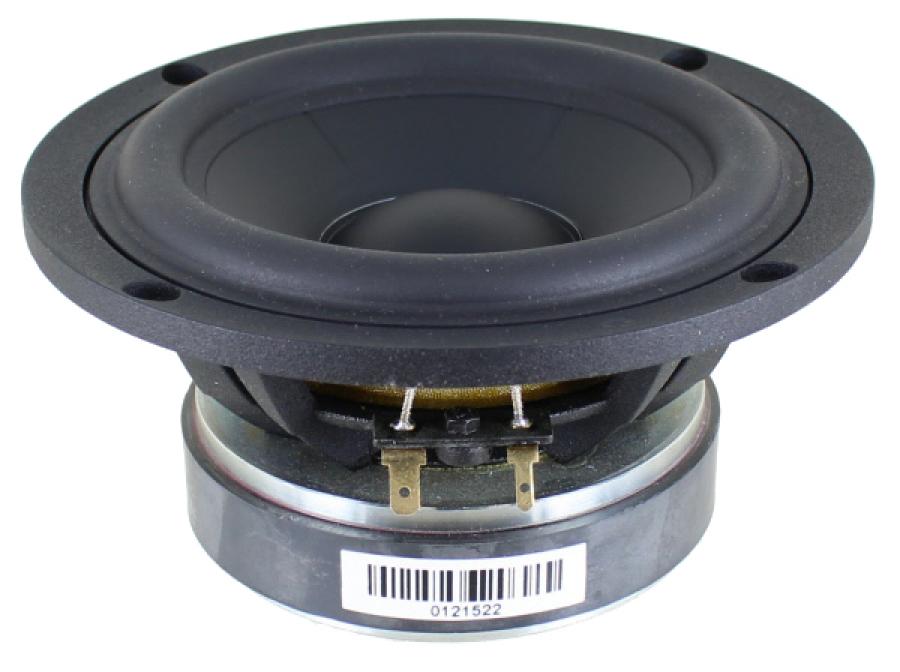

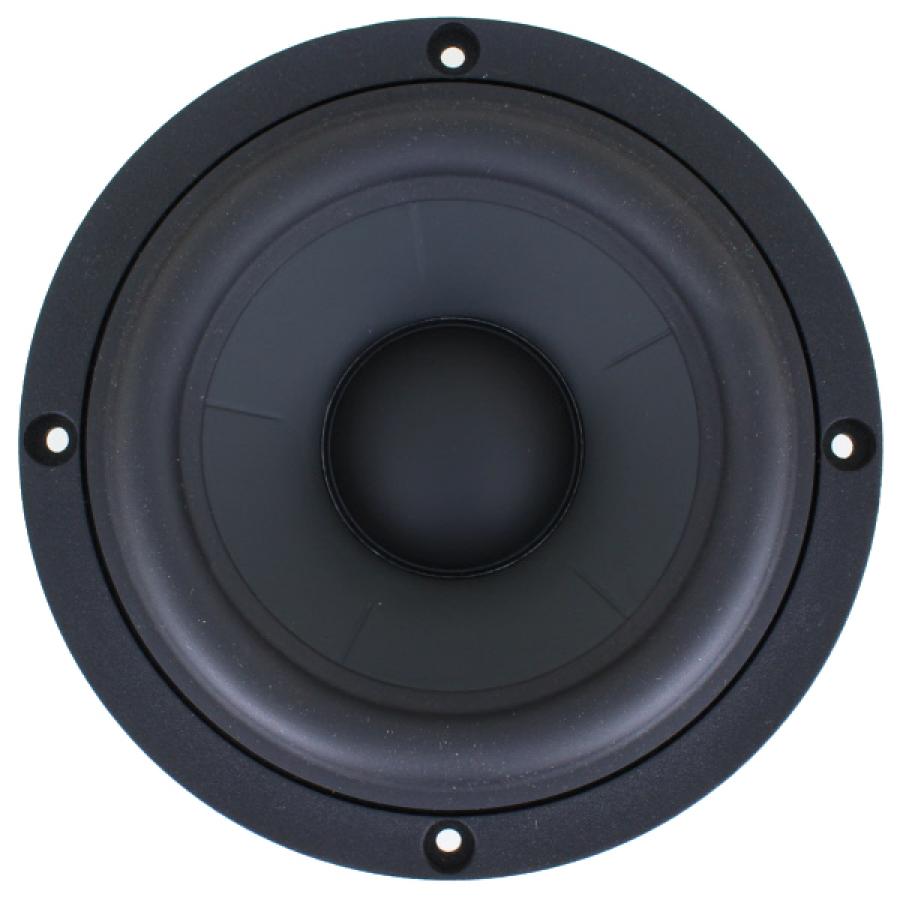

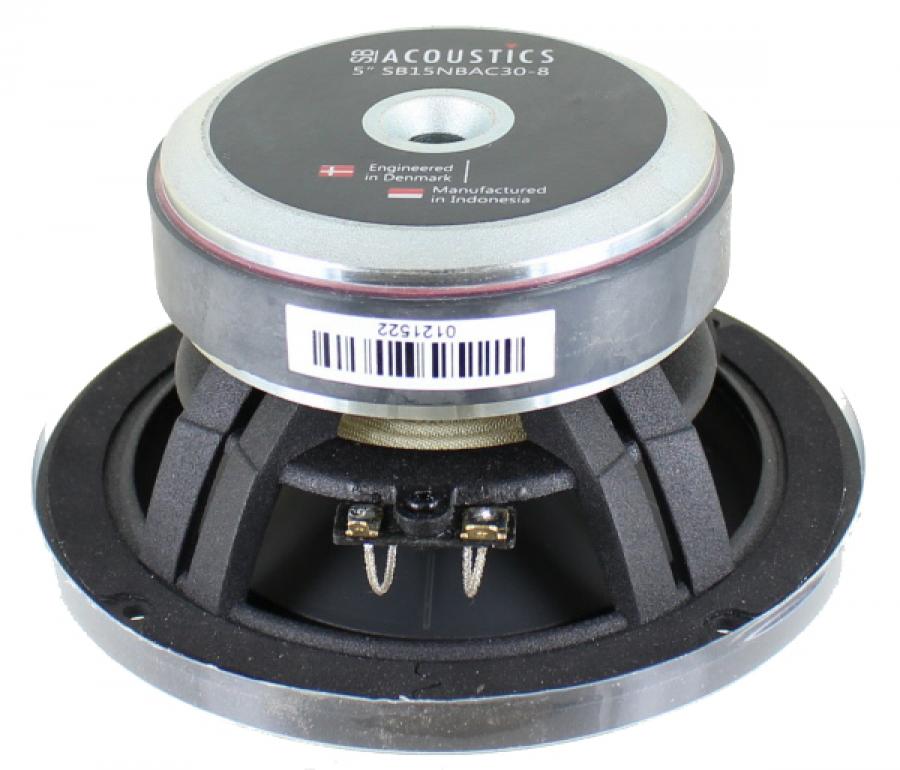

SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

Manufacturer: SB Acoustics

1 Customer Review(s)

Product ID: SB15NBAC30-8

$86.50

Add to wish list E-mail to a friend

Overview

SB15NBAC30-8 5" Black Aluminum Cone Mid-bass- 150mm- 8 ohm

SB15NBAC30-8 5" Black Aluminum Cone Mid-bass- 150mm- 8 ohm

Spec Sheet PDF

Low Q, looks good for small vented box (see below). Crisp and detailed midrange. Could be used 2way with low Fs tweeter. New Black Aluminum cone from SB. The cone is crimped in four spots for additional stiffness. Smooth upper midrange especially off-axis.

Vented cast aluminum chassis for optimum strength and low compression
Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
Soft low damping rubber surround for improved transient response
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Suggested Alignments

Sealed box of 0.2 cubic foot with 3dB down of 79Hz

Vented box of 0.35 cubic foot with 1.5" diameter vent by 6" long for f3 of 46Hz

Vented box of 0.45 cubic foot with 1.5" diameter vent by 5" long for f3 of 42Hz

Two SB15BNAC30-8 in 0.7 cubic foot with 2" diameter vent by 7" long for f3 of 45Hz, 93dB at 2.83V

1 Customer Review(s)

Very nice small mid-bass

Reviewed by Tom_S on 05/08/2021

You gotta love it when you find something that performs way beyond your expectations. These SB mid-bass drivers do just that. I was quite surprised at the solid low end these can produce in 14 liters or a little less. The mids are great too. I've heard the ceramic version and it's an equally impressive driver that delivers on the slight uptick in price.
