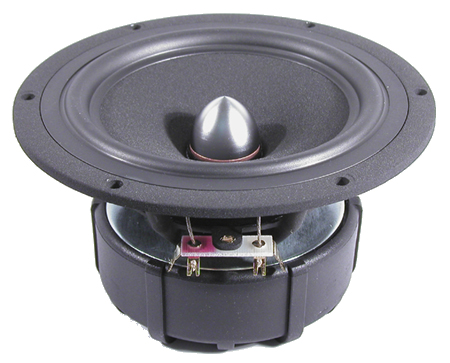

SEAS Excel W15LY-001 (E0041) 5.5" Nextel Cone Woofer

SEAS Excel W15LY-001 (E0041) 5.5" Nextel Cone Woofer- 146mm - 8 ohm

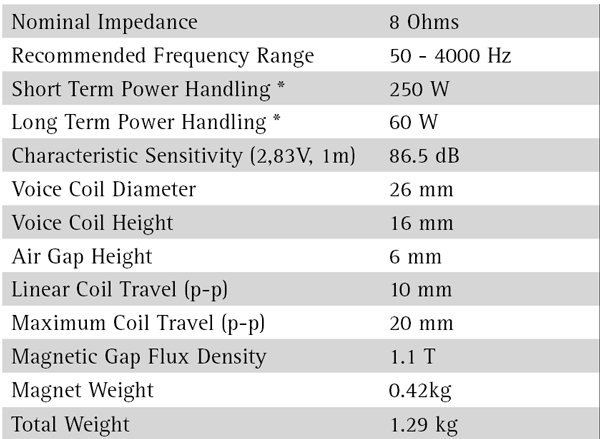

Spec Sheet PDF

Paper cone with Nextel coating and phase plug for smooth frequency response and low distortion. High Qts good for small sealed box. For those not familiar, Nextel is a trademarked range of coatings from German company Mankiewicz Gebr. & Co., famous for its matte, suede-like results, extremely popular in electronics and speaker cabinet finishes used by many European brands.

An adaptive rubber surround provides an ideal match to the cone over the total frequency range. A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system, together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Suggested Box Alignments

Sealed box 0.15 cubic feet for F3 of 100Hz. 50% filling

Vented box 0.5 cubic feet for F3 of 50Hz. 1.5" diameter vent by 4" long
