Morel SCW636 6" Supreme Carbon Fiber Cone Woofer

Morel Supreme Coppersleeve Woofer SCW636 6" Woofer- 160mm -8 ohm

Morel's SCW636 Supreme Coppersleeve Woofer neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance.

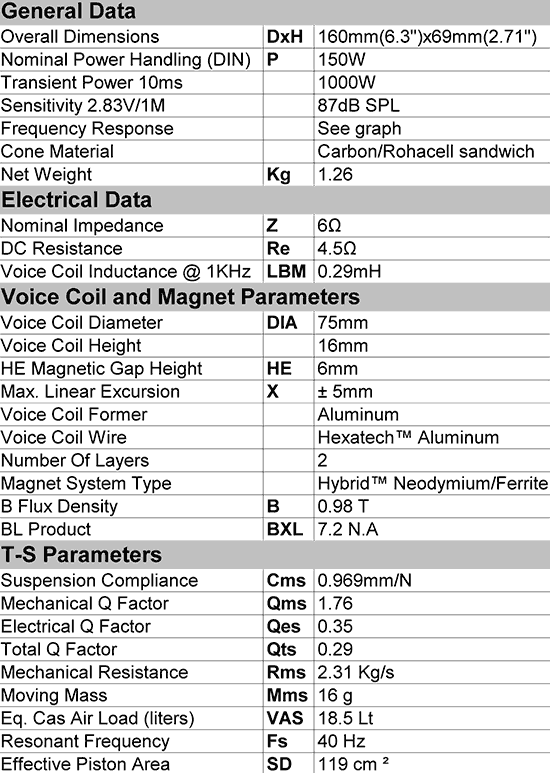

Spec sheet: Morel SCW636 Supreme Woofer

• 3 Layer Cone: Carbon Fiber / Rohacell Foam / Carbon Fiber
• Copper sleeve on pole piece
• Uniflow aluminum die cast frame
• 3" large Hexatech Aluminum Voice Coil
• Neodymium / Ferrite Hybrid Magnet System

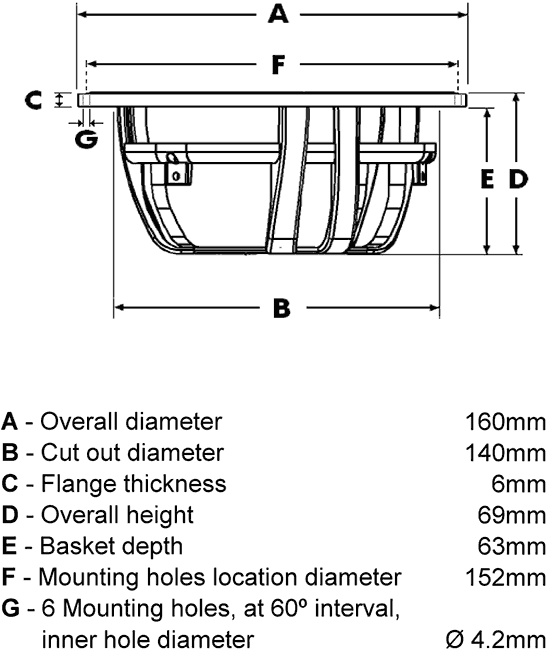

• 160mm flange diameter (6.3")
• 140mm cut out diameter (5.5")
• 63m depth (2.5")

Recommended Enclosures:

• For vented box of 0.25 cubic feet, 1.5" diameter vent by 6" long, F3 of 63Hz
• For vented box of 0.40 cubic feet, 2" diameter vent by 6.75" long, F3 of 51Hz
• For sealed box of 0.1 cubic feet, F3 of 115Hz
